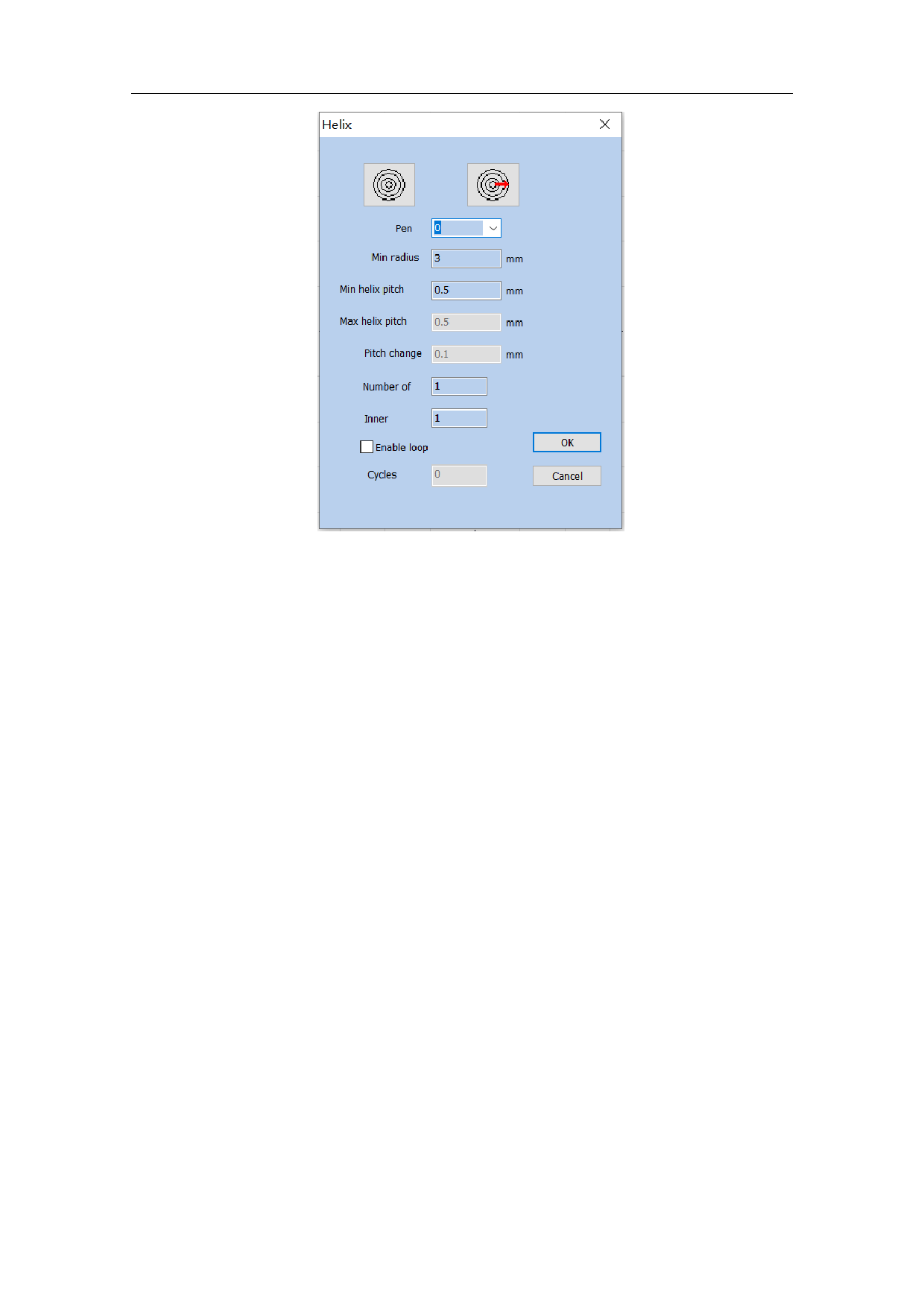

Fig. 4-51 Helical Line Setting Dialog Box
Helix
OK
Close
Pen Number
3 Minimum Radius 3 mm
0.5 Minimum Helix Pitch 0.5mm
0.5 Maximum Helix Pitch 0.5mm
0.1 Pitch Variation 0.1mm
Number of Outer Boundary Rings
Number of Inner Boundary Rings
Enabling Cycle
Number of Cycles
