Advance
Fig.4-31
Text Object that Enables Split Strings to Modify the Specified Name
Mark Self
10.000mm Enable Fixed Text Width 10.000mm
Add
Delete
Modify
OK
Close

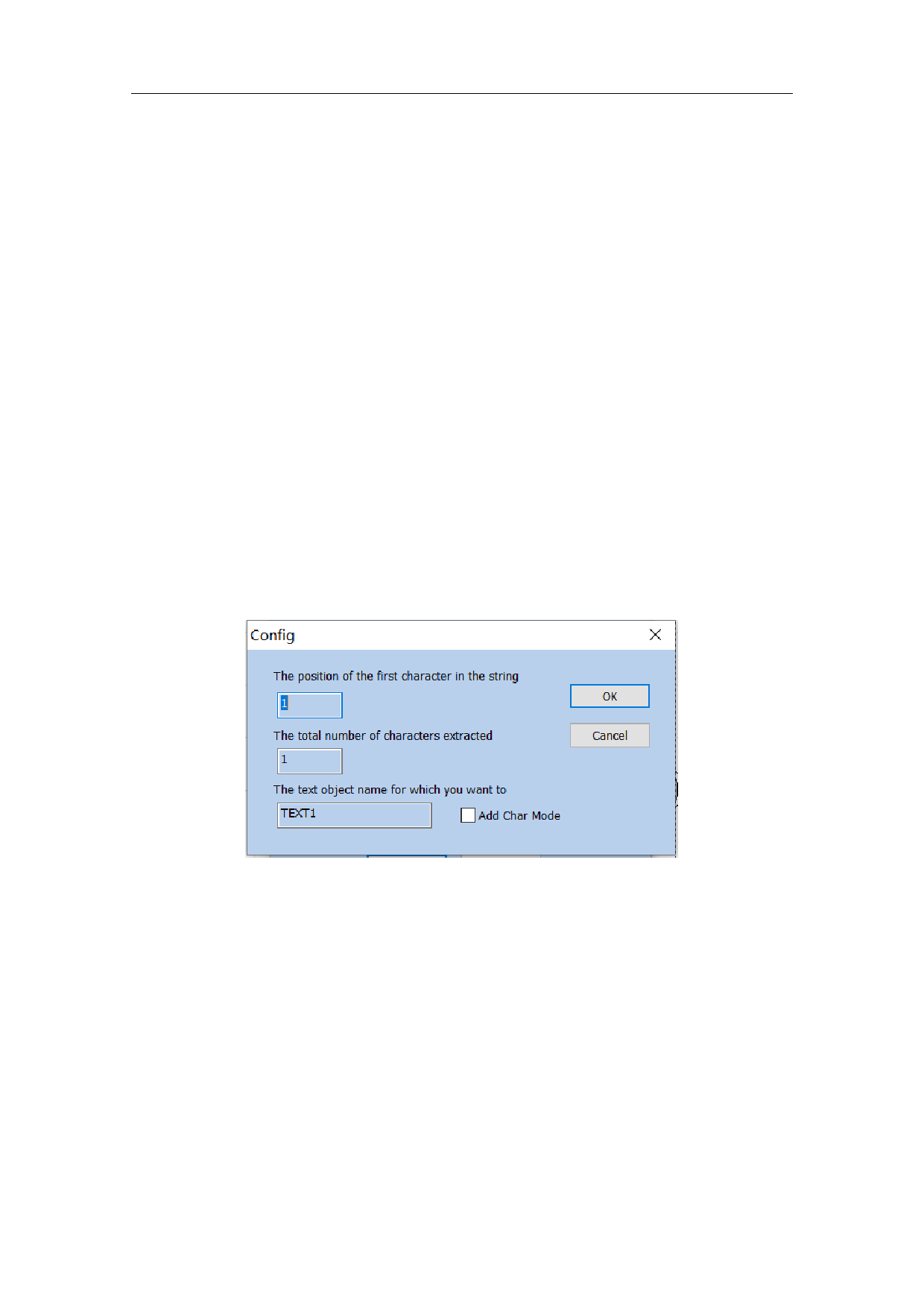

3. When “Add” is clicked, the following dialog box will pop out (it means that
two characters starting from the first character in the variable text are extracted
to replace the content in the fixed text entity with an indicated name)
Fig.4-32
Parameters
Location of the First Character in String
Total Number of Characters Extracted From the String
The Name of the Text Object that You Want to Modify the Character Content
OK
100 / 217
    "
