system springs like the figure 4-30 shows the dialog box, the operator with the
bar code scanning gun scanning bar code work piece on, the bar code
scanning gun inputs the read content to the dialog box inside and closes it
automatically, then the system will start to process the content read a moment
ago automatically .
4.8.4.9. Advance Function
After the “Advance” function is selected, the dialog box as shown in Fig. 4-29
will pop out.
After selecting advanced functions, the system will pop up a dialog box as
shown in Figure 4-29.

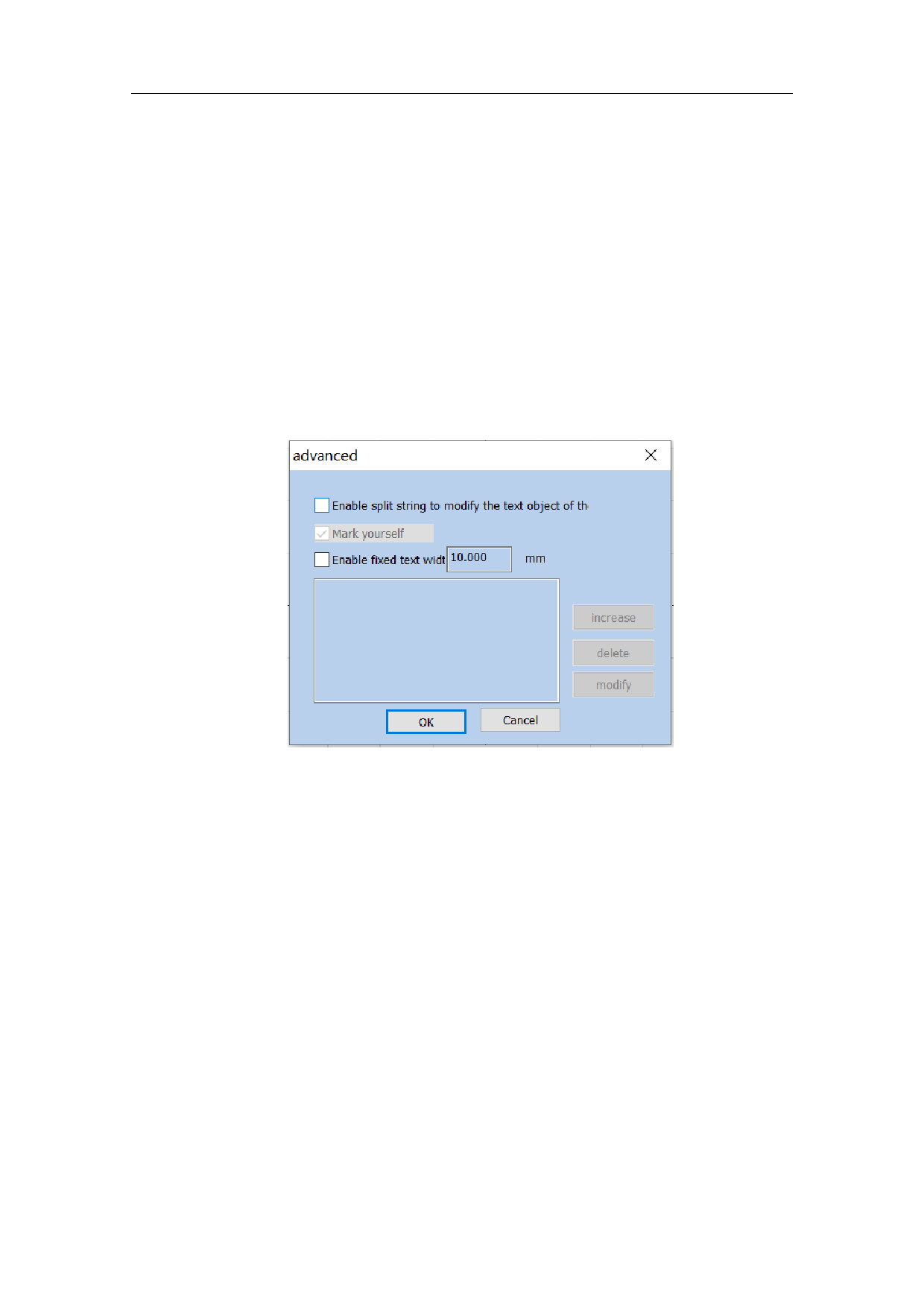

Fig.4-29 Advance Function
Advance
Text Object that Enables Split Strings to Modify the Specified Name
Mark Self
10.000mm Enable Fixed Text Width 10.000mm
Add
Delete
Modify
OK
Close
97 / 217
    "
