Tips In the process of processing, when the system encounters the text of
keyboard variables, it will pop up the content in the input dialog box, requiring
the user to enter the text to be processed, at this time, the user directly enters
the text to be processed manually.

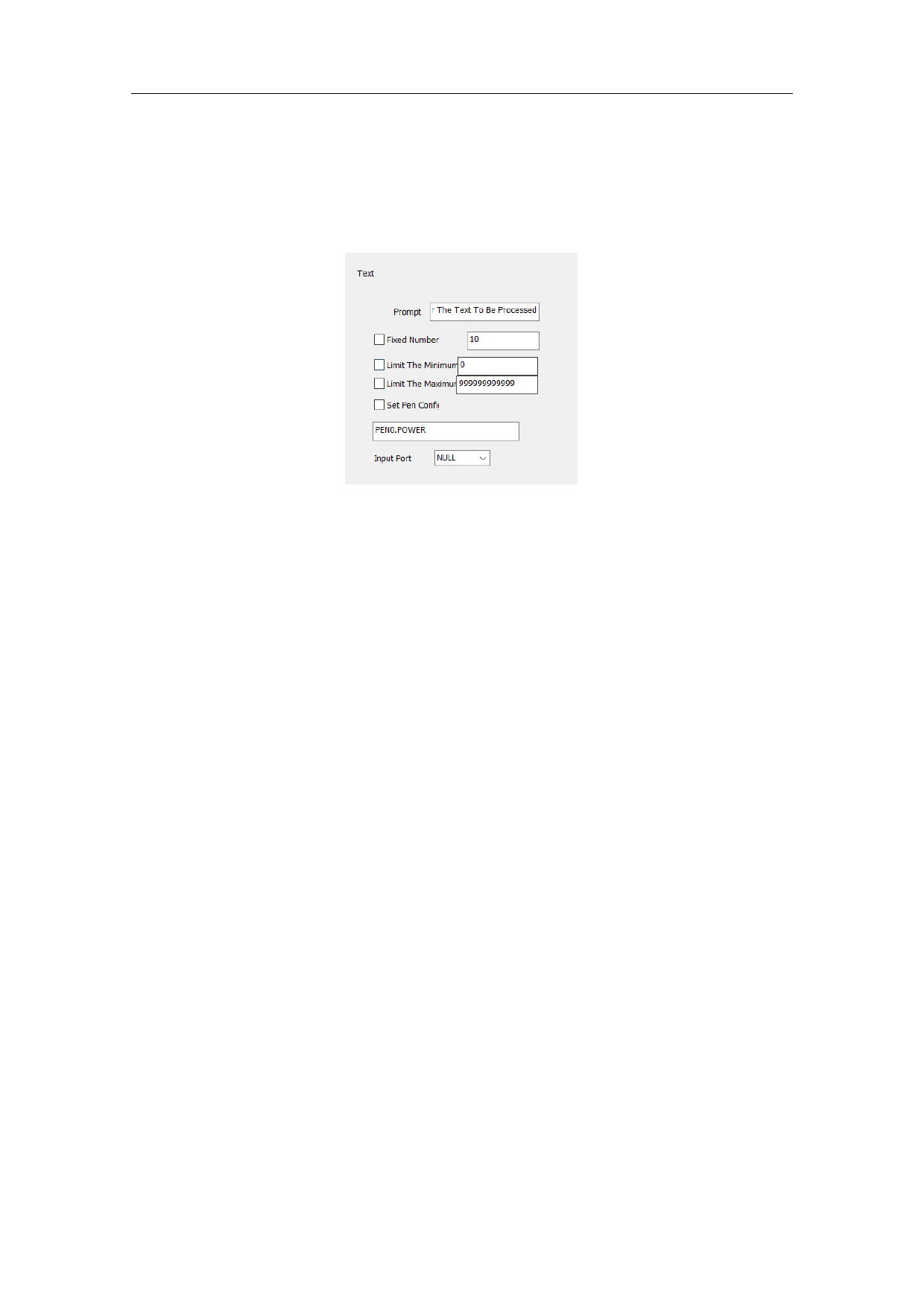

Fig.4-28 Keyboard
Text
Tip
Please enter the text to be processed
Fixed Character Count
Set Pen Parameters
Input Port
Fixed char count Number: user must input string with digit equals to this
count.
Set Pen Param: When selected, we can get power, speed, frequency from the
keyboard entry, only through setting pen*. power, pen*.speed or pen*.freq. The
“*” is number of pen.
Set Pen Param: The keyboard can be used to directly read the processing
parameters of speed, power and frequency, Set pen 0.power to indicate the
power of pen 0, pen 1.speed to indicate the speed of pen 1, pen 2.freq to
indicate the frequency of pen 2, and set according to this rule.
The keyboard element function uses frequently in this kind of situation
when the processing needs the real-time input to the processing content. If the
customer present need processes one batch of work pieces, on each work
piece is printed with a bar code, when processing needs the user with the bar
code scanning gun real-time scans the work piece to read the content on the
bar code, then with laser to mark to the work piece assigns in the position, at
this time can use the keyboard element function. At the processing time
