software which cell in the excel table will be mark
EXCELWhen the excel file system is selected, the content shown in Figure
4-27 will be displayed. The user is required to set the file name, field name and
line number of the current text to be processed.
File name: The text string of the first row in the datasheet1. This parameter
indicates which column will be marked.
Field name: The text of the first row of all columns of form 1 in the excel file
table. During processing, the system will automatically take out the text to be
processed from the corresponding column.
Text
File Name
Line Number
Increment
Field Name
Auto Reset

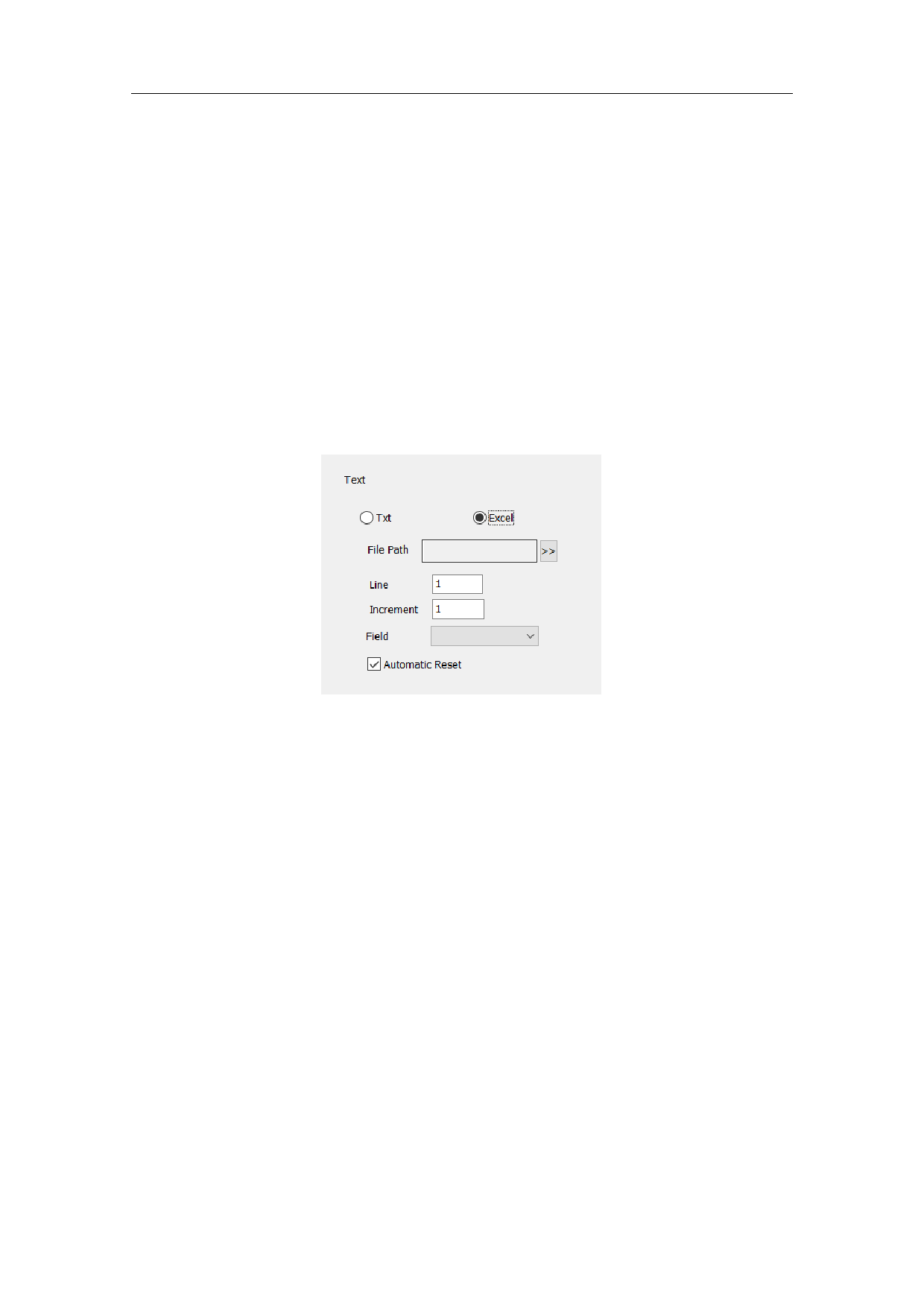

Fig. 4-27 EXCEL
4.8.4.8. Keyboard
The keyboard element is the text which must process from the keyboard entry
by the user, when select the keyboard element, a dialog box as Figure 4-47
shows will be displayed to ask for the user set the keyboard element parameter.
95 / 217
    "
