YDFLP-CL2-200-1/5-A&YDFLP-CL2-300-1/5-A User Manual
PIN 1-8 power control
Please set the current of pump laser diode which is the output power through a combination of
TTL signals of PIN1~8. The encoding can be set within the range of 0~255 which is corresponding
to the 0~100% power output power (the actual optical power output may not be a linear
relationship with these settings). Please refer to the description in table 9:
Table 9. Current Setting (example)
PIN 1
PIN 2
PIN 3
PIN 4
PIN 5
PIN 6
PIN 7
PIN 8
Current
Setting 1
0
0
0
0
0
0
0
1
~50 %
Setting 2
0
0
0
0
0
0
1
1
~75 %
Setting 3
0
0
0
0
0
1
1
1
~87.5 %
Setting 4
0
0
0
0
1
1
1
1
~93.75%

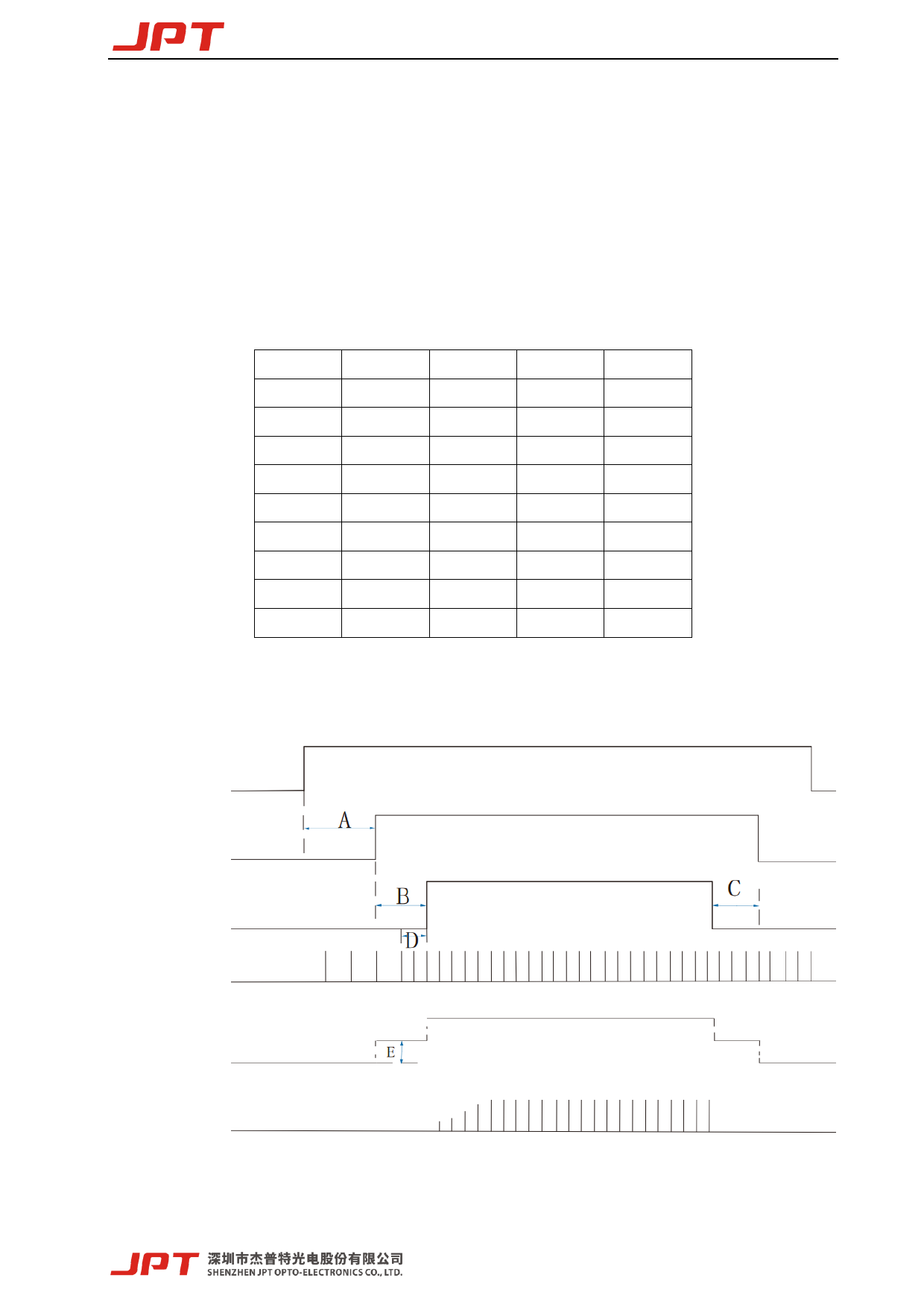

The following is DB25 Control Time Sequence:
SUPPLY VOLTAGE 48V
PIN18 MO
PIN19 PA
PIN20 PRR
PUMP CURRENT
LASER OUTPUT
Figure 10. Diagram of DB25 Control Time Sequence
