EzCad2UNI User’s Manual
Fly from right to left: Choosing this item indicates that stream line direction is from right to
left.
Fly continue mode: Choosing it indicates mark object is continuous one, namely, we need to
mark content on continuous object. (Such as: wire ,cable and so on).
Enable total part num: Selecting it indicates the mark “total number” set is effective.
Disable start mark IO in continue mode: it indicates that software doesn’t test start mark
port when marking continuous object. Otherwise, software will test input signal while marking
every time.
Enable hardware fly mode: It indicates that using rotation coder follow linear speed
automatically.
Enable simulation e: It indicates that using simulation hardware method produce linear speed.
It requires appointing speed.
Enable fly according to object order: Selecting it indicates that software will mark content
according to its order in the list in turns. Otherwise, software will mark content according to
its position in working space from left to right.
Reverse Encoder Signals: the signals from encoder is reversed.
Fly encoder Offser: the position of marking is in front of actual.
Inport: choose port of flying signal for Board Version 2.2.6 or update.
Fly speed coefficient: The calculation formula is shown as follows:
Fly speed coefficient = perimeter of coder tachometer wheel / coder pulse per revolution;
Red Light Pointer:
Max. Freq Delay: Same as max power delay
Red Light Pointer: Refers to guide light
Light Speed: the speed of guide light
Offset Pos X and Y: it is used to compensate the position error between guide light and the
laser beam.

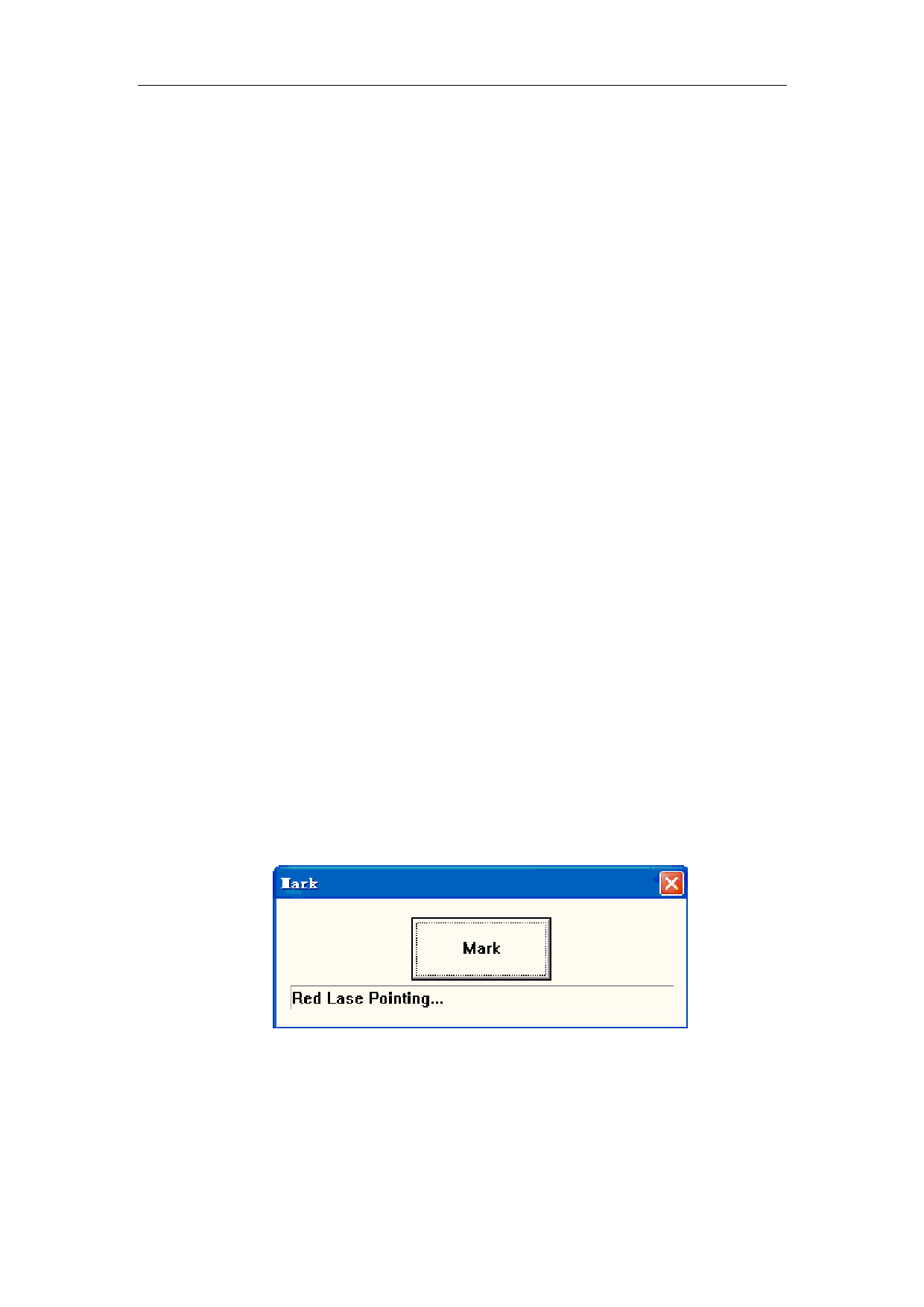

Enable continue mark mode: enable this function, return the software surface, click
“Param” then the dialog box popup shown as following Figure，it will be appear after mark stop
every time, the Red Laser Pointing always exist.
