10.2 Marking Parameter Base

EzCad2UNI User’s Manual

Marking Parameter Base is a base filled with all marking parameters which have been set by

users already. Figure 10-4 is a Marking Parameter List.

YAG: YAG indicates that the current Marking Parameter is for YAG laser machine, and if not,

it is for CO2 laser machine.

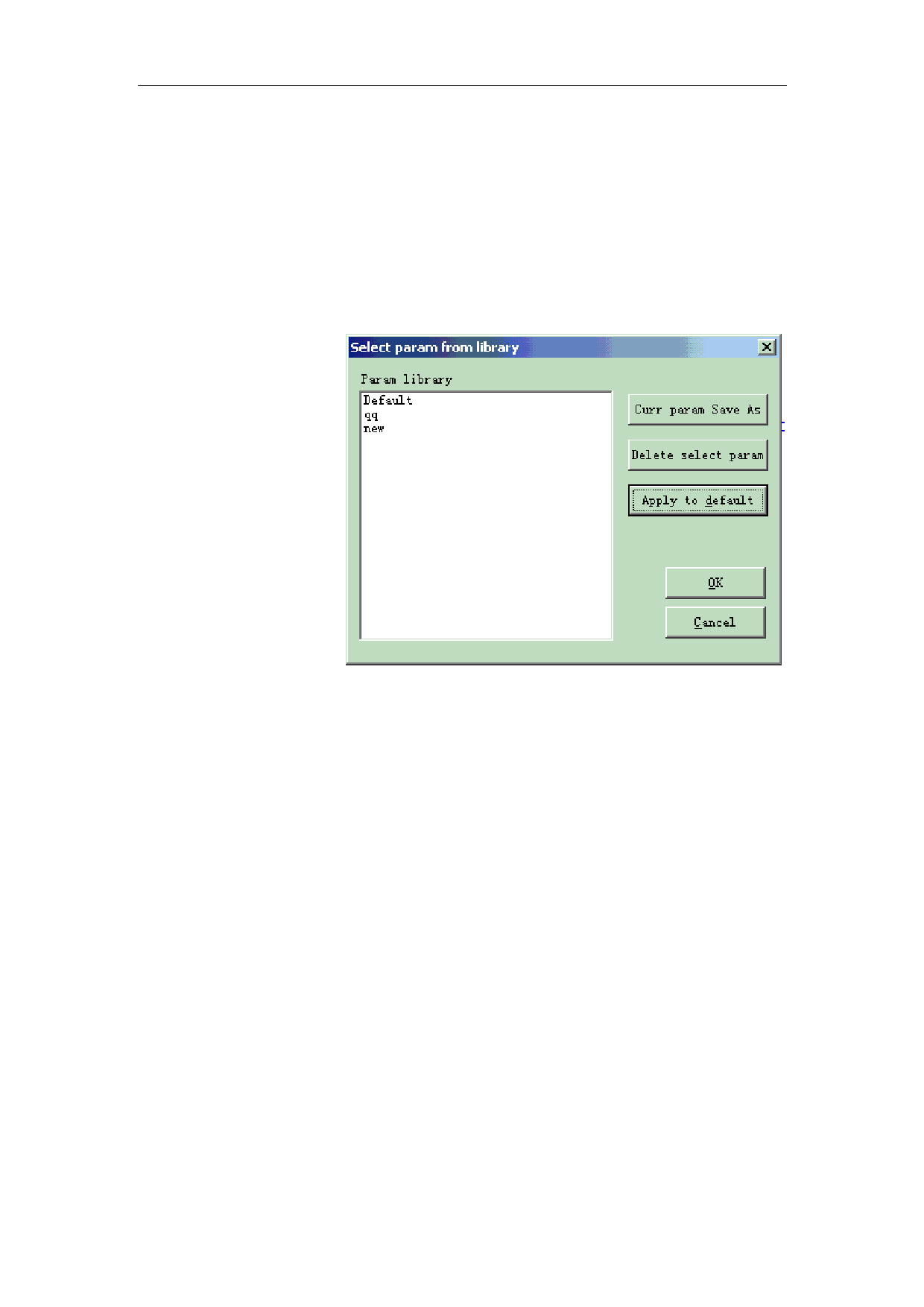

Select param from library: When press this button, a dialog will pop up as figure 10.2-1

shows. We can save the

parameters to disk files, or to

delete parameters from files.

Curr param Save As:

“Curr param Save As” is

used to name the current

marking parameter to disk as

another parameter base’s

name.

Delete: to delete the

current parameter base

name.

Apply to Default: save all

the current parameter to

“default” parameter base

Figure 10-4 Marking Parameter Base List

name

Loop count: loop times to mark an object

Speed: the current marking speed

Power / Current: In CO2 mode, this item indicates the power percentage of the current

marking parameter, and 100% refers to the biggest power of the laser equipment. In YAG mode,

this item indicates the current of the Q-switch.

Frequency: the laser machine’s frequency in the marking parameter

Q pulse Width: the high-level’s time of the Q pulse if the laser equipment is Q-switch YAG

laser machine

Start TC: When the scanhead has to execute a mark command, the scanner mirrors first have

to be accelerated up to the defined marking speed. In the beginning of the movement, the laser

focus moves very slowly which may result to burn-in effect at the start point. To avoid this, We

insert a delay (Start TC) at the beginning of each mark command. When the laser eventually turns

on, the mirrors have already reached a certain velocity. However, if this value is too large, the first

part of the vector will be cut off. Also negative value is supported.

Laser Off TC: The delay time of the laser shutting down after marking finished. Proper time

can wipe off the burn-in effect at the end. This value cannot be negative.

End TC: The End TC parameter is used to control how long the software will wait at the

end of a series of vectors. The wait is required because the software is always "ahead" of the
