EzCad2UNI User’s Manual

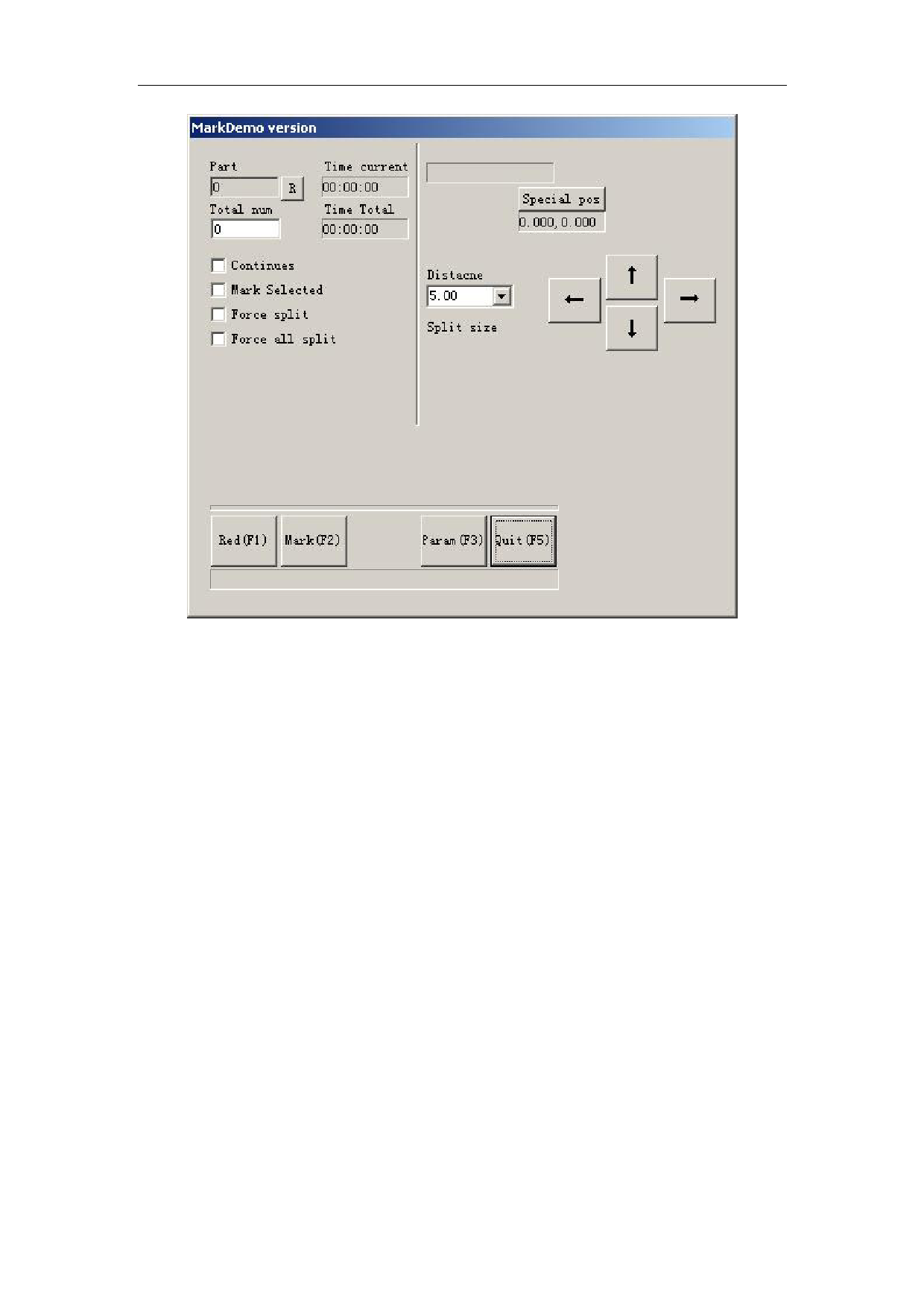

Figure 8-30 “Split mark 2”dialog box
Distance: The move distance each time when the key Ctrl and arrow key
Left/Right/Up/Down was pressed together, or click arrow. Press key PageUp/PageDown to
increase/decrease the distance.
Press Ctrl+Left to move left and Ctrl+Right to move right for expansion axis X.
Press Ctrl+Up to move up and Ctrl+Down to move down for expansion axis Y or axis Z.
Split size: The marking size before rotation each time. When marking the figure on the column,
we always split the figure into many strips to keep the focus point as the same. Mark one strip,
then rotate the column, and mark the next strip, one by one until the whole figure was processed.
Note: The split size is very important for the whole figure. It has great influence on the time
and the effect.
Part: The part count that has been marked. Press the button R on the rightwards will reset the part
count.
Total num: The total count need to mark. When the parts have been marked reach the Total num,
software will stop it automatically.
Continues: Repeatedly mark the figure until stop it manually.
Mark Selected: Only those figures selected will be marked.
Force split: Divide the whole figure into equal parts neglecting the size of each object.
Figure 8-31 is the case without Force split selected while Figure 8-32 is the one that enable
Force split. The split size in two figures is 18mm.
