EzCad2UNI User’s Manual

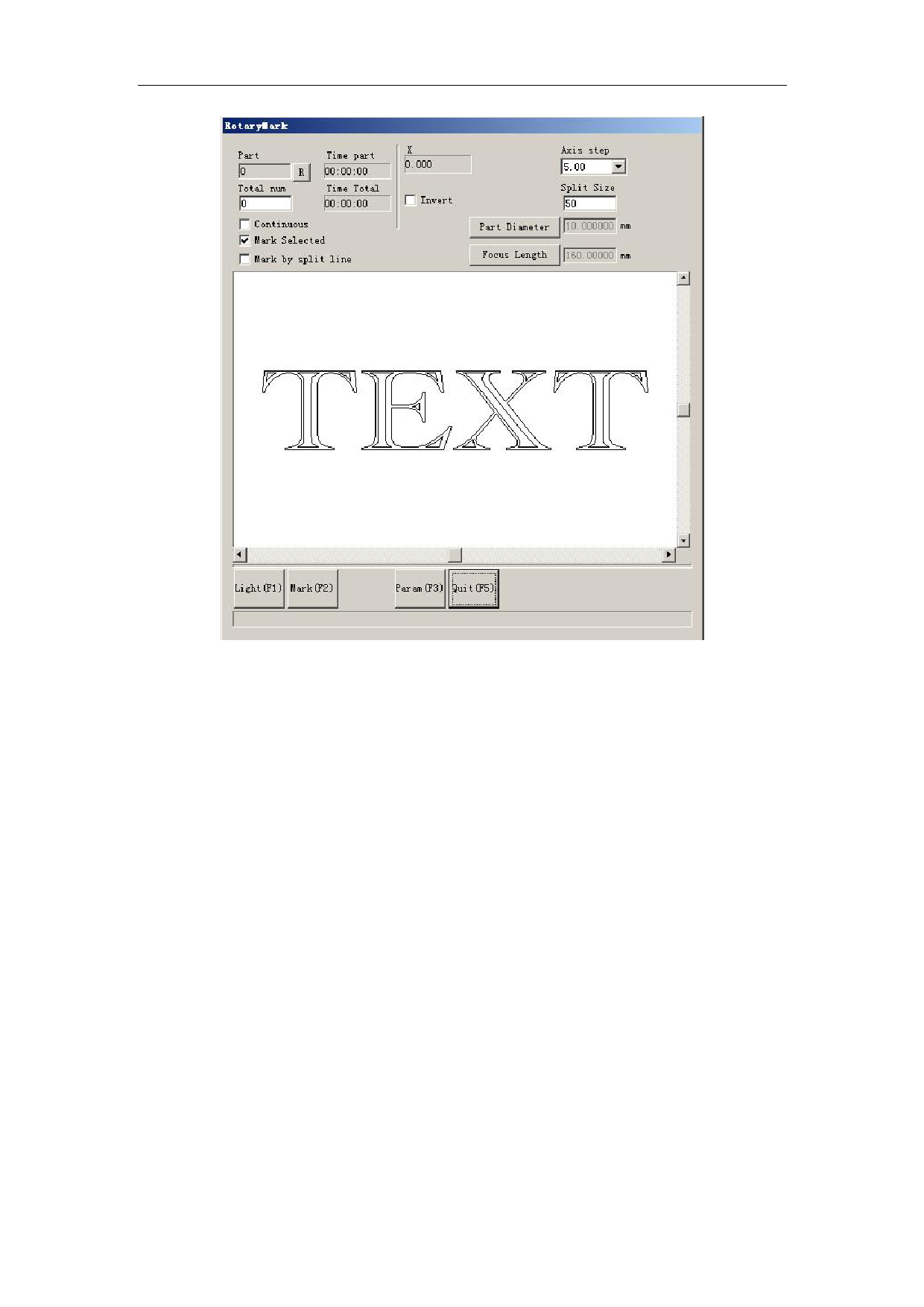

Figure 8-27
Part diameter: click it, and fill in part diameter.
Focus length: click it and fill in focus length of F-θlens.
Note: the two parameters effect marking result directly.
Two split models:
1. Mark selected: control marking size through configuring split size, don’t click ‘mark by split
line’ at the same time, or the software will split as ‘mark by split line’
2. Mark by split line: click it, software will mark as ‘mark by split line’, click left keyboard
twice to draw split line, click right keyboard near the split line to cancel the split line. The
direction of the split line is the same with rotary axis.
‘axis step’: The move distance each time when the key Ctrl and arrow key
Left/Right/Up/Down was pressed together. Press key PageUp/PageDown to increase/decrease
the distance.
Press Ctrl+Left to move left and Ctrl+Right to move right for expansion axis X.
Press Ctrl+Up to move up and Ctrl+Down to move down for expansion axis Y or axis Z.
Part: The part count that has been marked. Press the button R on the rightwards will reset the part
count.
Total num: The total count need to mark. When the parts have been marked reach the Total num,
software will stop it automatically.
Continues: Repeatedly mark the figure until stop it manually.
Mark Selected: Only those figures selected will be marked.
Click parameter, this dialog window will pop-up
