EzCad2UNI User’s Manual

Inc. value: Set Inc. value of the line

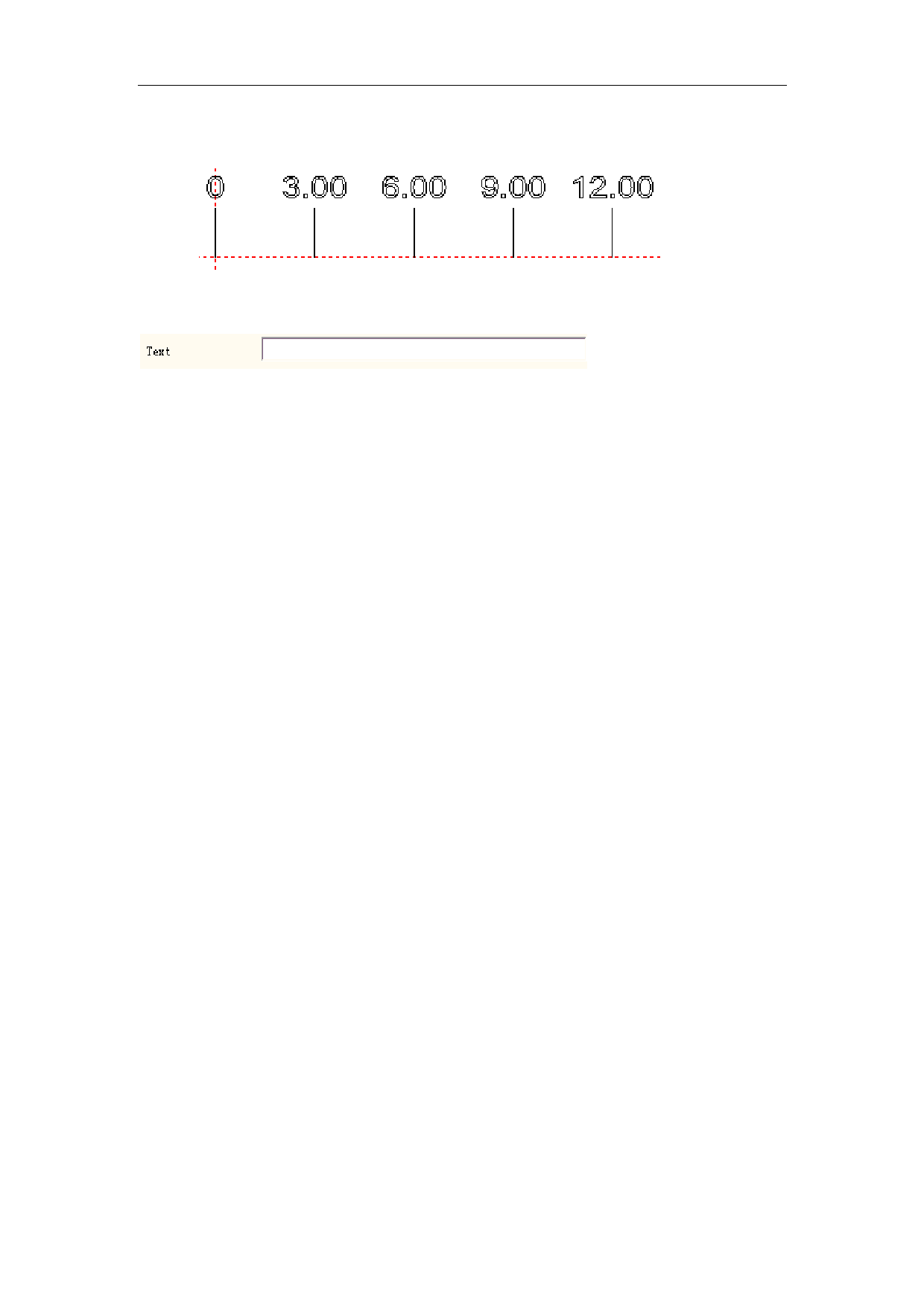

Dot bit count：Set dot bit count of the line, for example：set the dot bit count as 2，the value may

become

0 not show tail zero：0 did not show behind 0

Text: show the text information on the ruler. We can see the figure when we select “Text”

， We can compilation the

text content in the white frame

Vector File: Show the information of the vector file on the ruler

Scale X: width of the vector file

Scale Y: height of the vector file

Angle: the angles between vectorfile and X axis

For example: make a Straight ruler long thirty centimeters（three hundred millimeters）:

After set well the External Axis, select Straight ruler, click “Add” then the dialog box popup

shown as Figure 8-24 to set the Line

Set the longest degree ten: There are thirty one degree ten lines from zero to three hundred，

from the start graduation of the workpiece，the space is ten millimeters，the length is seven

millimeters，so as to the “Graduation Num” is thirty one，“Start Graduation” is 0，“Increment pos”

is ten，“Start point” is（zero，zero），“End point” is（zero，seven）；

Set the degree five : There are thirty degree five lines from zero to three hundred，from five

millimeters of the start graduation，the space is ten millimeters，the length is five millimeters，so

as to the “Graduation Num” is thirty，“Start Graduation” is five，“Increment pos” is ten，“Start

point” is（zero，zero），“End point” is（zero，five）；

Set the degree one : There are two hundred and forty degree one lines from zero to three

hundred，in order to avoid with degree ten and degree five superposition，degree one lines need to

set four times：from one millimeter，two millimeters，three millimeters，four millimeters in turn，

the space is five millimeters，the length is three millimeters, so as to the “Graduation Num” is

sixty，“Start Graduation” is one, two, three, four in turn，“Increment pos” is five，“Start point” is

（zero，zero），“End point” is（zero，three）；

Set the Value: select “Value”，only input the value of degree ten lines，so as to the

“Graduation Num” is thirty one，“Start Graduation” is zero，“Increment pos” is ten， “Start value”

is zero，“Inc. value” is ten，“Start point” is（zero，zero），“End point” is（zero，eight）；

Set the unit of the ruler: select “Text”，“Graduation Num” is one，input “Start Graduation”

and “Start point” according to actual situation，and inputs the text content which can show.

At last, the figure 8-23 turns to:
