Click “Add” presenting to edit the ruler, following dialog box shown in Figure 8-24：

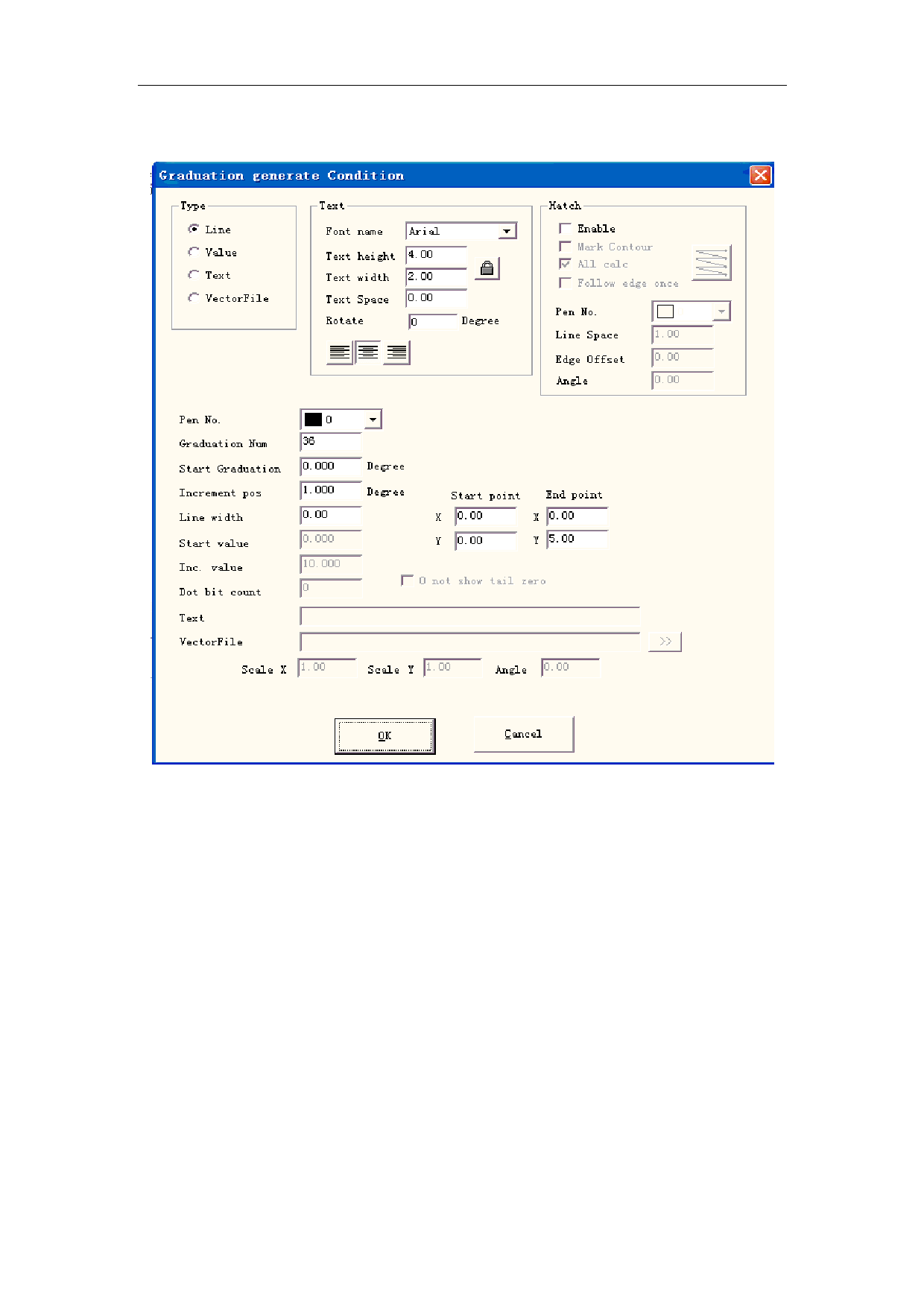

Figure 8-24 Make ruler dialog box
Type:
Line： The current parameter is the line parameter value
Value：The current parameter is the value parameter value
Text：The current parameter is the text parameter value
VectorFile：The current parameter is the vectorfile parameter value
Text：
Rotate: the angle of the text revolving
Hatch:
Pen No.：This item indicates that objects with selected pen’s number will be marked.
Graduation Num: The total graduation numbers need to be marked
Start Graduation: Set the position of start marking graduation
Increment pos: the space between two neighboring lines
Line width: Set the width of the line
Start point: Set start point of the line
End point: Set end point of the line
Start value: Set start value of line
