RDC633xM Specification
5 HM laser ZT3 following module
RDC6332M mixed cutting control system support the following control module of HaiMu, the connection is
simple. Diagram as shown in figure 2.
AC220V
PG
直流电源
DC POWER
24V+
GND
ZT3
HMLaser
自动寻找焦点按钮
(按下执行,松开停止)
手动上升按钮
(按下执行,松开停止)
手动下降按钮
(按下执行,松开停止)
24V+
0V
S+
S-
TC
shield
P+
P-
D+
D-
Out3+
Out3-
EC
AS
ET
UP
24V+
24V-
GEE
DGND
E+
out2
out1
ESO+
ESO-
DW
OPTO_0V
LL
LH
Opto_24V+
OPTO_0V
GEE
+24V
NC COM NO
COM NO
GND
DrProc
FootSW
LmtZ-
LmtZ+
+5V
GND
OUT2
OUT1
OUT0
WIND
+24V
1
2
3
CN3
4
5
6
1
2
3
CN2
4
5
6
GND
DIR+
DIR-
PUL-
PUL+
+5V
1
2
3
Z
4
5
6
+5V 5
L_IN 4
WP2 3
WP1 2
GND 1
L
AC220 N
交流电磁阀控制继电器
(24VDC)
交流电磁气阀(AC220)
参考地
红(red)
黑(black)
棕(brown)
白(white)
灰(gray)
抽风机控制继电器
(24VDC)
Pul+
Pul-
Dir+
Dir-
步进驱动器
Step Driver
HBS57
Hybid servo driver
GND
+VDC
U
V
W
+36V
GND
直流电源
DC POWER
AC220V

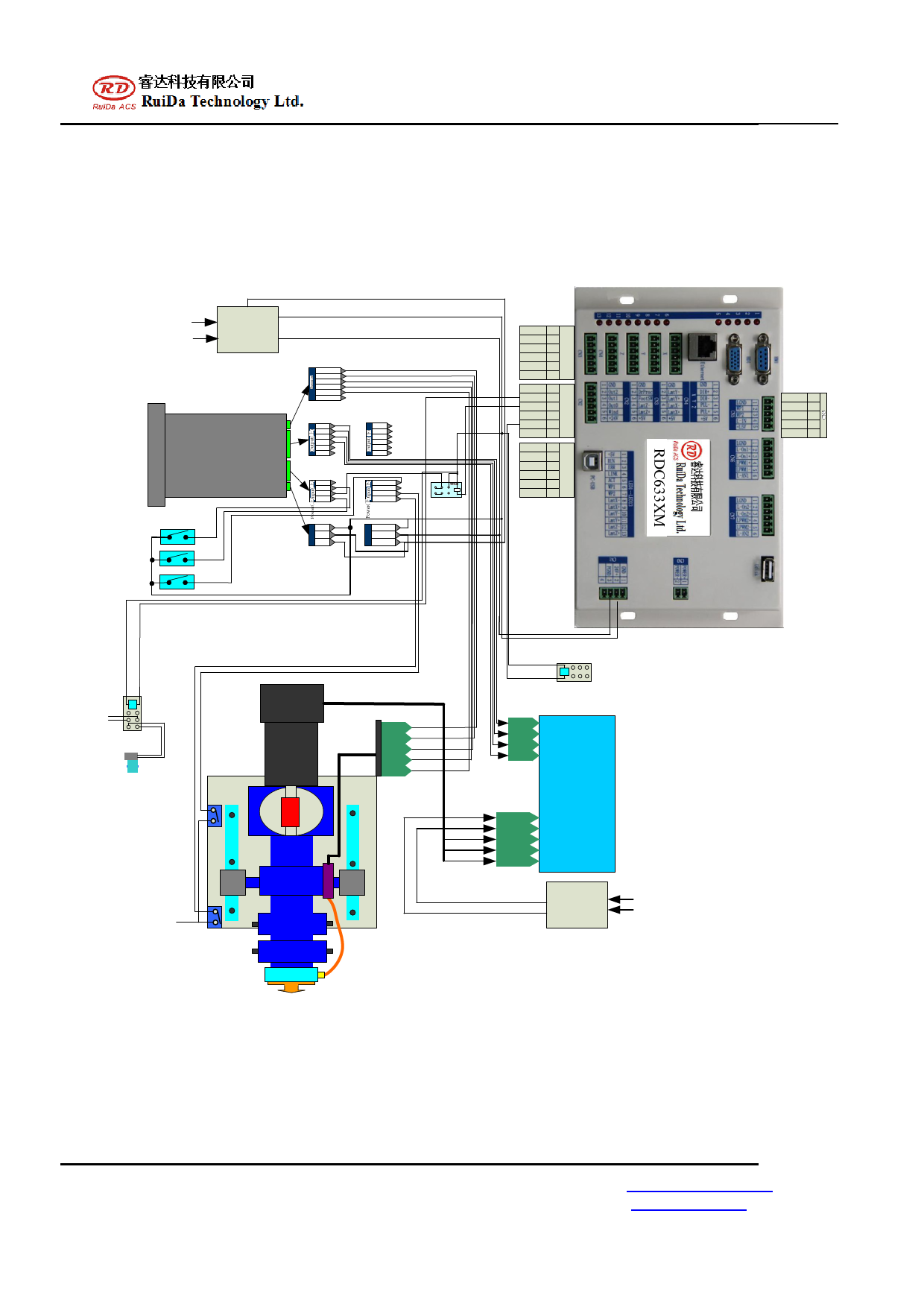

Figure 2 ZT3 following module wiring diagram
Key Point:
l After power on, shift the panel buttons to "RUNNING" of the height controller, manually press the
button of "up" and "down". Cutting head must be move in accordance with the desired direction.
