RDC633xM Specification
1 System Introduction
RDC633xM laser metal cutting control system is a high cost performance control system which is developed
by RuiDa Technology specializing in sheet metal cutting market based on the mature RDC633xG hardware
platform, It can control following head height sensing controller and auxiliary gas control. Form a complete set of
application software designed for the special process of metal cutting of various extra functions. Including micro
joints, ins and outs setting, internal model and external model process Settings etc, which improve the flexibility
of the system application

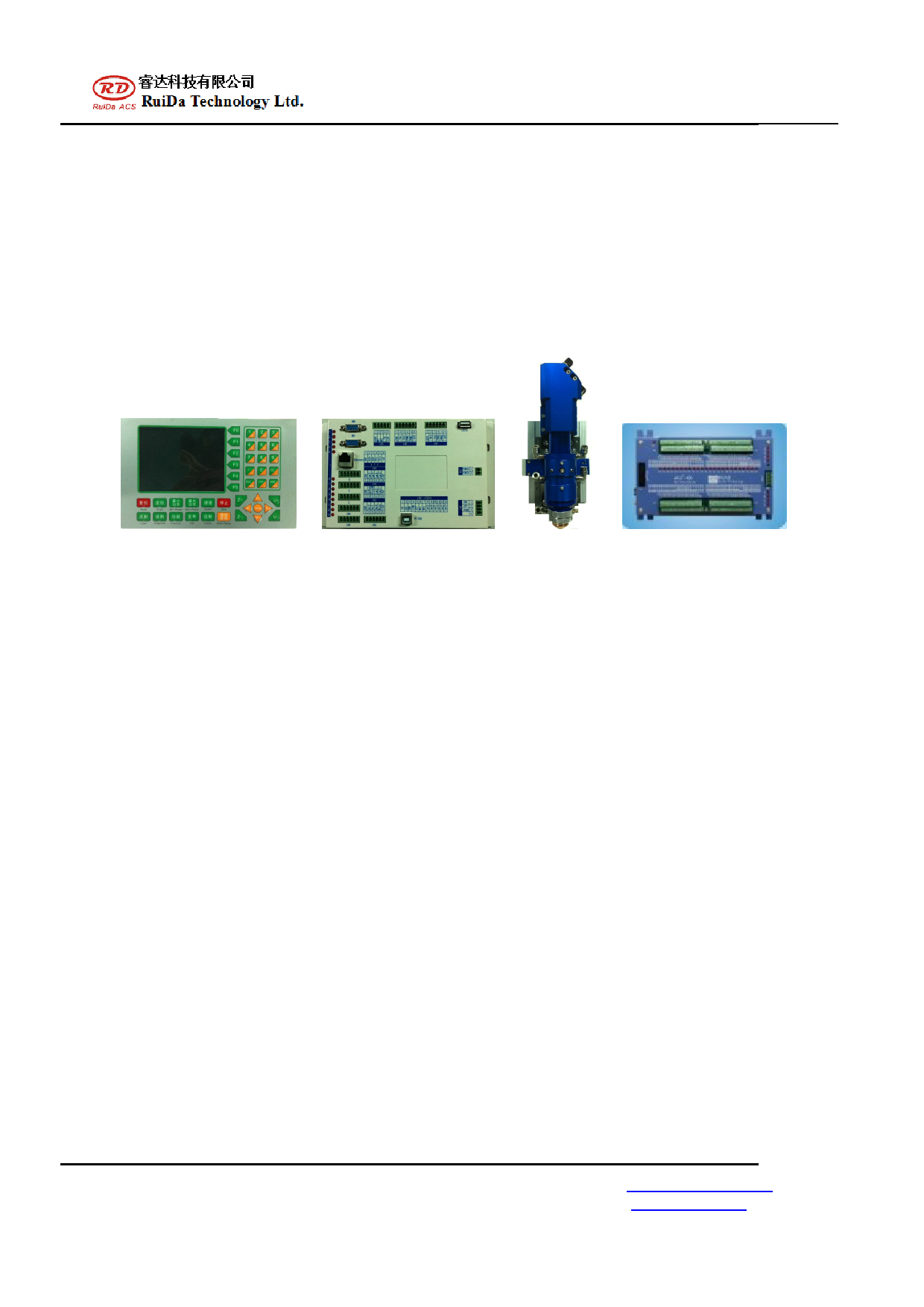

Operating panel
+
+
+
motion controller
laser head
Picture 1-1 system structure view
RDZ01 live focusing controller
2 Hardware Descriptions
2.1 Electrical Connection
RDC633xM laser cutting system is especially for metal and non-metal. With the live focusing control and
CO2 laser tube, it can cut metal which thickness not above 3mm. the operating method is just the same as
RDC633XG product. So please refer the user manual of RDC633XG. And then read the supplementary
specification in detail.
The most deference is the laser control, the auxiliary gas control and the laser head live focusing control. So
we will described them in the following part .
2.2 Control the laser
This system is compatible with YAG and CO2 series medium-power laser control, Provide power control
signal and laser switch signal. Laser power control signal include PWM and analog voltage.
2.3 Laser head auto-tracing control and auxiliary gas control
The interface for auto-tracing head and auxiliary gas control is described as follows：
1 Working status instruction OUTO
OUT0 is located in the CN2-PIN4
This interface is used to output the working status of the controller，when the controller is executing a cutting
task， the OUT0 connect to the referenced ground (GND)。 When the cutting task finished，the node will
disconnect from the Ground . The OUT0 is open-collector output .The signal can drive relay
