l automatically set inner mod or outer mod
l Add lead in and lead out line automatically
l Checking Lead in and lead out line automatically
l Add small connections(link near)
l set sequence of the graph element manually and automatically

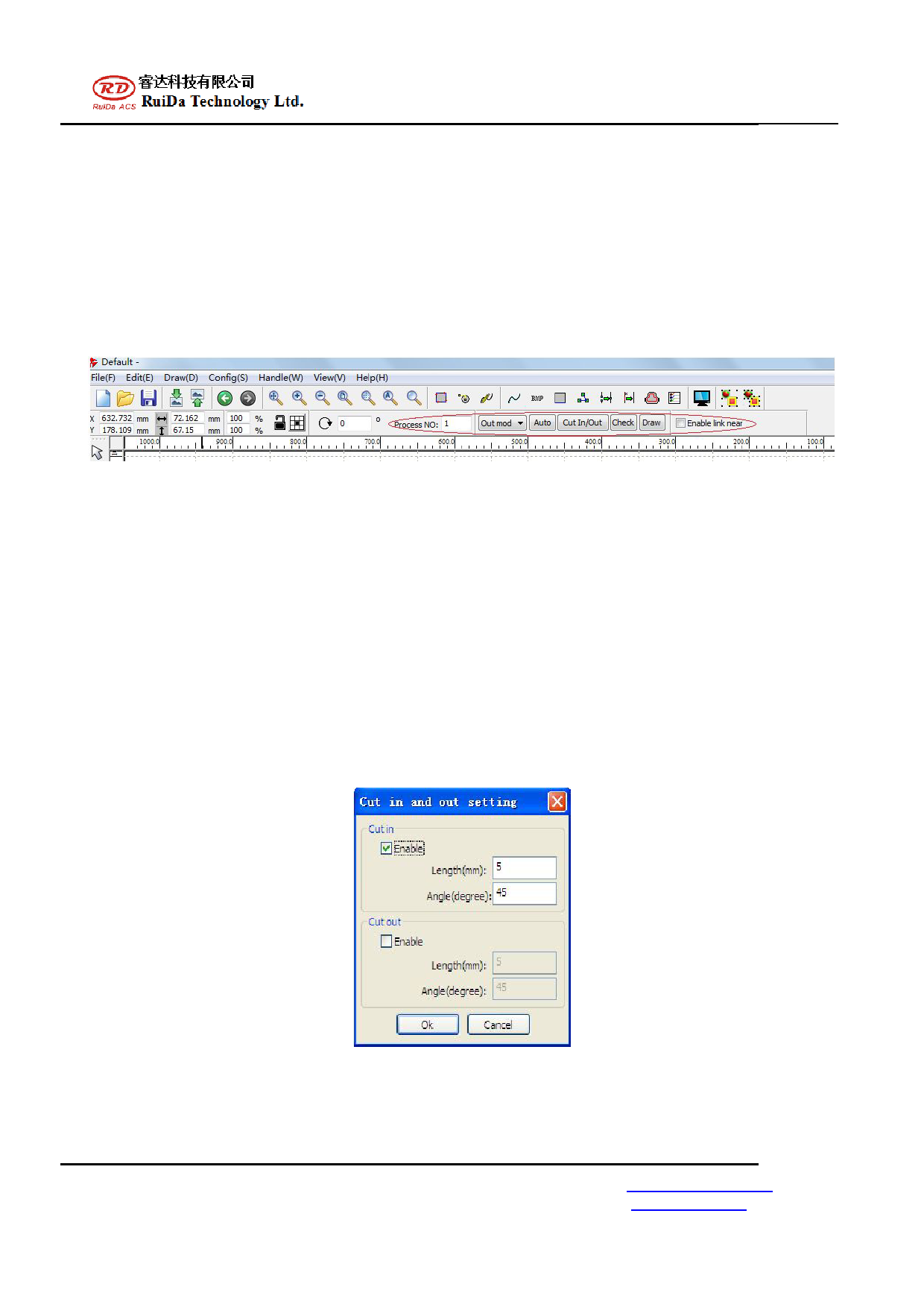

Function keys and menu as shown in figure 4-1.
Figure 4-1 metal cutting process menu
Inner mod/outer mod:
Inner mod refers to that inside of the graph unit is waste, and outside part of the graph unit is for process
components. Graphics must be selected before perform this operation.
Automatically:
Automatic button is to set the inner mod and outer mod automatically. The software consider that the innermost
curve unit is outer mod, then inner mod. The independent curve unit is outer mod in default. Graphics must be
selected before perform this operation.
Lead in and lead out line:
Lead in and lead out setting as shown in figure 4-2.
Figure 4-2 ins and outs
Check:
Check function is for checking the legitimacy of lead in and lead out line. Graphics must be selected before
perform this operation.
