Power on test:
RDC633xM Specification
When power on, power led will light, wiring diagram of power supply is correct.
Calibration：

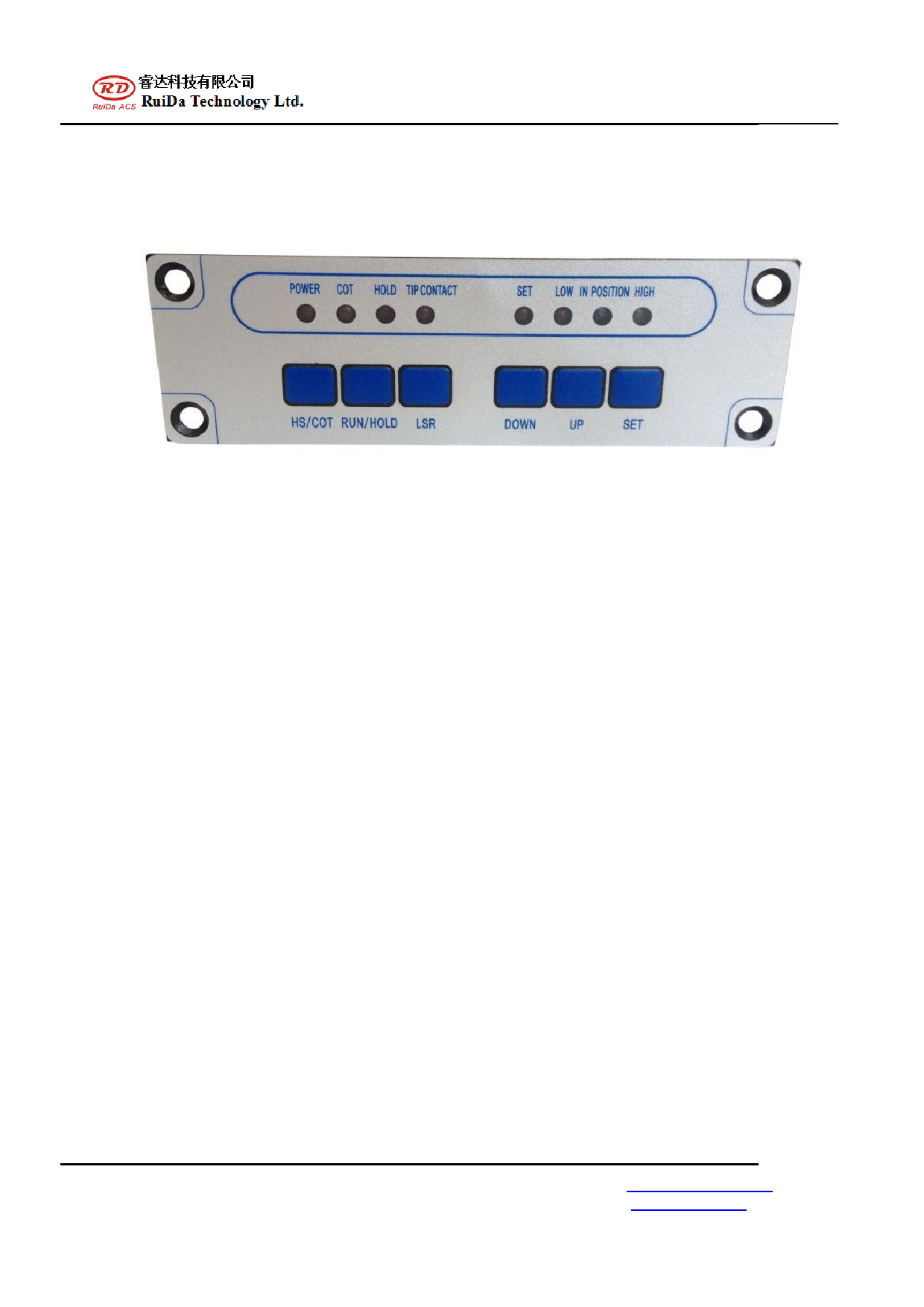

If the hold led is not on, then press RUN/HOLD key to make the tracing module into the HOLD status. And
then down or up key can be used to adjust the height of laser head until you have decided the focus point.
After that, press down the SET for a long time until the SET led is on. And then release SET. The calibration
is finished when the SET led is off.
Working:
When the COT led is off after power on, then press HS/COT key，switch automatic focus module to the
external control(COT light). Finish set the height controller parts.
Exit from limit state:
If up delay set too long, the laser head will trigger the up limit. It needs to close the machine power supply of
machine and rotate the axes of tracing-axes manually to make the head away from limit switch, then power
on, press “work” to use the height controller. (Generally rising time delay is set to 100 milliseconds is
appropriate.)
