RDC633xM Specification
When Low level, said the following up in place, otherwise it is not in place.
This is an input. To accept the “rising in-position” signal from the live focusing controller. When the signal is
LOW, the signal is valid.
３ Following control process specification
RDC6332M controller complete the control of the following unit in two ways.
（1）Interactive control method
This is just for the DSP VER 6.30.31.
（2）Delay Method
The Delay mode can be set in the laserWork software. It is popular for most kinds live focusing system.
Under this mode, the rise up length and the going down length are set by the parameters. when the head goes
up, the longer the rising delay time, the higher the head going up. In a similar way when the head goes down, the
delay time must be set long enough to make the head to reach the focus height, Both parameters can be set with
the PC software.
Note:

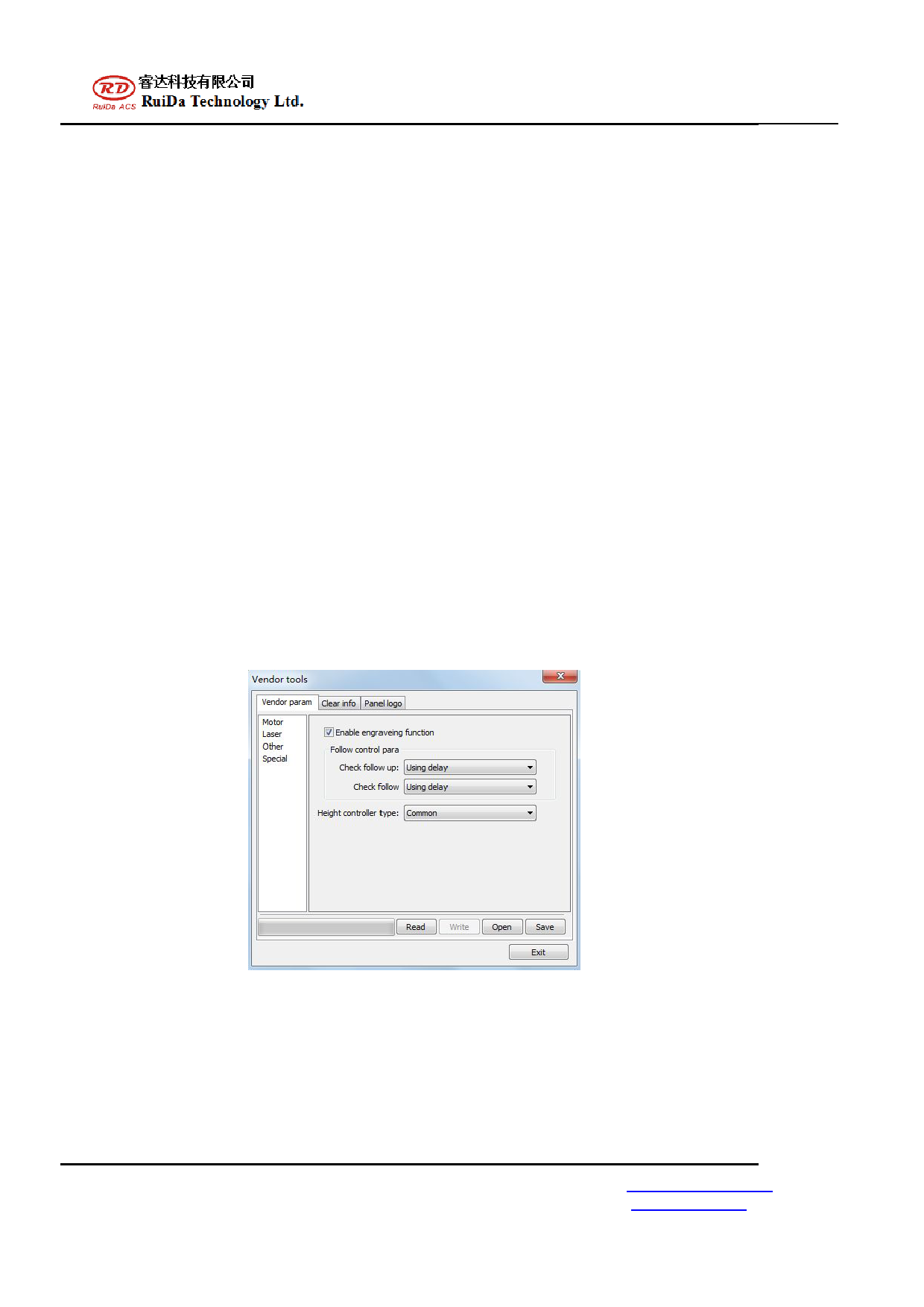

There are two options for selecting the live focusing mode of the controller in the manufacture
parameter.
In the delay mode, the parameters should be set as follows.
4 Description for Software
RDC633XM mixed cutting controller matched software version is LaserWorkV6---metalcutv1.00.07. This
software is based on the LaserWorkV6 and add some functions for metal cutting. Detailed description as follows:
l lead in and lead out line
