150W Power Supply Model: HY-T150
TH
TL
WP
G
IN
5V
Water Detection
FG (Power supply
and enclosure of
laser machine)
Manual laser operating
手动出光
High-level light control
"G"
Control Board
Computer system

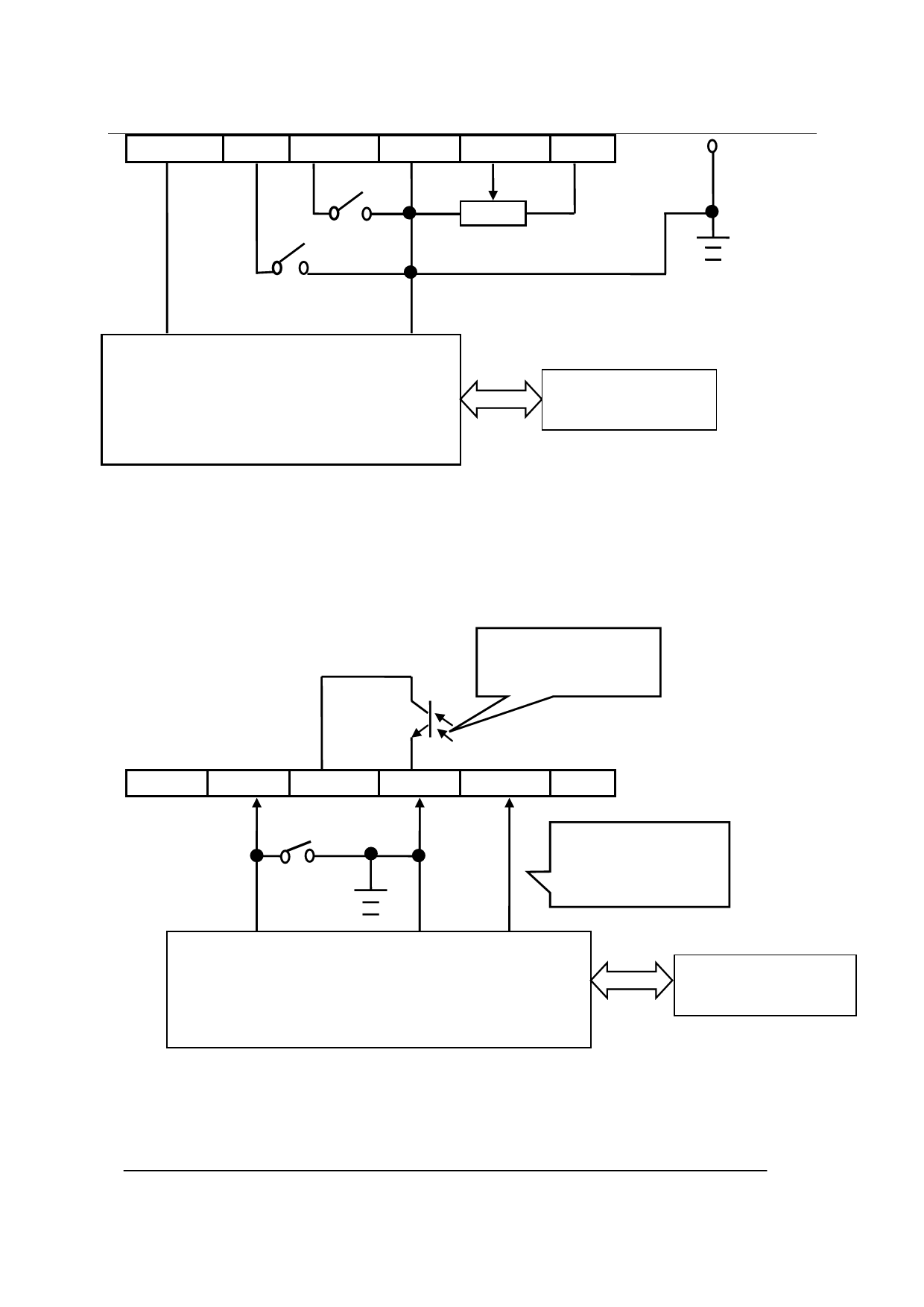

2. Recommended connection: Low-level light control
Output interface of
water detection
TH
TL
WP
G
IN
5V
Manual laser operating
0~5V analog signal or
5V 0a~m5pVlitude PWM
signal (f ≥20KHz)
Low-level light control
G laser power control
Control Board
Computer System
VII.Check the power supply worked properly or not manually
Make sure the power supply and laser tube wiring correct firstly, offline the control line and then press the
red button" TEST" to test laser tube out light or not, this method can be simple judgment power supply is
