150W Power Supply Model: HY-T150

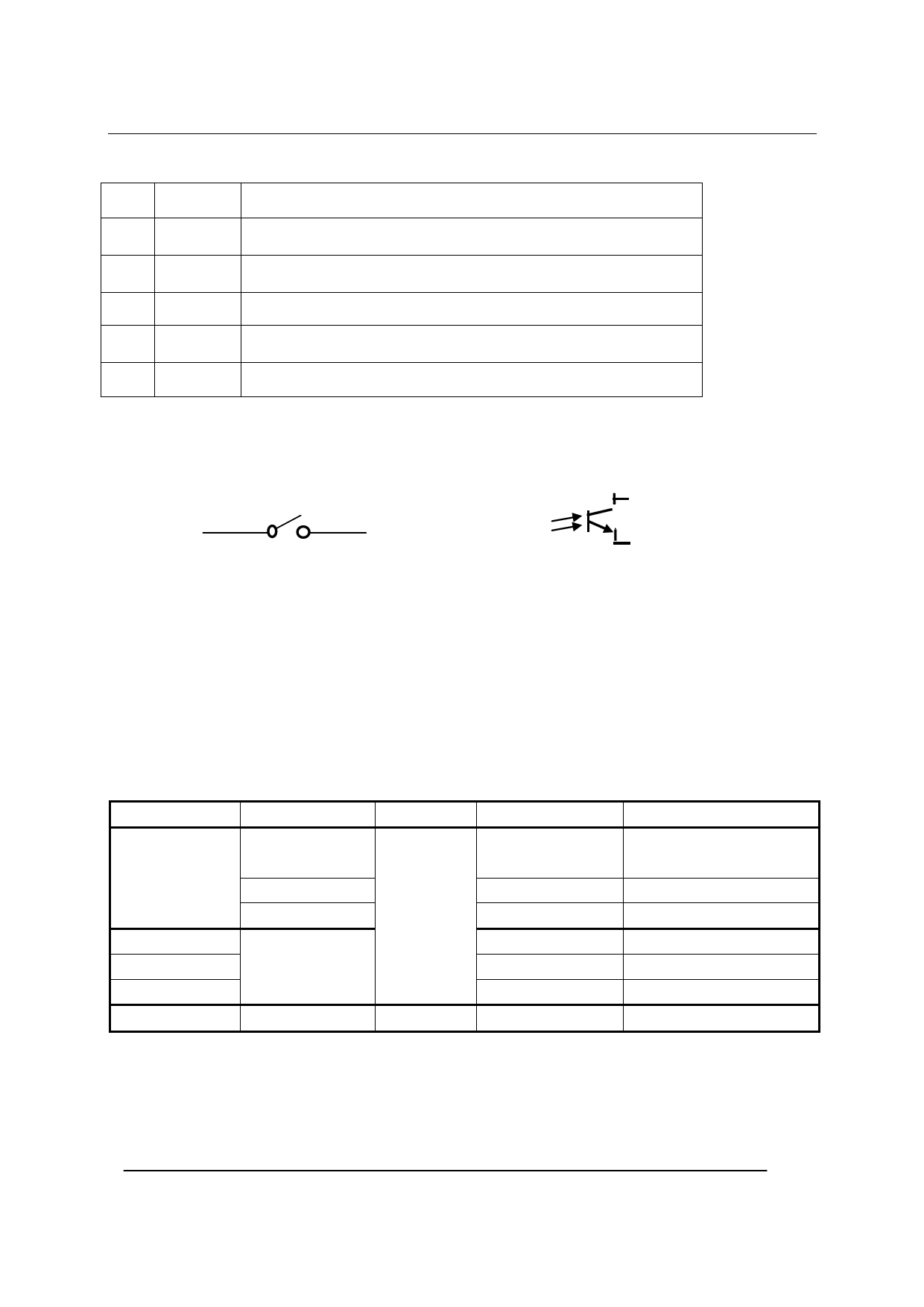

The terminal definition as follow ：
TH Input Signal Switch Light Control，High Leve（l ≥3V）- Bright dipping ，Low Leve（l ≤0.3V）
- No Light Dipping
TL
Input Signal Switch Light Control，High Level（≥3V）- No light Dipping， Low Level
（≤0.3V）-Bright Dipping
WP*1 Input Signal Switch Light Control，High Level（≥3V）- No light Dipping， Low Level
（≤0.3V）-Bright Dipping
G
Signal
The foot must connected with laser machine's enclosure , Control Module and
Ground
ground properly.
IN*2 Input Signal Laser Power supply control terminal ， can use 0—5V Analog Signal
Control，,also can use 5V PWM Signal to Control
5V Output
5V , Max output Current 20mA
Power
Caution :
WP
G
Figure 1
WP
G
NOTE：
Figure 2
1).WP can be used as detecting end of blower switch or water detection switch. If WP and ground are not connected by empty
node like picture 1, but connected through optocoupler, the connection will be like picture 2.
1)WP input terminal can use water switch or fan switch's test terminal, Please pay attention that WP is through optocoupler
connected with ground (G) as (figure2) , not as (figure 1). 2)(PWM control): Requirements of the PWM frequency f≥20kHz,
amplitude(peak value)≤5V
Function of control interface:
TH
TL
unconnected
High(≥3V)
High(≥3V)
Low(≤0.3V)
Any value (ok)
Low(≤0.3V)
Low(≤0.3V)
High(≥3V)
Unconnected
Any value (ok)
WP
Low(≤0.3V)
High(≥3V)
IN
0－5V or PWM
unconnected
Any value (ok)
0－5 or PWM
Unconnected
Any value (ok)
Laser Output
Output laser
Power: Pmin~Pmax
Output about 40% laser
No laser
Output laser, Pmin~Pmax
Output about 40% laser
No laser
No laser
VI. The connection of power supply and control board
1.Recommended connection: High-level light control
