150W Power Supply Model: HY-T150
1.Water cooling system should be working properly when switching on laser device.
2.Circuit of high voltage output should not be open! (High voltage output terminals (positive and negative
poles) shall be properly connected to positive and negative poles of laser device, respectively.)
3. Attentions should be given to avoid any electric shock after the power supply being switched off.(The
Insulation safety requirements should be 40KV between the terminal of output and "G")
4. Well-grounded three-pole receptacle should be used to supply power to HY-T150 power supply. The
enclosure should be well grounded to avoid electric shock.

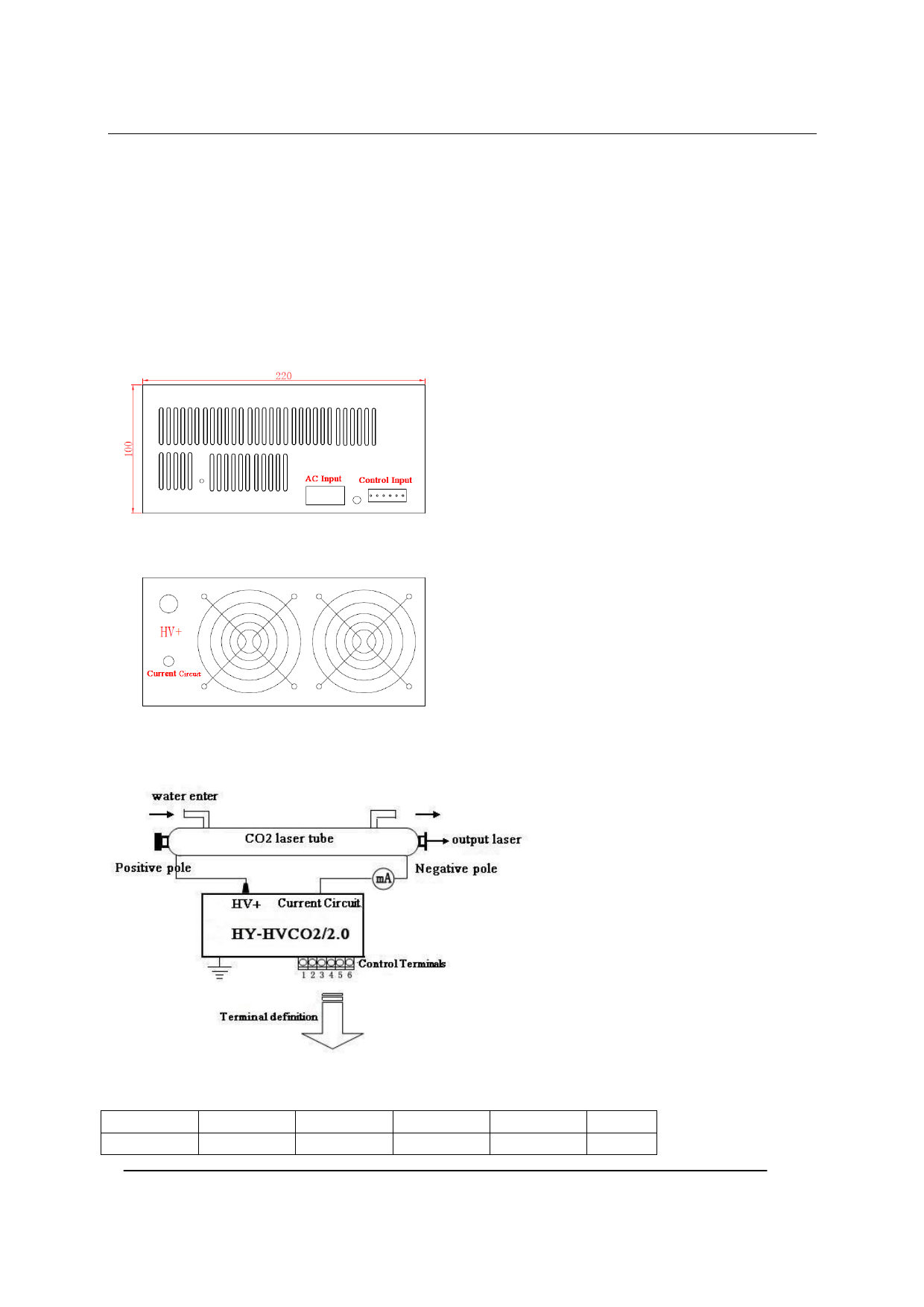

IV．The size of power supply and terminals）
V.The instruction of Power supply&laser wiring diagram&terminal
Terminal Definition
1
2
3
4
5
6
TH
TL
WP
G
IN
5V
