RDEMarkVision Operation Manual

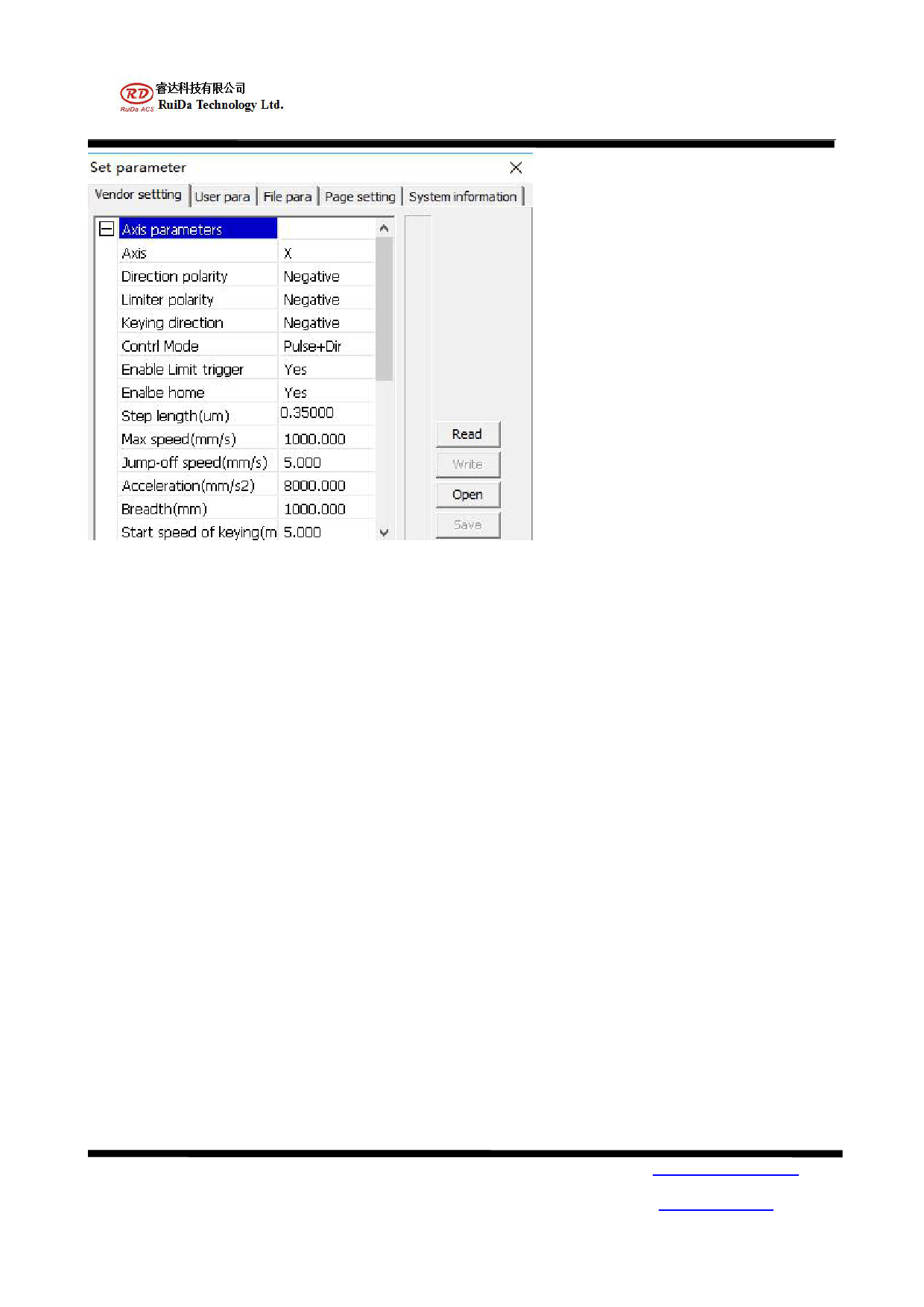

Before the operation of user parameters, the motherboard parameters must be read.
Null speed: the highest speed of all non sculpted straight lines during the movement of a machine. If the user sets
the parameter illegally, the controller will automatically put it in the above range; if the airway speed is set larger,
the working time of the whole graph can be shortened, but the settings are too large, which may cause the
trajectory to shake. Move.
Airway acceleration: corresponds to the speed of acceleration when walking, airway acceleration and airway
speed to match, if set too slowly the actual airway speed may not reach the set value, if set too fast, the
mechanical structure may not be able to bear, resulting in jitter. The general acceleration is slightly higher than the
acceleration.
Turning speed: Corresponding to the lowest speed in the process of carving when turning down, when there are a
lot of sawtooth, the turning speed can be reduced appropriately.
Turning acceleration: it should match the turning speed.
Cutting acceleration: corresponds to the speed of cutting (cutting speed is the layer speed in the layer
parameters).
Idle time delay: when a machine is not sculpted, it needs waiting time before movement.
Acceleration ratio: the coefficient corresponding to the cutting speed, the greater the rate, the greater the cutting
speed.
Null acceleration ratio: the coefficient of velocity corresponding to the empty travel time, the greater the rate, the
greater the speed of the empty path.
Turning coefficient: the greater the turning speed, the greater the turning factor.
Delay before feeding: Delay before a single feeding when using a feeding device, the user can arrange such
processes as picking at this time.
Delayed feeding: refers to the feeding device will be delivered to the material in place after a stable period of time
before processing.
