execution completed, program execution abnormal and other most commonly used laser states,
and machine Internal ambient temperature, internal ambient humidity, dew point, external 0-10V,
light output frequency, light output duty cycle, light pulse width, laser water flow, output optical
cable water flow and other data. These status and data refresh time intervals should not exceed
300ms.
Laser usage time display: including today's turn-on time, today's light-emitting time,
cumulative turn-on time, and cumulative light-emitting time.
4.7.2 The alarm interface
All the alarm information of the current laser is displayed on the alarm interface, and the
alarm information is updated in real time.
4.7.3 About

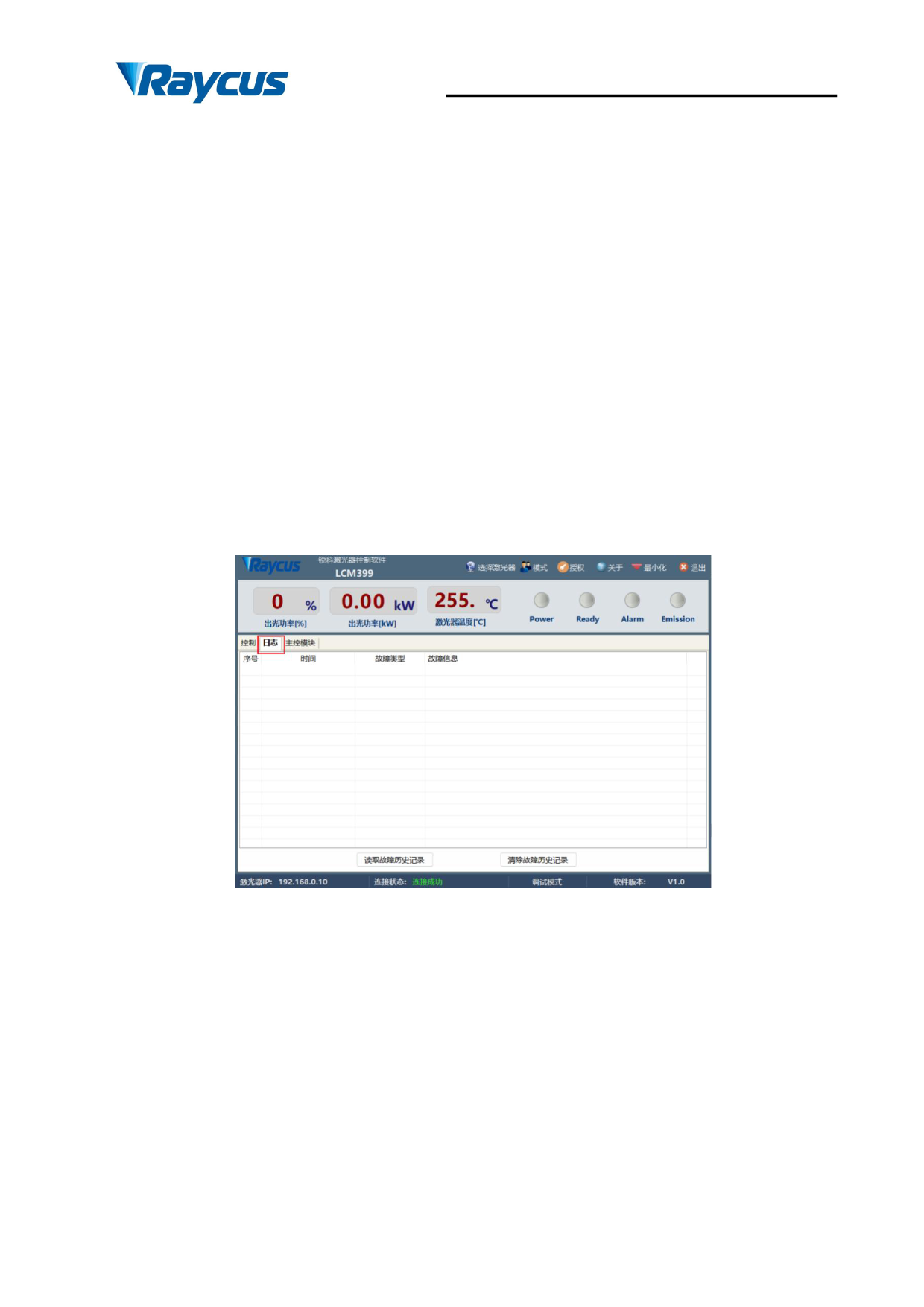

Figure 12The alarm interface
The laser time, model, serial number, master control serial number, key version number and
system information are displayed in the interface，when the about interface is opened, the upper
computer software reads them from the master control module once.
