Wuhan Raycus Fiber Laser Technologies Co., Ltd.
User Guide of RFL- RFL-C3000S-CE

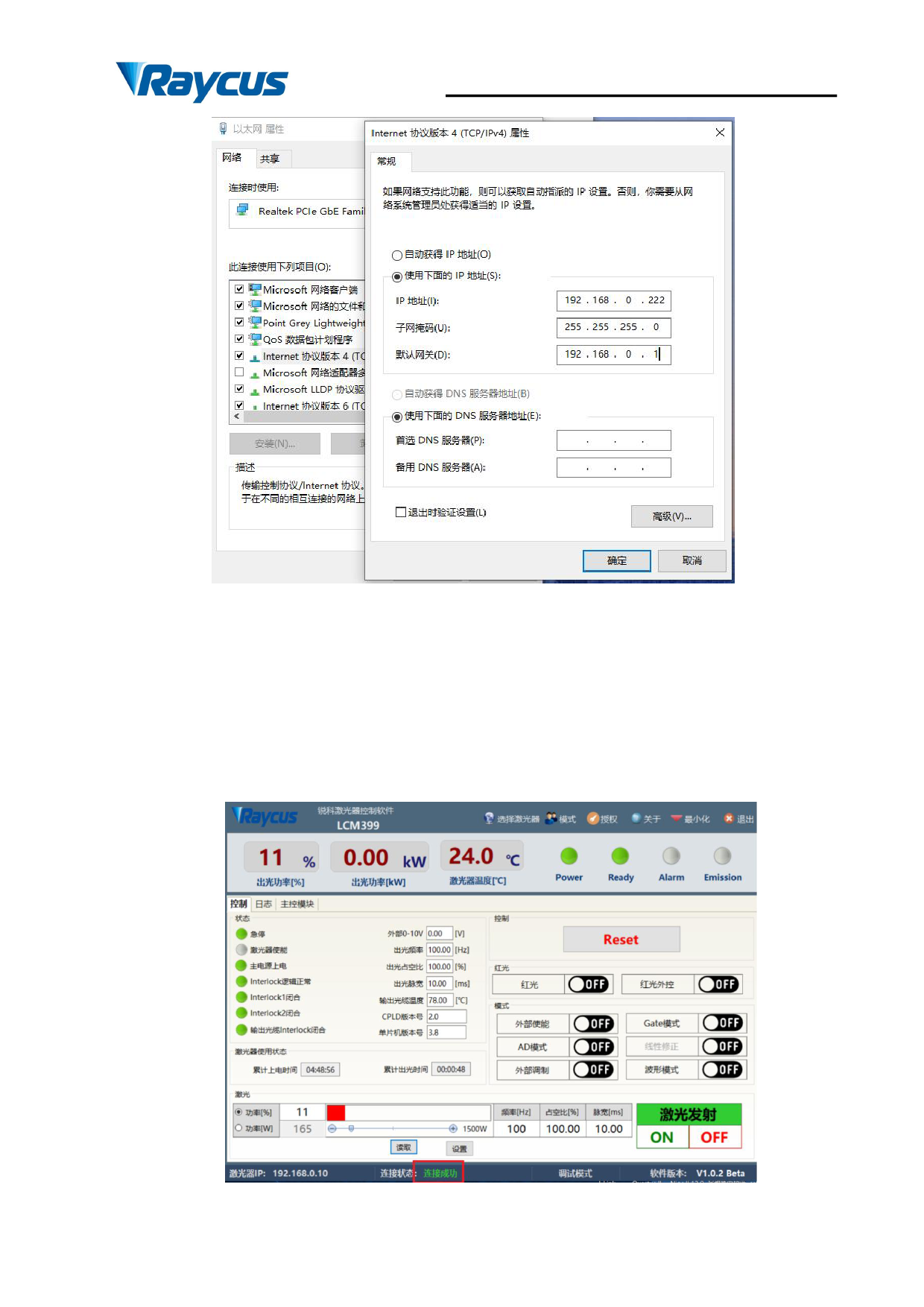

Figure 9 Steps of Ethernet Connection
When the IP setting is completed, turn on the host computer, and the connection status in
the corresponding text box on the host computer interface displays: connected, indicating that the
microcontroller program is running normally and the communication connection is normal. The
display interface is shown in Figure 10 below.
25
    "
