Fan

For Fan shape, you can adjust the Outer radius, Thickness, Rotation angle

and the Sweep angle.

Arrow

For Arrows, you can adjust the Arrow Length, Angle, Tail Length and

Width, Cap Length and Wing angle.

Registration Marks

For Registration Marks, you can adjust the Size, and the registration mark

type (Diamond or Round).

DesignCentral for

Advanced Border

Border Types

Adding Borders to the Border List

1 Create the border and save the file.

2 Select Advanced Border tool.

3 Click Add button on DesignCentral.

4 Select the file saved in step 1 and click Open.

To delete a border from the list, delete the file from Border folder.

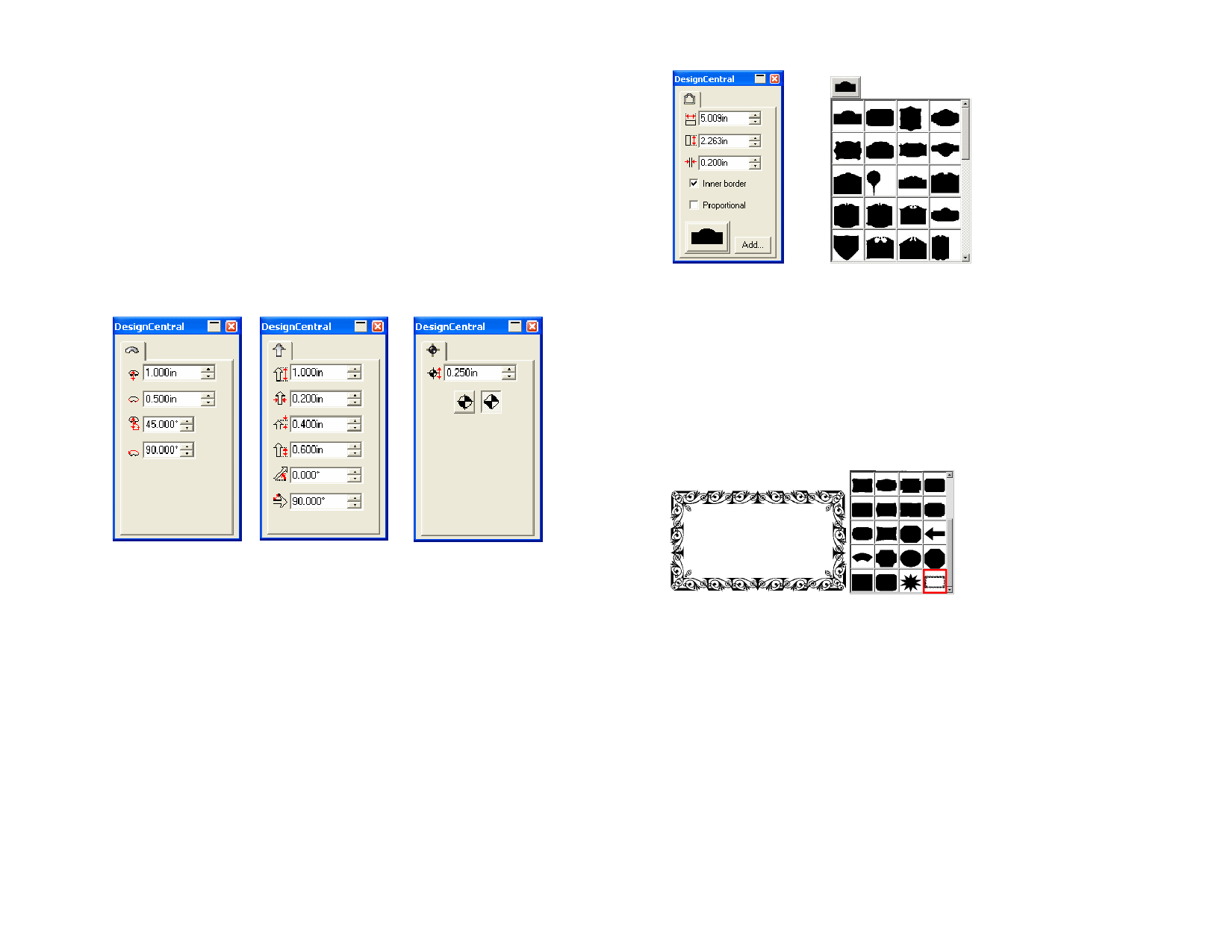

DesignCentral for Fan DesignCentral for Arrow DesignCentral for

Registration Mark

Advanced Borders

For Advanced Borders, you can adjust the Border Type, Height or Width

and Inner Border Width.

Click the button on left hand side of the Add button to show a list with all

available border types. Click the Proportional check box to keep the

border width and height ratio constant.

Border List with a new custom border

Parametric Shapes

You can adjust the Height or Width, and several parameters for parametric

shapes.

Click the Edit button to show a dialog box where you can edit all

parameters.
