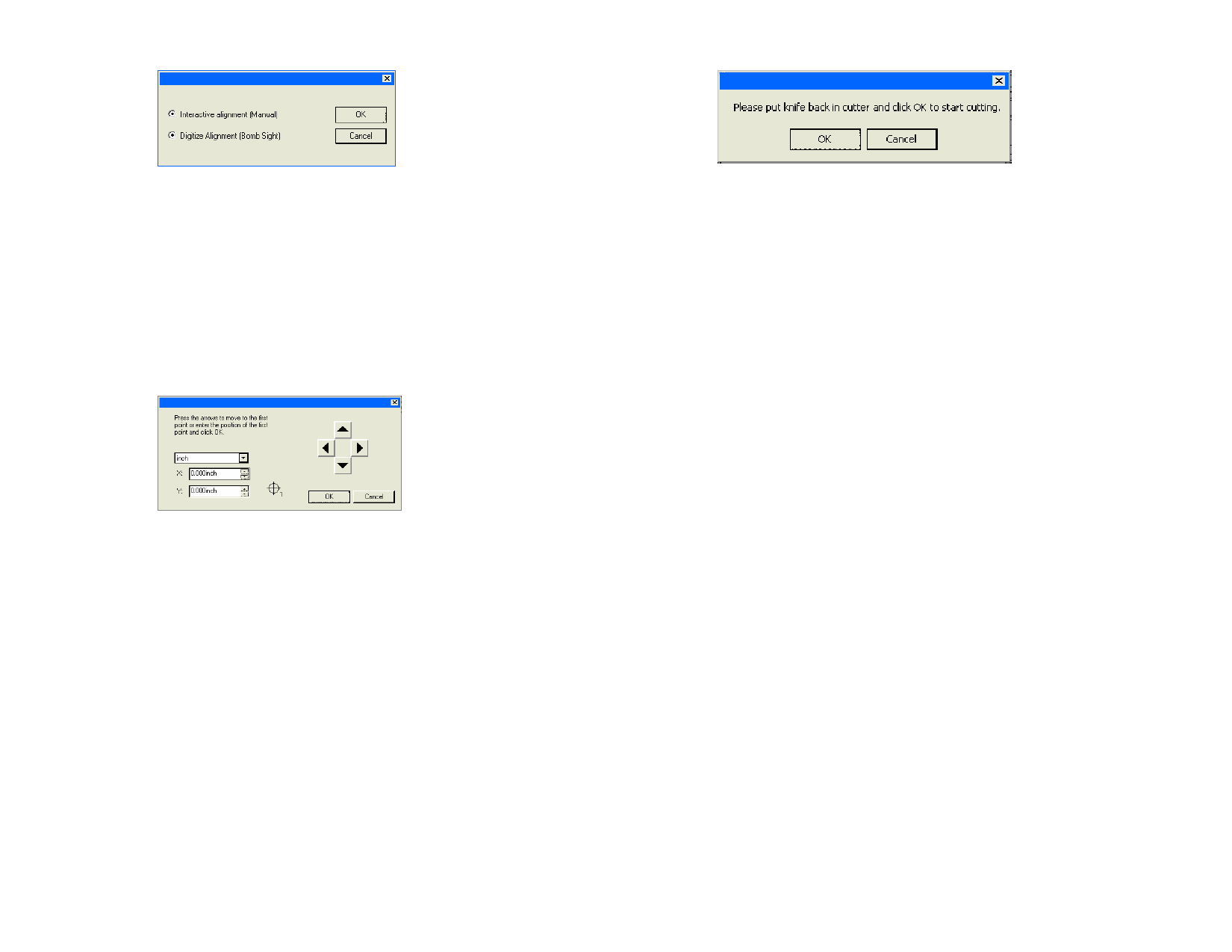

4 Select the method to be used to position the cut head over the

registration marks and click OK.

Interactive

alignment

You will position the cut head over the registration

marks using software controls.

Digitize

alignment

You will position the cut head over the registration

marks using the controls on the face of the cutter.

This option is only available when a bi-directional

communications protocol such as serial or USB is used.

a To indicate the position of the registration marks using

Interactive alignment:

i Use the arrow buttons to position the head of the

cutting device over registration mark 1 and click

OK.

ii Repeat for all additional registration marks.

b To indicate the position of the registration marks using

Digital alignment:

iii Use the front panel controls on the cutter to position

the head of the cutting device over registration

mark 1. Press Enter on the cutting device, then

click OK.

iv Repeat for all additional registration marks.

5 Make sure the knife is loaded into the cutter, then click OK to

cut the contour portion of the design.

157
