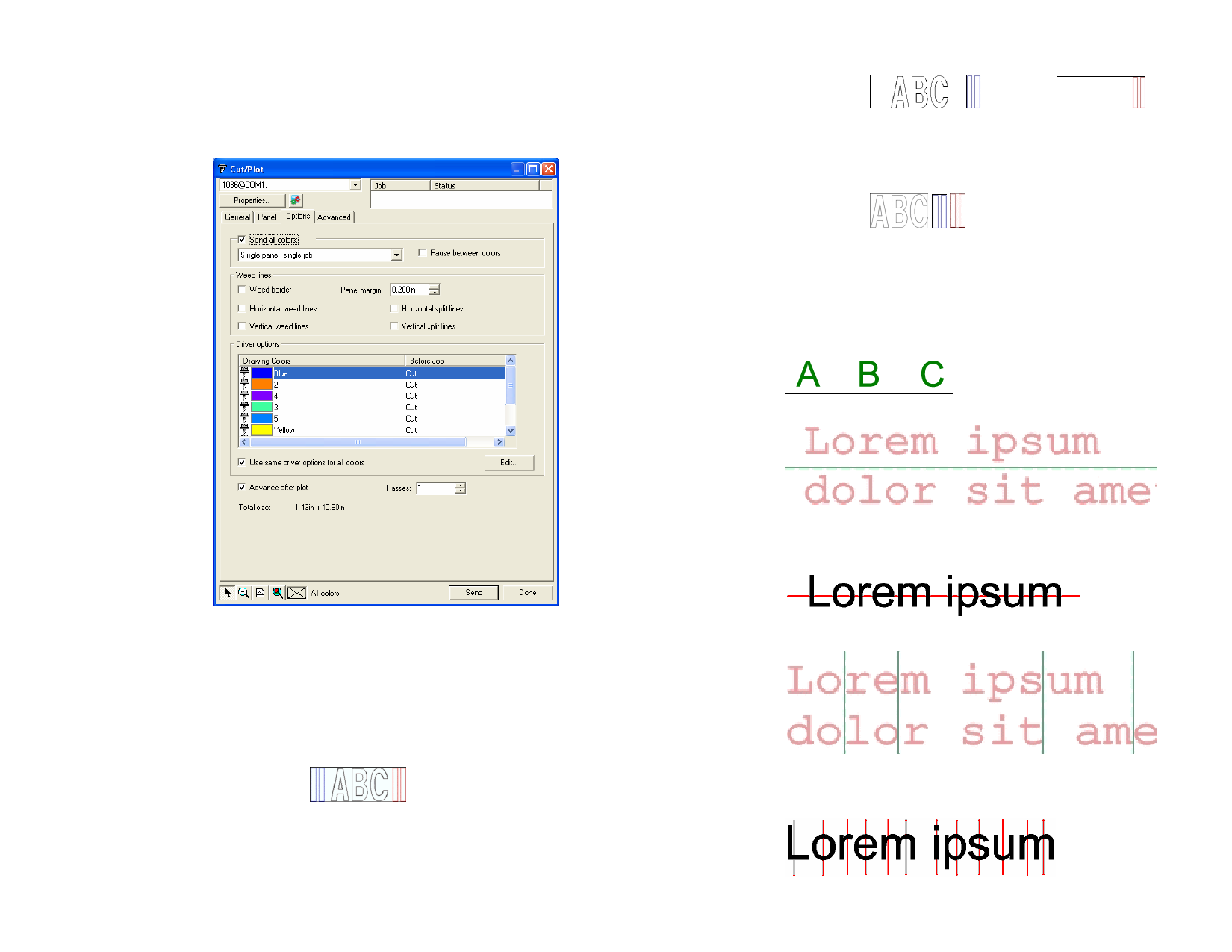

Cut/Plot Dialog – Options Tab
The Options tab allows you to set a number of commonly used options for
cutting jobs.
Adjust the following parameters:
Send all colors
Check Send All Colors option to process each color
separately. When this option is checked you can select how
each color will be processed:
Single
Panel,
Single Job
The job is sent as a single file and processed
using the same panel size for all colors.
Single
Panel,
Separate
Jobs
A separate job file is created for each color but
they are still processed using the same panel size
for all colors.
© 2006 SA International
Separate
Panels,
Separate
Jobs
A separate job file is created for each color and
you can define the panel size for each color
separately.
Pause between
colors
Weed border
Selects whether the Production Manager should pause after
each color is processed, allowing you to change the pen or the
media. This option can only be selected when Send all colors is
checked.
Cuts a border with the specified Panel margin around all
objects in the selected color.
Horizontal
weed lines
Adds weed lines between lines of text (or objects).
Horizontal
split lines
Adds horizontal lines that run down the center of the rows of
text, but do not cut the text. The split lines are interrupted
where they cross the text.
Vertical
weedlines
Adds weedlines between characters (or objects).
Vertical split
lines
Adds vertical lines that run through characters but do not cut
the text. The split lines are interrupted where they cross the
text.
143
