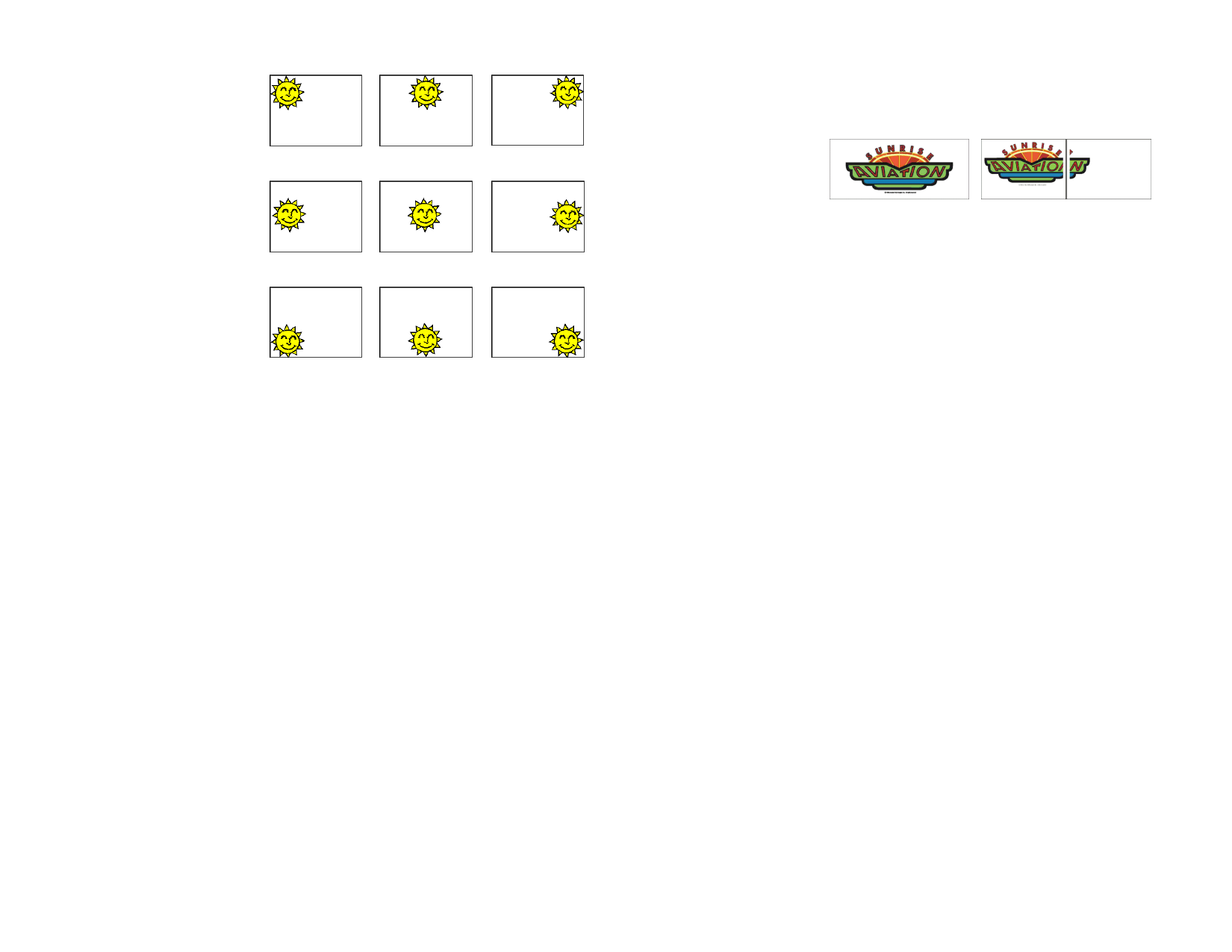

Top Left
Top Center
Top Right
Left Center
Center
Right Center
Print Options
Tiling
Bottom Left
Bottom Center Bottom Right
Custom
Position the design precisely by
specifying the following offsets:
Offset X
The distance from the right
edge of the design to the
right edge of the printable
area of the page.
Offset Y
The distance from the
bottom edge of the design
to the bottom of the
printable area of the page.
Check to enable the following options:
Selection Only the selected portions of the design
only
will be output.
Border
The border of the design area is printed.
Wireframe The vector objects are printed without
fill.
Substrate Prints the substrate color, if any, along
with the design.
Guides
Prints the guides along with the design.
Grid
Prints the grid along with the design.
Template Applies a layout template to the output.
The Tiling options allow you to divide the output into
tiles and set the overlap between the tiles.
© 2006 SA International
Print tiled Check to tile the output
pages
Overlap Sets the overlap between the tiles.
Advanced
Original Design
Tiled output
Check to enable the following advanced options:
Use device The margin information from the
margins printer driver is used.
Ignore
overprint
Any overprinting that was set up in the
design stage will be ignored. This can
be useful if you want to save the time
and output media needed to do
overprinting.
If you check Ignore Overprint, your
output will automatically be changed so
that it will not use features that depend on
overprinting. For example, output that
had been set up to use color trapping will
now output untrapped.
133
