Export User Set

Perform the following task to export User Set to the local PC.

Save the current camera settings to a specific User Set. See User Set Control for details.

  1. Connect the camera to the Software.
  2. Click to open the File Access window.

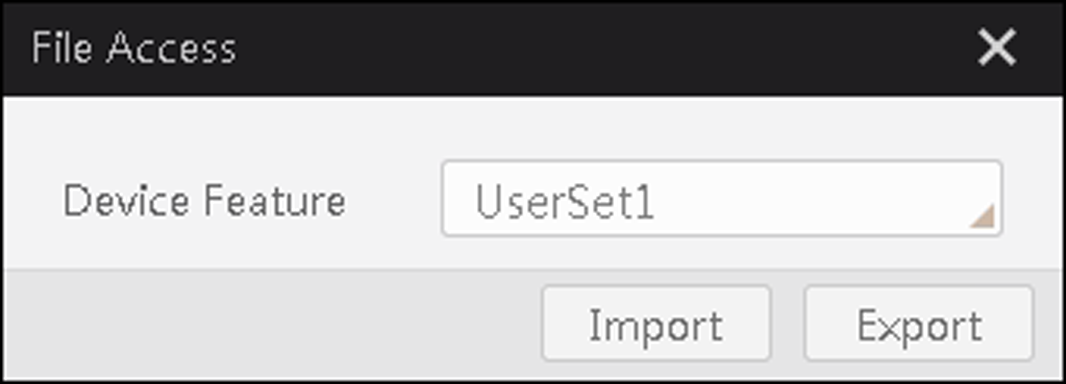

    Figure 1 File Access Window
  3. Select a User Set or DPC from the drop-down list.
  4. Click Export to export the User Set to the PC as a binary file.
    Note:

    • The file format is mfa by default.

    • The name of the exported file is "Camera Model_Camera Serial Number_User Set Name" by default. Example: MV-CA023-10GC_00682345470_UserSet2.mfa

    A prompt will appear when the Use Set is exported.

  5. Optional: Click View to go to the directory of the exported file.
