imaki CG60 EX CG100 EX CG130 EX Cutters To cut a contour (Page 19 / 27) Contour Cutting Guide

Mimaki CG-60 EX, CG-100 EX, CG-130 EX Cutters

To cut a contour using the Mimaki CG-60 EX, CG-100 EX, or

CG-130 EX cutters:

1. If you are connecting to your cutter via USB, install the

Mimaki USB driver.

2. Add a setup for the cutter to PhotoPRINT or Production

Manager.

3. Depending on the application, do the following:

• In PhotoPRINT, add the job and open Job Properties.

• In Flexi, design the job and open the RIP and Print

dialog.

4. Set Registration Mark to Mimaki EX.

5. Print the job and load the printed output into the cutter.

6. Send the cut job.

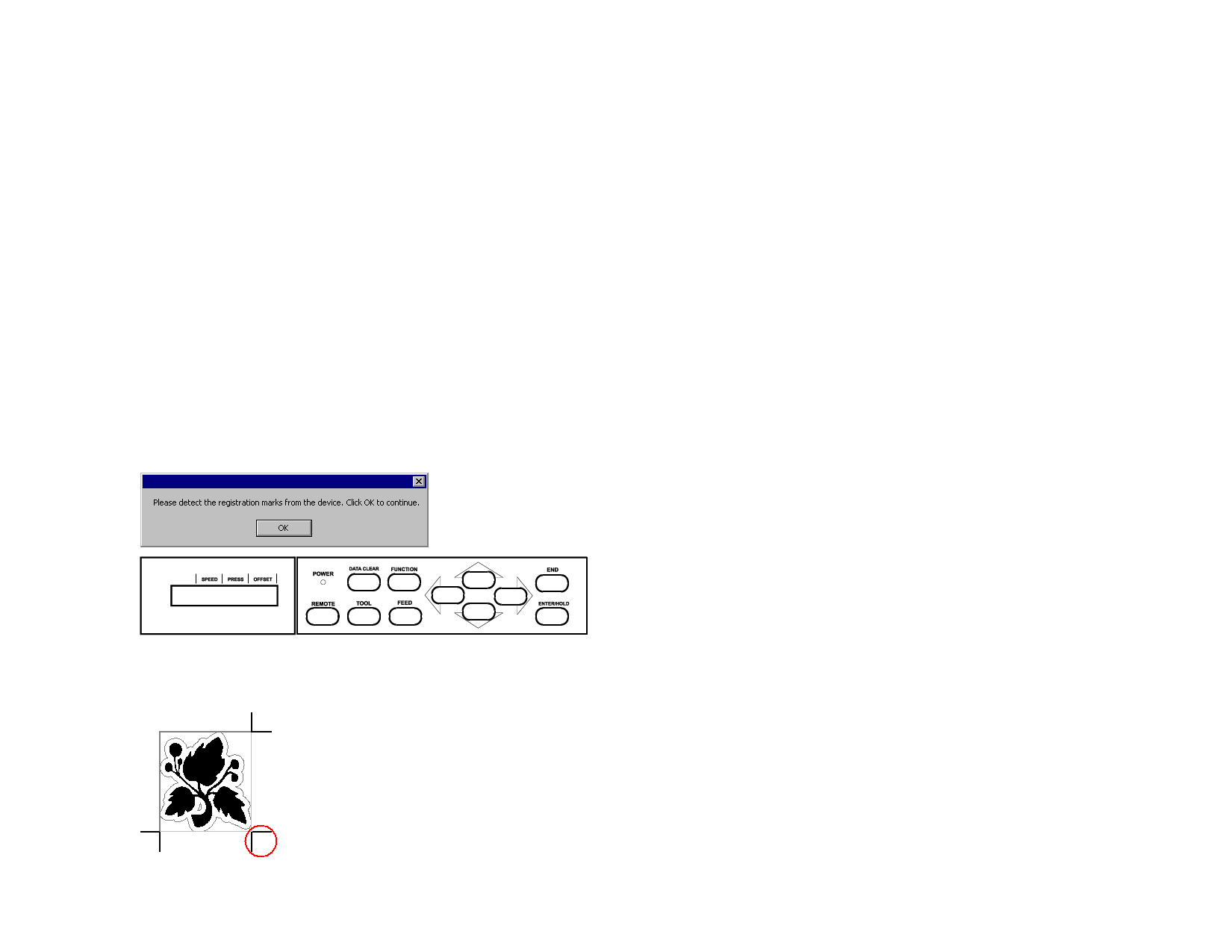

7. Align the cutting head over the first automatic registration

mark (lower right if not marked) using the controls on the

front panel of the cutter.

8. Click OK in the software.
