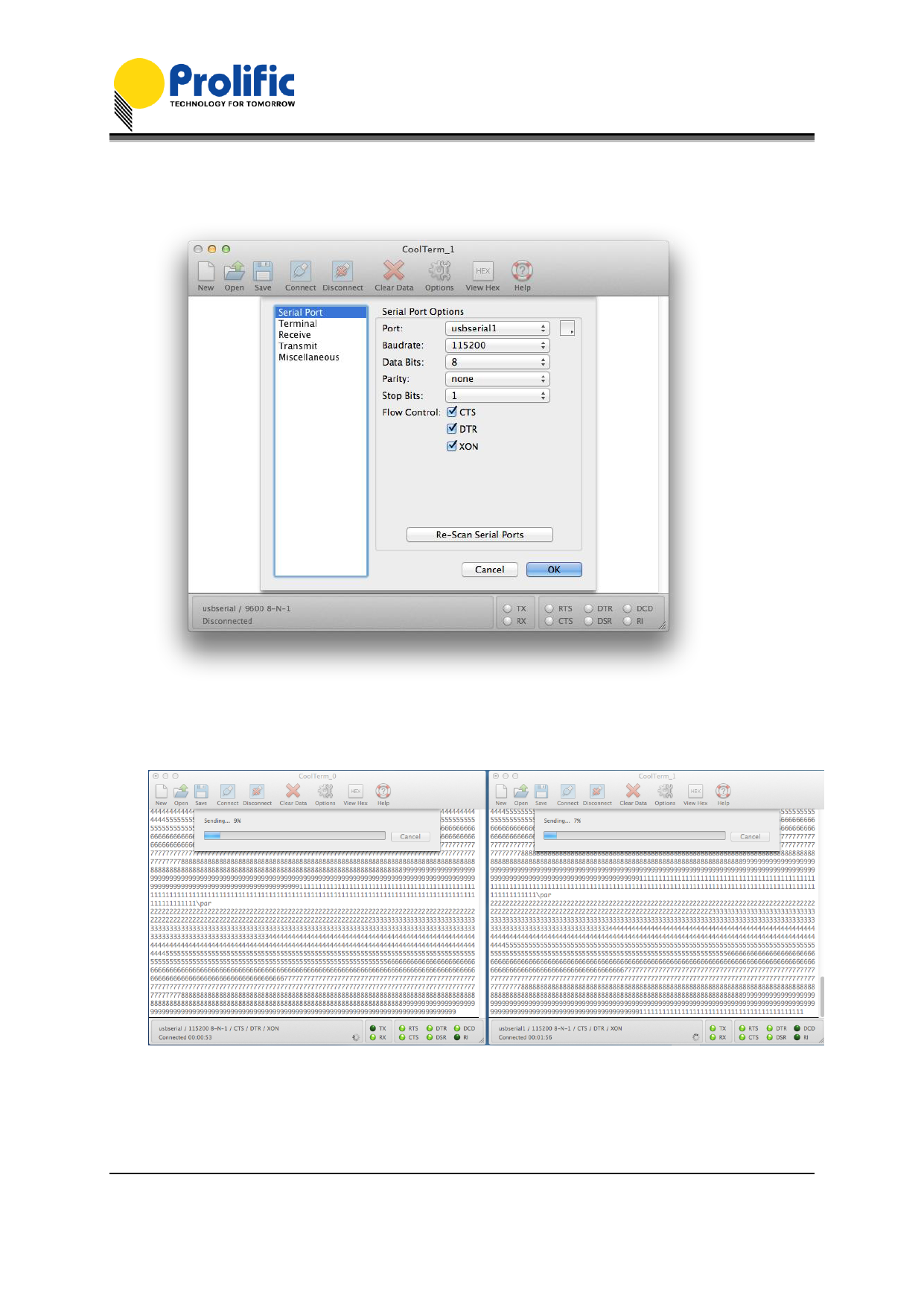

4. Set the same serial port settings to match the other PL2303 cable. Click OK and click Connect to
open the port.
5. Use a serial null modem cable to connect between the two PL-2303 cables. Click
‘Connection-Send Textfile’ to transfer text file. You can also send text file from the other PL2303
cable at the same time.
6. You can also simply plug a loopback connector (TX-RX short) to the PL-2303 serial port and
type the keyboard to show the send characters on the local window display.
