6.2 System wiring

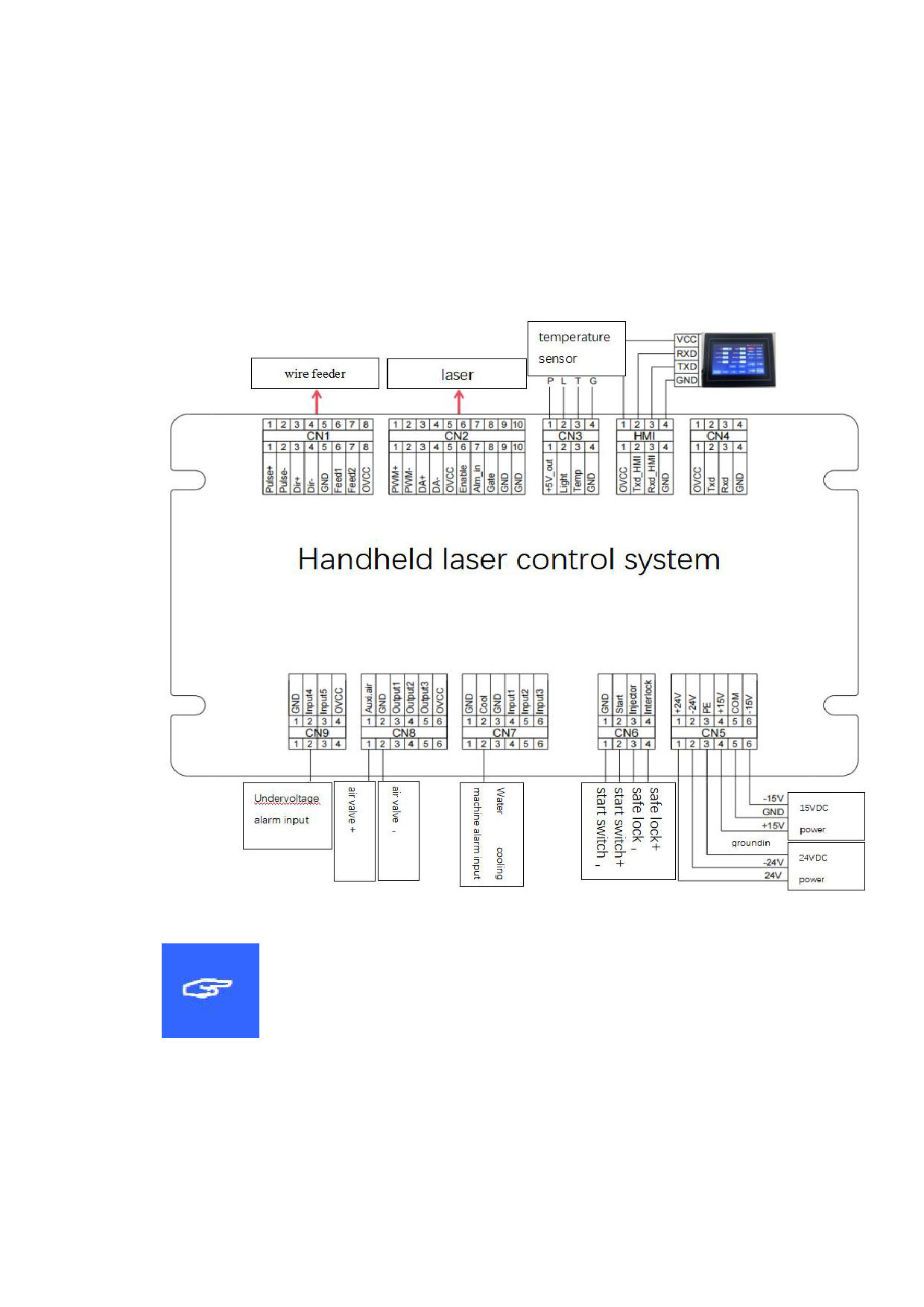

The following figure is a schematic diagram for wiring of the whole
system. Refer to the schematic diagram for system wiring. Refer to
relevant chapters for detailed interface definition.
Note:
Do not connect the reserved pin in the mainboard.
