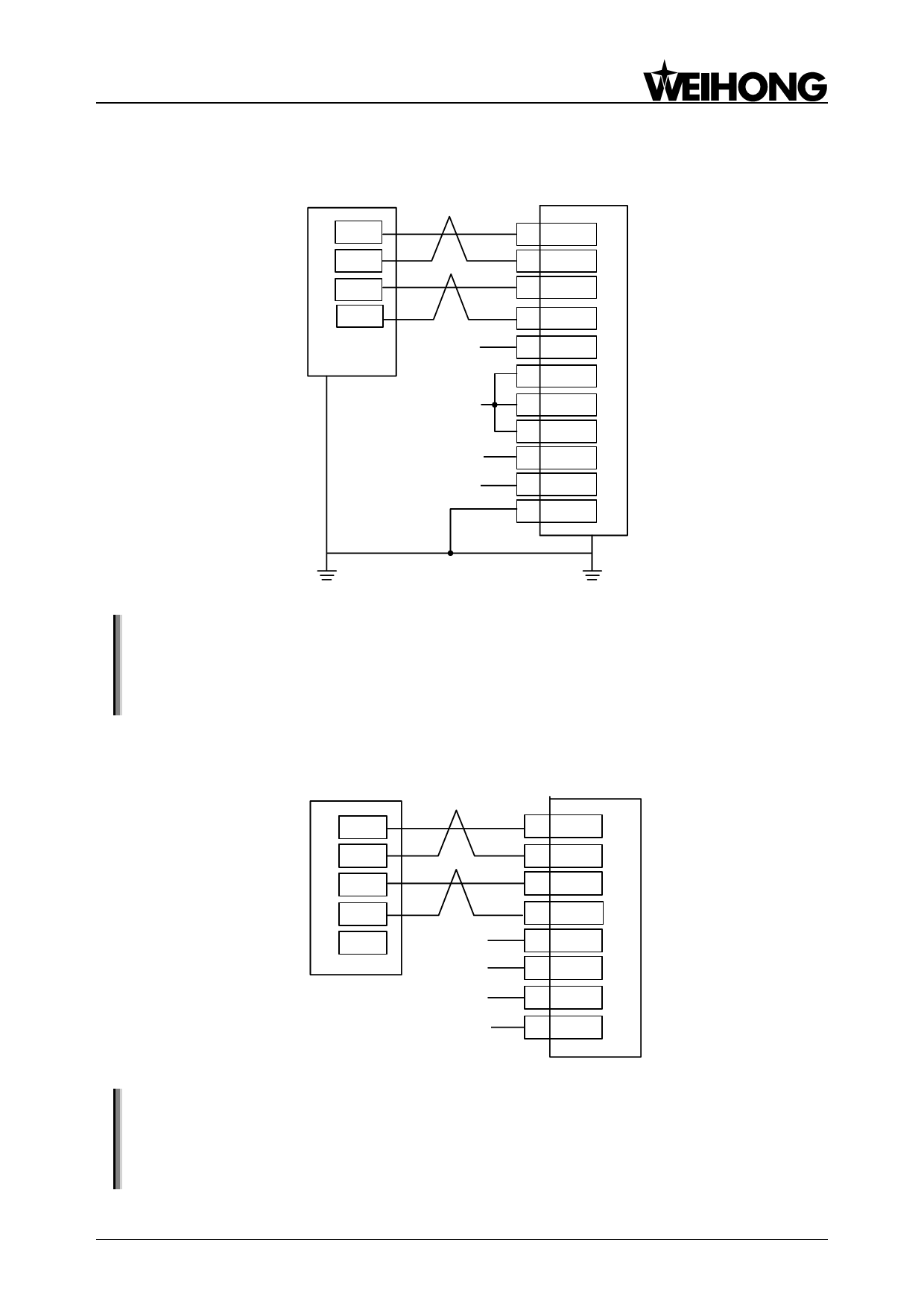

11.2.4. Wiring Diagram of PANASONIC MINAS_A4 Servo Driver
NK105ControlBox PANASONIC MINAS_A4 ServoDriver
P-
P+
D-
D+
24V
COM
Joint Drag Line of Z-axis ( Red)
Joint Drag Line of Z-axis ( Black)
44 PULSH1
45 PULSH2
46 SIGNH1
47 SIGNH2
7 COM+
41 COM-
29 /SRV-ON
13 GND
11 BRKOFF+
10 BRKOFF-
50 FG
Note:
Fig. 11-4 Wiring diagram of NK105 and PANASONIC MINAS_A4 servo driver
The wirings of X, Y and Z axes are the same, except that only Z axis has two brake drag lines which are
connected with relay to control brake.
11.2.5. Wiring Diagram of MITSUBISHI MR-E Servo Driver
NK105 Control Box
MITSUBISHI MR_E ServoDriver
D-
D+
P-
P+
+5V
24V
COM
Joint Drag Line of Z-axis (Red)
Joint Drag Line of Z-axis (Black)
24 NG
25 NP
23 PP
22 PG
1 VIN
13 SG
12 MBR
13 SG
Note:
Fig. 11-5 Wiring diagram of NK105 and MITSUBISHI MR-E servo driver
The wirings of X, Y and Z axes are the same, except that only Z axis has two brake drag lines which are
connected with relay to control brake.
