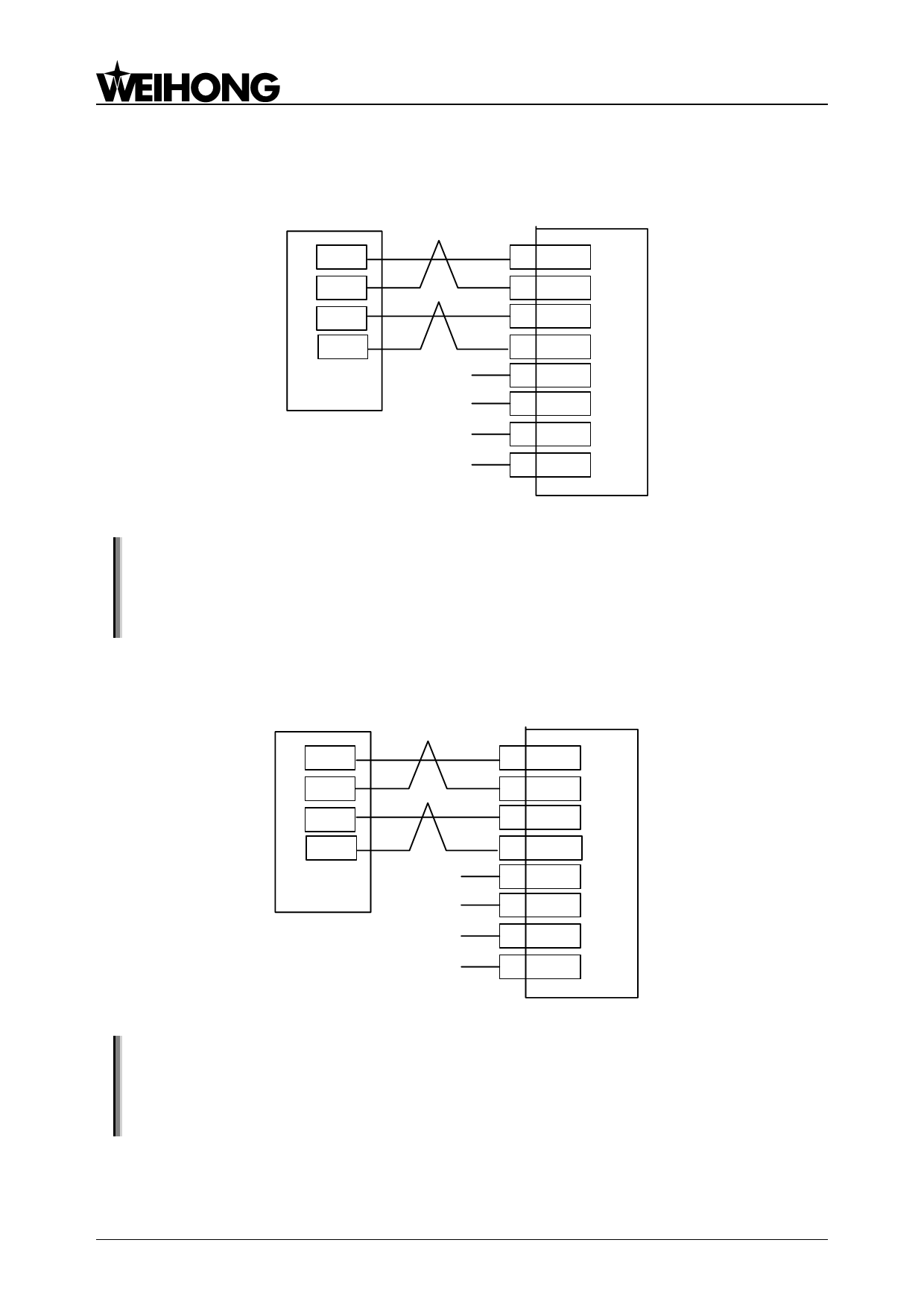

11.2.2. Wiring Diagram of YASKAWA Σ–Ⅱ Servo Driver
NK105 Control Box
YASKAWA ∑-Ⅱ Servo Driver
D-
D+
P-
P+
24V
COM
Joint Drag Line of Z-axis (Red)
Joint Drag Line of Z-axis (Black)
12 *SIGN
11 SIGN
7 PULS
8 *PULS
47 VIN
1 SG
29 SRDY+
30 SRDY-
Note:
Fig. 11-2 Wiring diagram of NK105 and YASKAWA Σ–Ⅱ servo driver
The wirings of X, Y and Z axes are the same, except that only Z axis has two brake drag lines which are
connected with relay to control brake.
11.2.3. Wiring Diagram of DELTA ASDA_A Servo Driver
NK105 Control Box
DELTA ASDA_A Servo Driver
D-
D+
P-
P+
24V
COM
Joint Drag Line of Z-axis (Red)
Joint Drag Line of Z-axis (Black)
36 /SIGN
37 SIGN
41 PULSE
43 /PULSE
11 COM+
45 COM-
1 DO4+
26 DO4-
Note:
Fig. 11-3 Wiring diagram of NK105 and DELTA ASDA_A servo driver
The wirings of X, Y and Z axes are the same, except that only Z axis has two brake drag lines which are
connected with relay to control brake.
