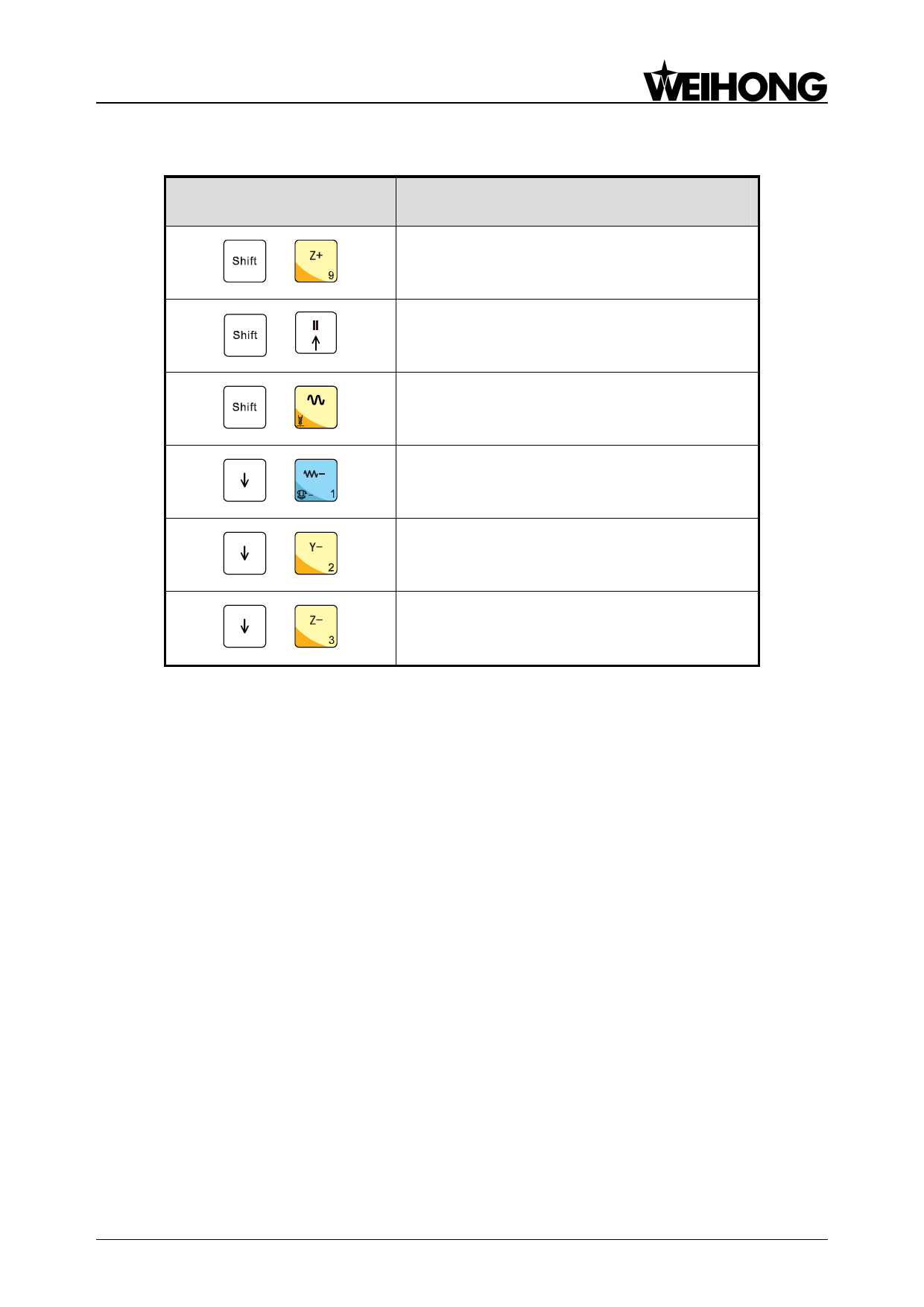

10.5. Keypresses
Key icon
Function
Floating presetting
+
Setting tool length
+
+
0
Measuring tool length
Opening and closing of cylinder 1
+
Opening and closing of cylinder 2
+
Opening and closing of cylinder 3
+
10.6.Operating Instructions
For the concrete operations, refer to Chapter 9.6.
10.7.Motion Process
During machining, in case of meeting T1 command, the system will move the Z axis to upper
position of tool change, close cylinder 2 and cylinder 3, move the Z axis to upper position of tool
change, open cylinder 1, change current tool No. to 1, and call the position offset of tool 1 for
machining; in case of meeting T2 command, the system will close cylinder 1 and cylinder 3, move Z
axis to upper position of tool change, open cylinder 2, change current tool No. to 2, an call the position
offset of tool 2 for machining; in case of meeting T3 command, the system will move the Z axis to
upper position of tool change, close cylinder 1 and cylinder 2, move the Z axis to upper position of tool
change, open cylinder 3, change current tool No. to 3, and call the position offset of tool 3 for
machining; after machining finishes, the system will close the current cylinder and spindle.
