0
Floating presetting
Cylinder 1 is opened
+
Cylinder 2 is opened
+
Remarks:
¾ Tool No. is displayed after “Jog” in the processing interface.
¾ By pressing
+
several times, cycle is opened, cylinder 1 is closed, and tool No. 1 is
displayed; by pressing
+
several times, cycle is opened, cylinder 2 is closed, and
tool No. 2 is displayed.
¾ Pressing (0,0)
will start the corresponding spindle according to the current tool No.. For
example, if tool No. 1 is the current tool, by pressing (0,0)
the current tool, spindle 2 is opened.
, spindle 1 is started; if tool No. 2 is

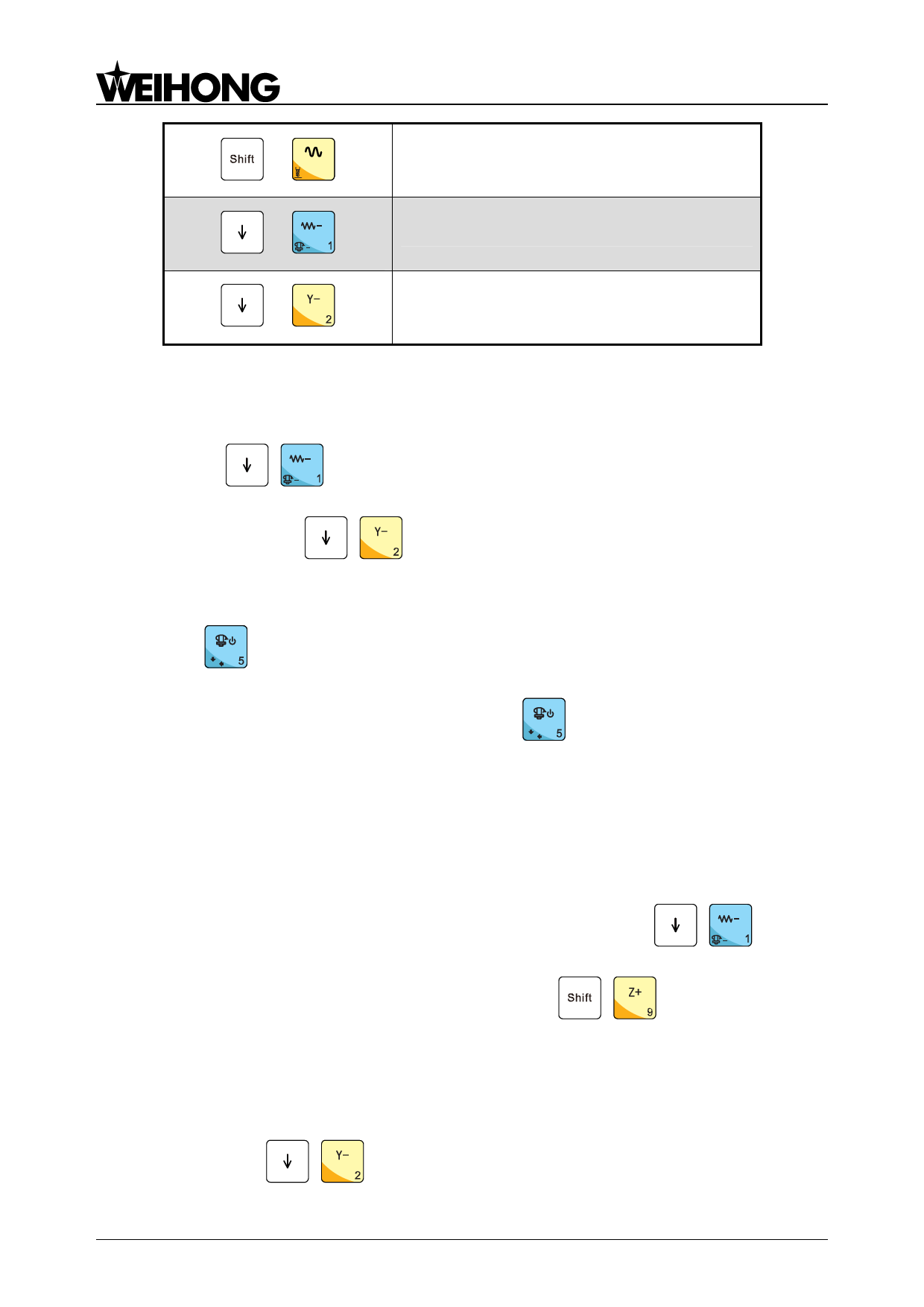

9.6. Operating Instructions
Operating Instructions with a Tool Presetter
The first step is to measure the tool length. Under Jog mode, pressing
+
will open
cylinder 1. Put the tool presetter under the tool, and then press
+
. At this time, the Z axis
will move downwards slowly until touching the presetter, and then it will move up a little distance,
“Measure tool length successfully” displayed. Pressing [OK] key will successfully set cylinder 1 by the
system automatically recording the current tool length into Z offset of current tool No.. Switch to
cylinder 2, then press
+
to close cylinder 1 automatically, move up the Z axis to upper
