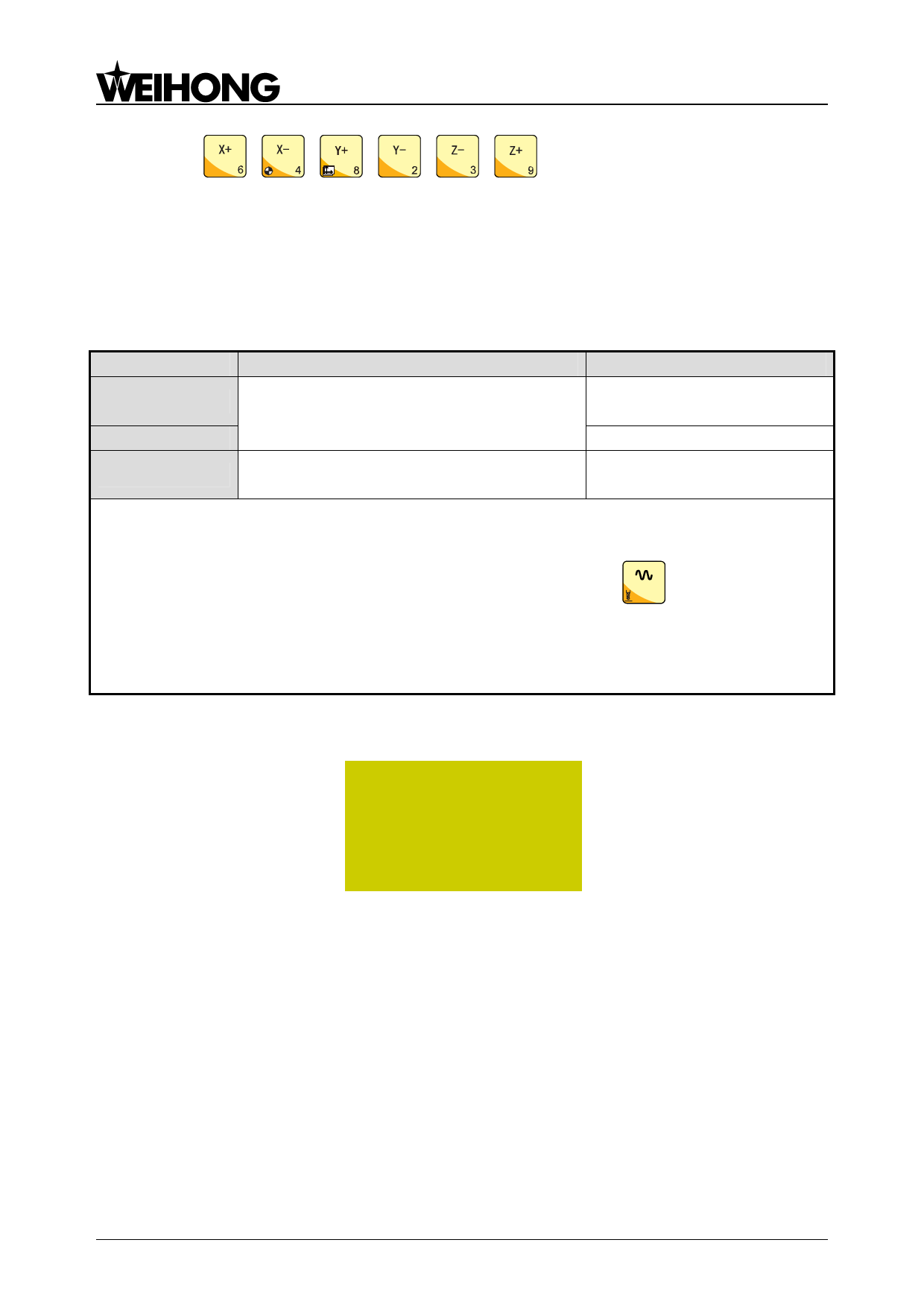

direction key（
,
,
,
,
,
）. For the setup of step, refer to chapter
8.1.2. This motion mode is suitable for fine tuning of the position of mechanical coordinate.
8.1.2. Parameter Setting of Manual Processing
Basic parameters of manual processing include: manual high speed (i.e. “High” shown in the
processing page), manual low speed (i.e. “Slow” shown in the processing page), X\Y step and Z step.
Parameter
Meaning
Setting range
MSpd (High)
Two types of speed under manual processing, 0.06~max. speed of machine
deciding the axis motion speed during manual tool
MSpd (Slow) processing
0.06~manual high speed
Step XYZ
The motion distance of the corresponding axis 0.001~10000mm
when a direction key of X\Y\Z is pressed once
The max. speed of machine tool is related with the setting of pulse equivalent. For the concrete
expression, see chapter 6.1.2.
Manual high speed and manual low speed can be switched by pressing
0.
The concept of stepping (also called as gridding in some other systems) is introduced for the purpose
of processing and debugging accuracy. When stepping is current manual motion mode, the step is
the motion distance of the corresponding axis when a direction key of X\Y\Z is pressed once.
Under main interface, press [OK] key to enter parameter setting interface of manual processing,
as shown in Fig. 8-2.
MSpd
StepXY
StepZ
File
3000/1500
10.000
1.000
<No File>
Fig. 8-2 Manual parameter setting interface
Press “Up” or “Down” key to select the desired parameter, and then press [OK] for confirmation
after modification. Note that modification should be within parameter range.
Current file name is displayed at the bottom line. Press “Up” or “Down” key to move the cursor to
this line, and then press [OK] key to enter the file list of C disk, as shown in Fig. 8-3. Under this
interface, you can only load these files, unable to delete or copy them.
