自行车.dxf
FLOWER.G
√
海马.nc
√
U：
①Ld②De③Copy
√ indicates this
file is currently
being selected
U: indicates current files
are in USB flash disk
C: indicates current files
are in the Local disk
Press shortcut keys 1, 2, and 3 to load, delete or copy a
file accordingly,
1: after finish, enter the main interface automatically.
2 and 3: after finish, press [OK] for confirmation, still
remaining in the current interface.

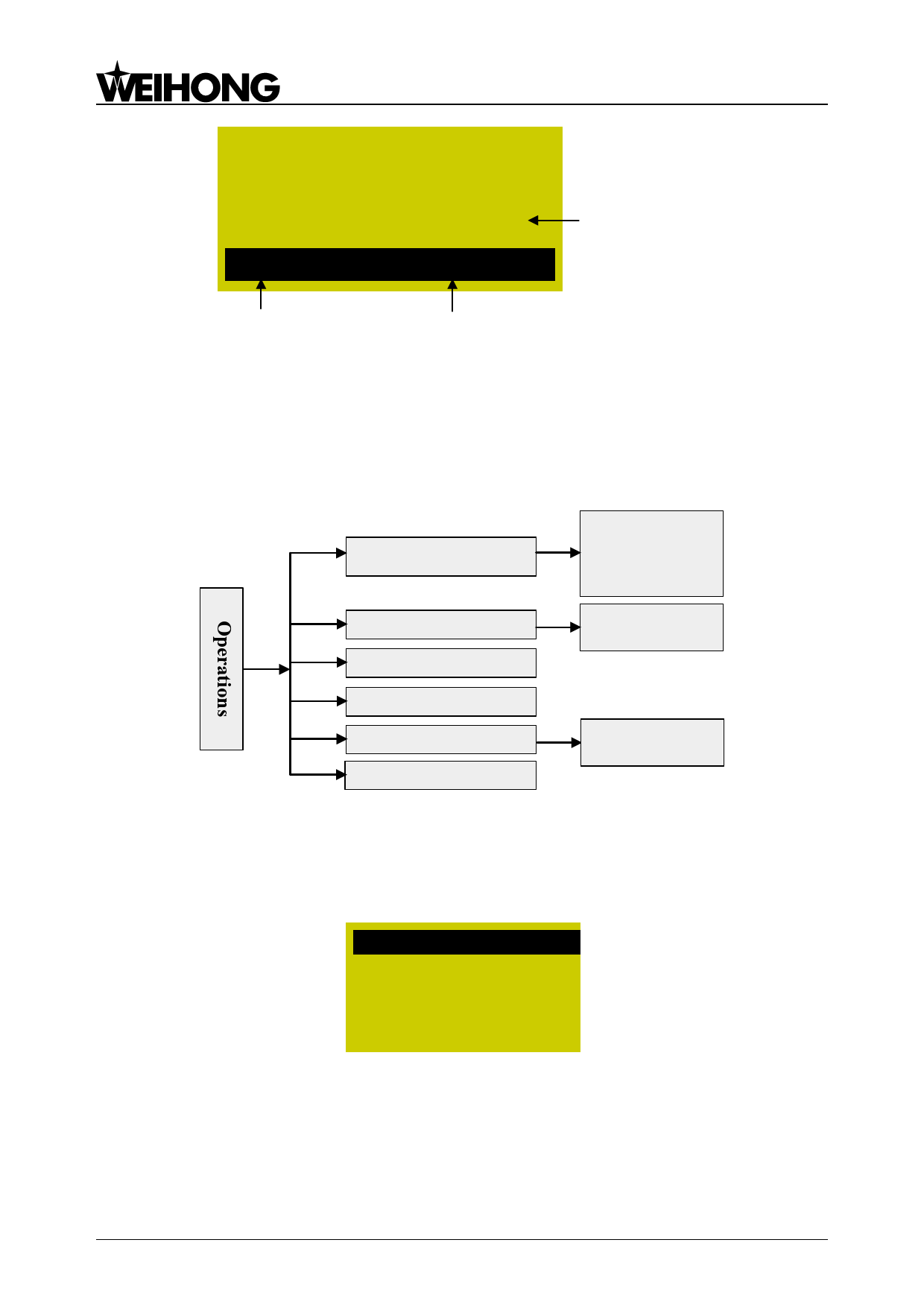

Fig. 7-3 File list interface graphical representation
7.3. Operations
The sub-menus under [Operations] are shown in Fig. 7-4.
1. Back REF Point
2. Rect Machining
3. Select Line No.
4. Machining Info
5. Park MCS Site
6. Select WCS
All Home
Z Home
X Home
Y Home
1. Params Setting
2. Load the Last
1. Park Mode
2. Park Site
Fig. 7-4 Submenus under [Operations]
Press “Menu” key→ select 3. Operations by pressing “Up” or “Down” key, and then press [OK]
key to enter its sub-menus, in which select the desired menu item also by “Up” or “Down” key. The
interface is as shown in Fig. 7-5.
1. Back REF Point
2. Rect Machining
3. Select Line No.
4. Machining Info
7.3.1.
Fig. 7-5 Operations interface
Backing to Mechanical Origin
For the detailed introduction, see chapter 6.4.
