EasyRoute Control Panel is based on Weihong NK105 CNC Integrated Machine OEM http://am.co.za/router/panel
上海维宏电子科技股份有限公司
Weihong Electronic Technology Co., Ltd.
Key icon
Key name
Override+
Y+

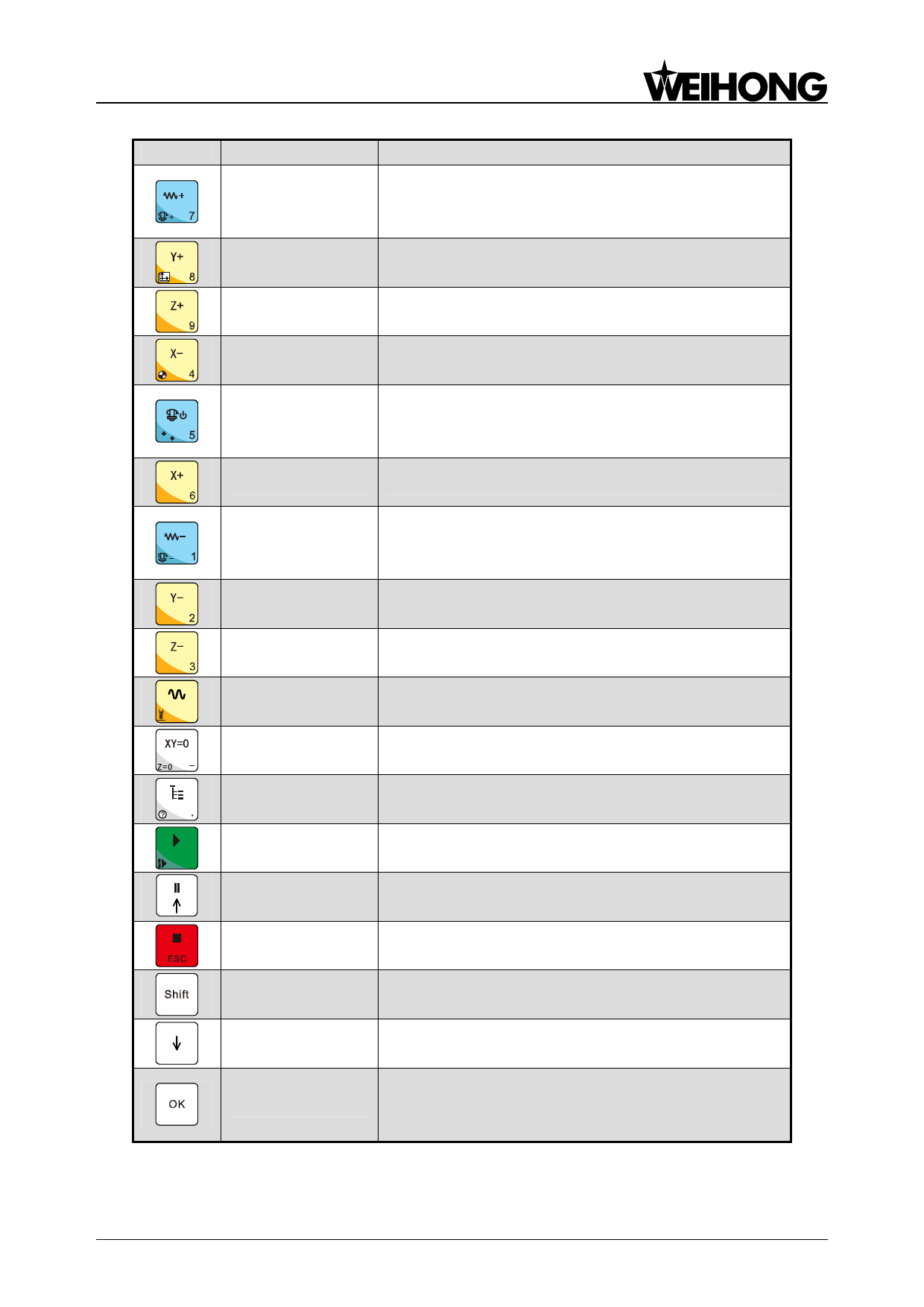

Table 3 Single-key function table
Function
Increase of feedrate override; input of number 7;
increase of spindle gear with the help of auxiliary key
when spindle port has input
Positive shift of Y axis; input of number 8; switch
between MCS and WCS with the help of auxiliary key
Z+
Positive shift of Z axis; input of number 9
X-
Negative shift of X axis; input of number 4; returning to
mechanical origin with the help of auxiliary key
Start or stop of spindle under manual mode; input of
Spindle start/stop number 5; backing to workpiece origin with the help of
(0,0)
auxiliary key
X+
Positive shift of X axis; input of number 6
Override-
Decrease of feedrate override; input of number 1;
decrease of spindle gear with the help of auxiliary key
when spindle port has input
Y-
Negative shift of Y axis; input of number 2
Z-
Negative shift of Z axis; input of number 3
Switch between manual high/low speed; input of
Speed switchover
0
number 0; tool presetting with the help of auxiliary key
Backing to origin
Backing to origin of X and Y axes; input of minus;
backing to origin of Z axis with the help of auxiliary key
Menu
Entering menu page; input of decimal point; entering
image update page at the time of system start-up
Start
Start key; breakpoint resuming with the help of auxiliary
key
Up
Suspend processing; up direction key
ESC
Stop processing; cancellation of various selections,
inputs and operations
Shift
Auxiliary key
Down
OK
Down direction key
Entering manual high/low speed adjustment page
under menu page; confirmation of various selections,
inputs and operations
