5. Functions & Operation Methods of Panel Keys
5.1. Brief Introduction

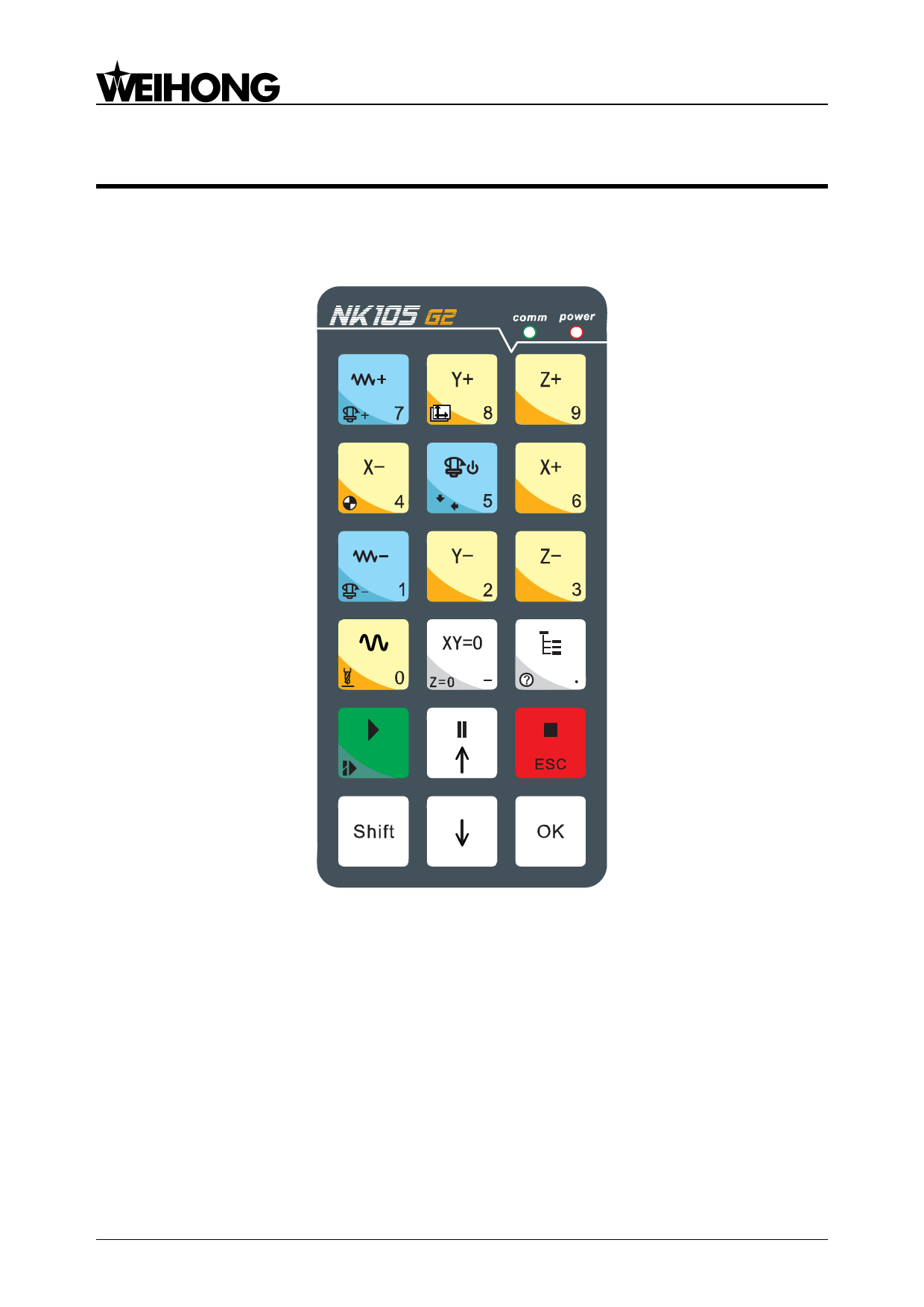

The layout of panel keys is as shown in Fig. 5-1.
(0,0)
Fig. 5-1 Panel keys of NK105
5.2. Function Information of Each Single-key
NK105 operation panel is both light and concise. With a single-key or combination key, all the
operations can be realized. The usage of each single-key is: press a key lightly to complete the called
function and then release the key, except that mode shift key is valid when pop-up. Function
information of each single-key is as Table 3.
