When a machine tool is running, if user presses the combination key of “pause during
processing”, the system will enter into PAUSE state and wait for further instruction. At this time, user
can press the “Start” key to make the system enter into “Running” state, or press the “Stop/ Cancel”
key to make the system stop.
LOCK State
Lock state is an internal state occurring at the time of software limit operation.
4.2. Machine Coordinate System
Coordinate system is a terminology that is used to describe the motion of the machine tool. For
the sake of unification, standard coordinate system adopts the right-hand rule. See Fig. 4-1.

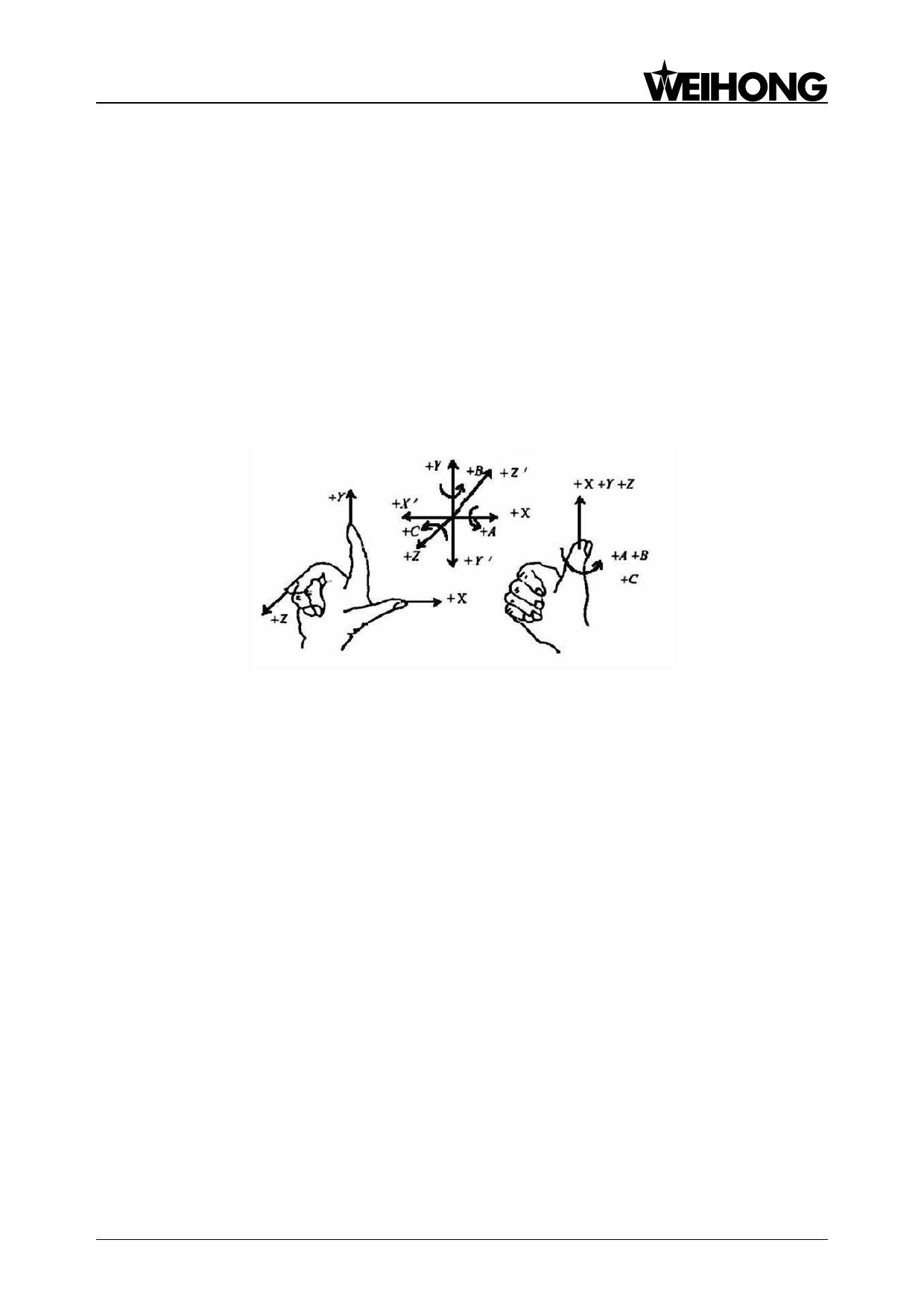

Fig. 4-1 The coordinate system conforming to right-hand rule
For milling machines, the direction of machine axes is decided by both the type of machine tool
and the layout of each component. The basic coordinate axes of milling machines are X-axis, Y-axis,
and Z-axis:
——Z axis is coincidental with spindle axis and the direction of the cutter moving away from
workpiece is its positive direction (+Z).
——X-axis is perpendicular to Z-axis and parallel to the clamped surface of workpiece. For the
single column vertical milling machine, if user faces the spindle and looks in the column direction,
right moving direction is its positive direction (+ X).
——X-axis, Y-axis and Z-axis constitute the coordinate system adhering to the right-hand rule.
Mechanical Coordinate System
Mechanical coordinate system is a set of fixed right-hand coordinate system. Its coordinate origin
is a fixed position that corresponds to the machine tool. Therefore, at any time, a certain point in
space can be exclusively fixed by mechanical coordinate system.
The mechanical coordinate system requires the machine available of function of [back to
mechanical origin], or this concept will only appears in the software.
