2. Wiring Method
2.1. Terminal Specification of NK105 Control Box
NK105 terminals are inlayed at the up and down ends of the control box. The detailed wiring
diagram is as shown in Fig. 2-1.

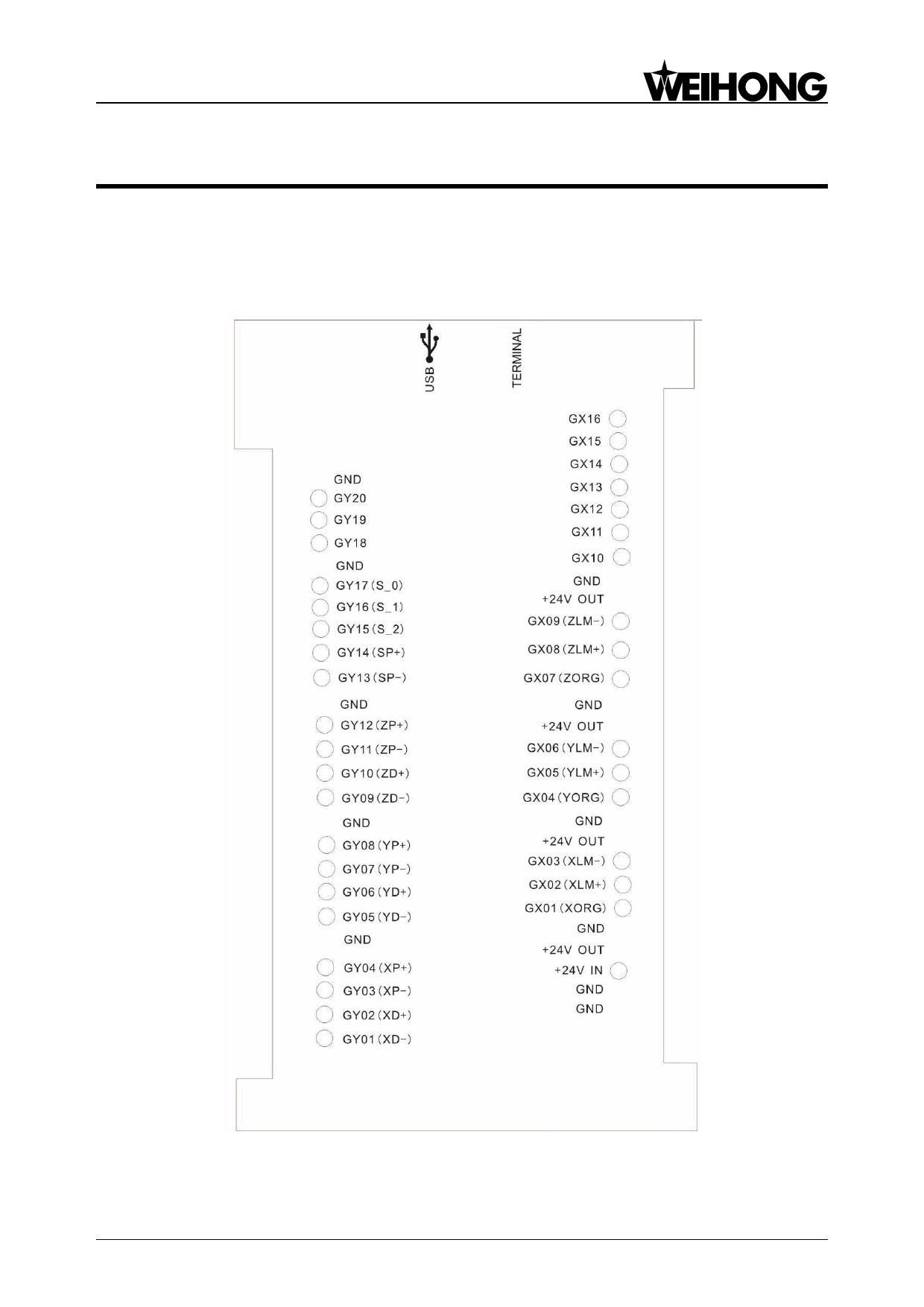

Fig. 2-1 Terminals on NK105 control box
The detailed explanation of terminal pin signals is as shown in Table 1 and Table 2.
