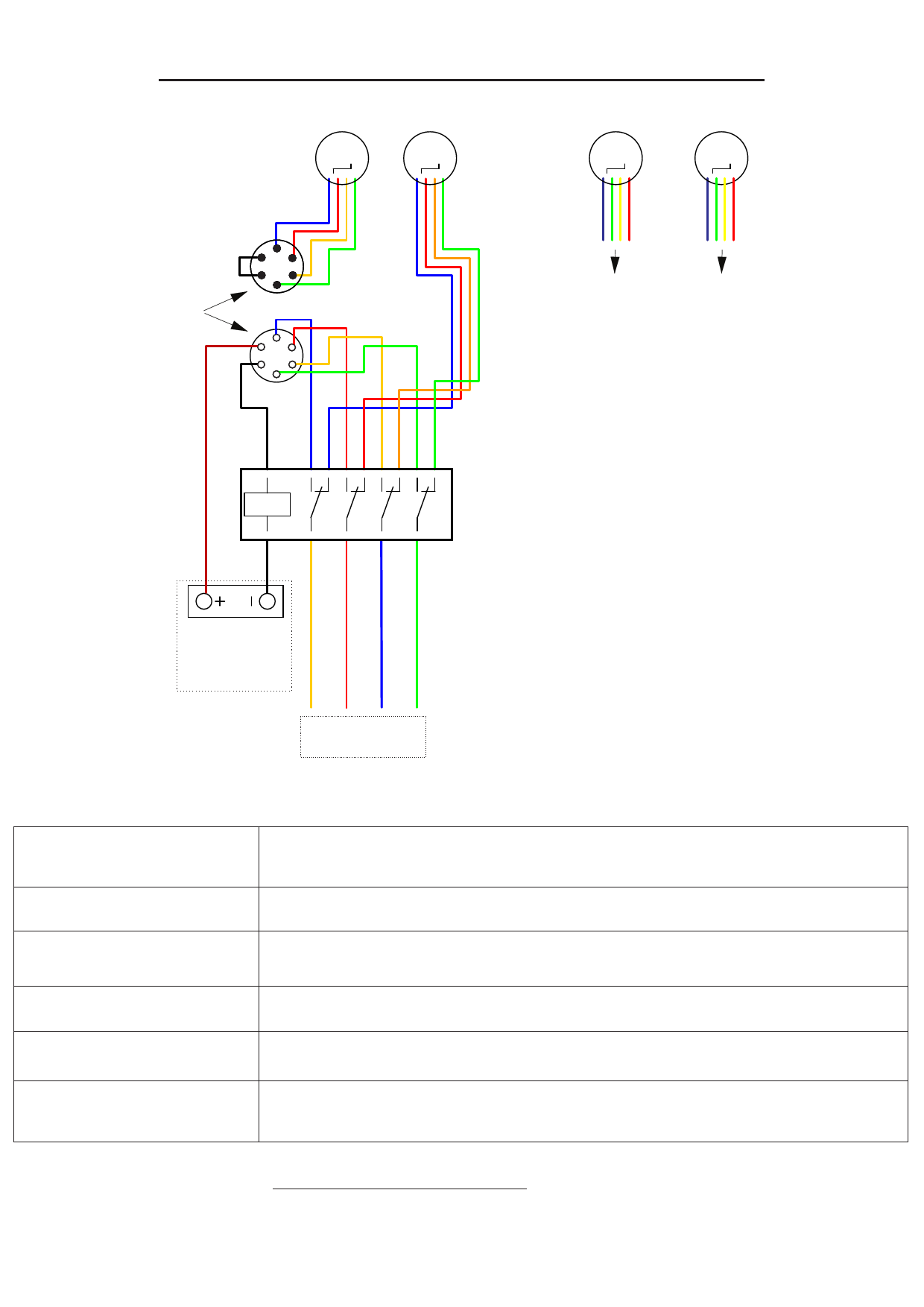

DIY Router Rotary Wiring Diagram
Rotary
M
X-Axis
M
Y-Axis
M
Z-Axis
M
6 Pin
Connectors
Male and Female
To Y and Z
Stepper
13
15 263748
24 Vdc
4 Pole Relay
14
9
10
11
12
24 Vdc
Power
Supply
A+
A-
B+ B-
X Axis
Stepper Driver
Installation Requirements*
ROTARY-900/100
Φ100mm Center Driven Rotary 900mm with Motor, for EasyRoute-Express DIY Routers
(SKU:R-6090DIY/15) and All 150mm+ Gantry CNC Routers Rotary itself)
AE-RELAY/GS4
Generic 4 Poles Relay, 24VDC GS MY4N Coil Non-Latching Relay
AE-RELAY/GS4B
AE-CONNECTOR/GX15-6/F
Generic 4 Poles Relay Socket Base 14A 14 PIN Screw Terminals, Support GS2/GS4
Relays
Generic GC15-6 6PIN Female Screw Aviation Connector
AE-CONNECTOR/GX15-6/M
Generic GC15-6 6PIN Male Screw Aviation Connector
AE-CABLE-RVV/10/4
1mm 4 Core RVV Copper Core PVC Sheath Flexible Cable, for General CNC Control
Signal and Power and this cable needed)
*Conveniently use the ROTARY-900/100/SET SKU for all the listed above.
