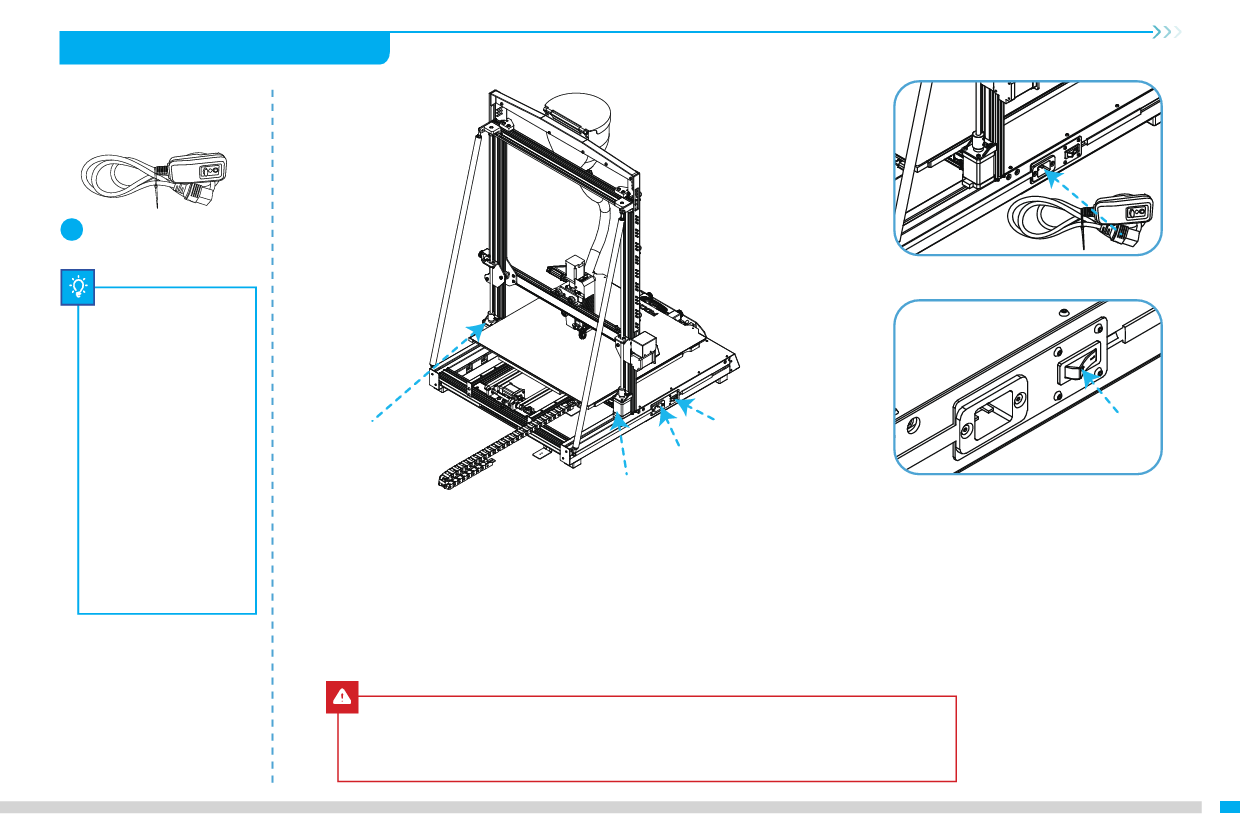

5. Cable Connection 设备接线
4 Power Cord｜电源线 x 1
&
Connect 连接
$
Reminder: Due to the
large power of the
equipment, it needs to
be equipped with a s
ocket with a current
value of not less than
16A that meets the
national standard.
温馨提示：由于设备功率
较大需要配备符合国家标
准电流值不低于16A的插座。
"
#
'
;
%
'
&
;
Press 按
A、16pin port cable (screw motor + CR-Touch + fan + nozzle thermocouple + thermistor).
16pin端口排线(螺杆电机+CR-Touch+风扇+喷嘴热电偶+热敏电阻)
B、14pin port cables (X-axis motor cable + X-axis limit switch). 14pin端口排线(X轴电机线+X轴限位开关)
C、Connect the screw component cable + screw extrusion motor wiring 连接螺杆组件排线+螺杆挤出电机接线
D、Connect Z-axis（Z1&Z2） motor cable 连接Z轴（Z1&Z2）电机线
E、Connect it to the power cord and turn on the power 连接电源线，打开电源
F、Press the power button and wait the display screen to start 按下开关按钮，等待显示屏启动
Caution/警告
● Do not connect or disconnect the cables when the machine is powered on.
当机器通电时，请勿连接或断开连接线。
10
    "
