Min speed: the minimum rotary speed of expansion axis.
Max speed: the maximum rotary speed of expansion axis.
Acc. time: Acceleration time needed when expansion axis moves from minimum speed to
maximum speed.
Goto start position after finished: The expansion axis will go back to the initial position
after finishing marker.
Zero: Whether current expansion axis has zero signal. When expansion axis hasn't enabled
zero signal, it can’t set up an absolute coordinates. Therefore, marking a set of parts require
adjusting site to make every processing stay in the same site. So, the system takes expansion axis
as default origin point before processing. After processing a workpiece, the system will move
expansion axis back. In this way each workpiece will process in the same site.
Speed of Go zero: the moving speed of expansion axis looking for zero signal.
Zero time out: Set the time of expansion axis finding zero point. If it overruns it, the system
will present “overtime”.

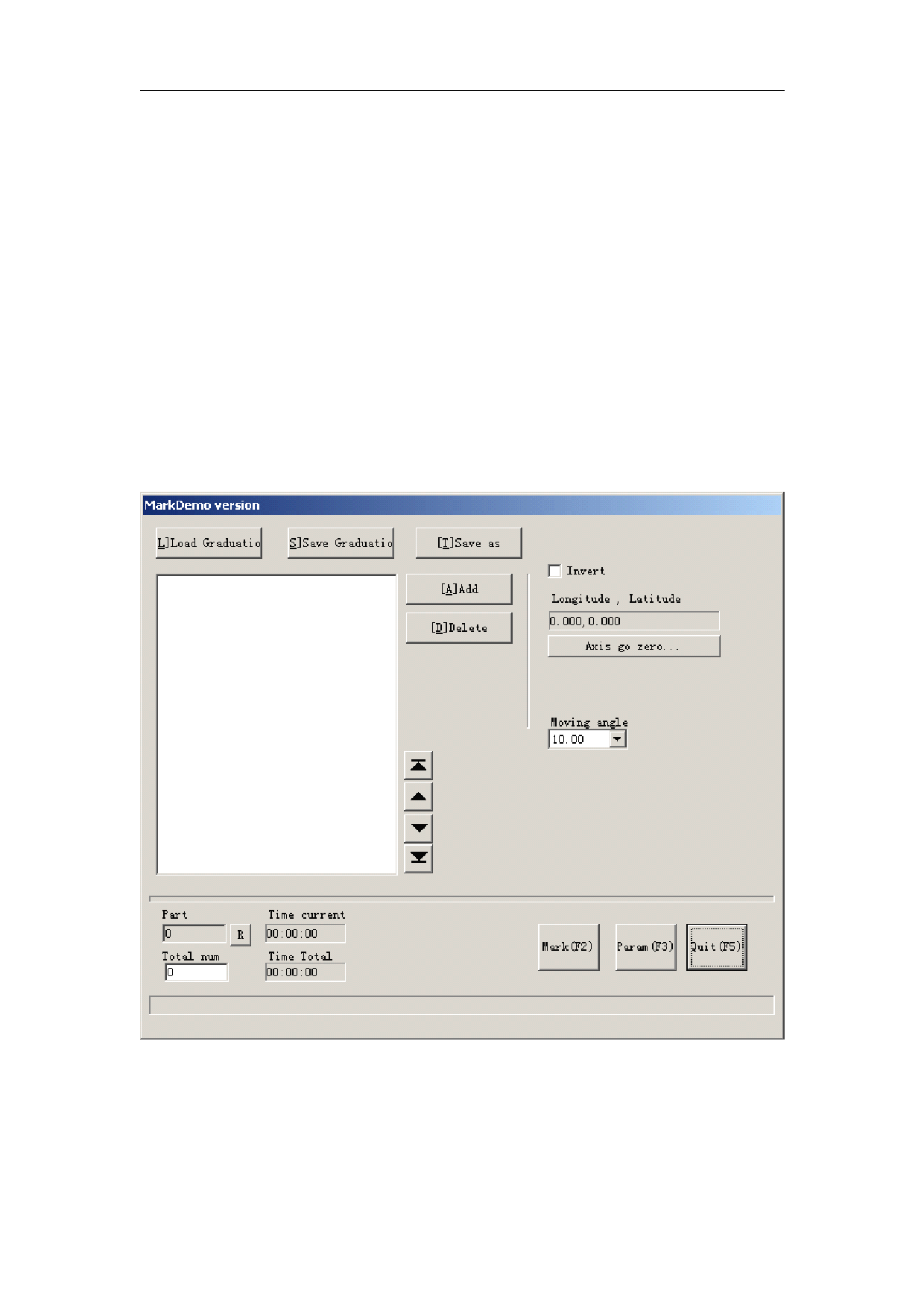

We can see “axis go zero” in the figure 8-11 when Select “zero”
Figure 8-11
Axis go zero…: It refers to current axis find zero signal automatically and reset coordinates
system.
for example：mark the national capital name：
Beijing：East longitude 116.46 degree，North latitude 39.92 degree
