EzCad2UNI User’s Manual

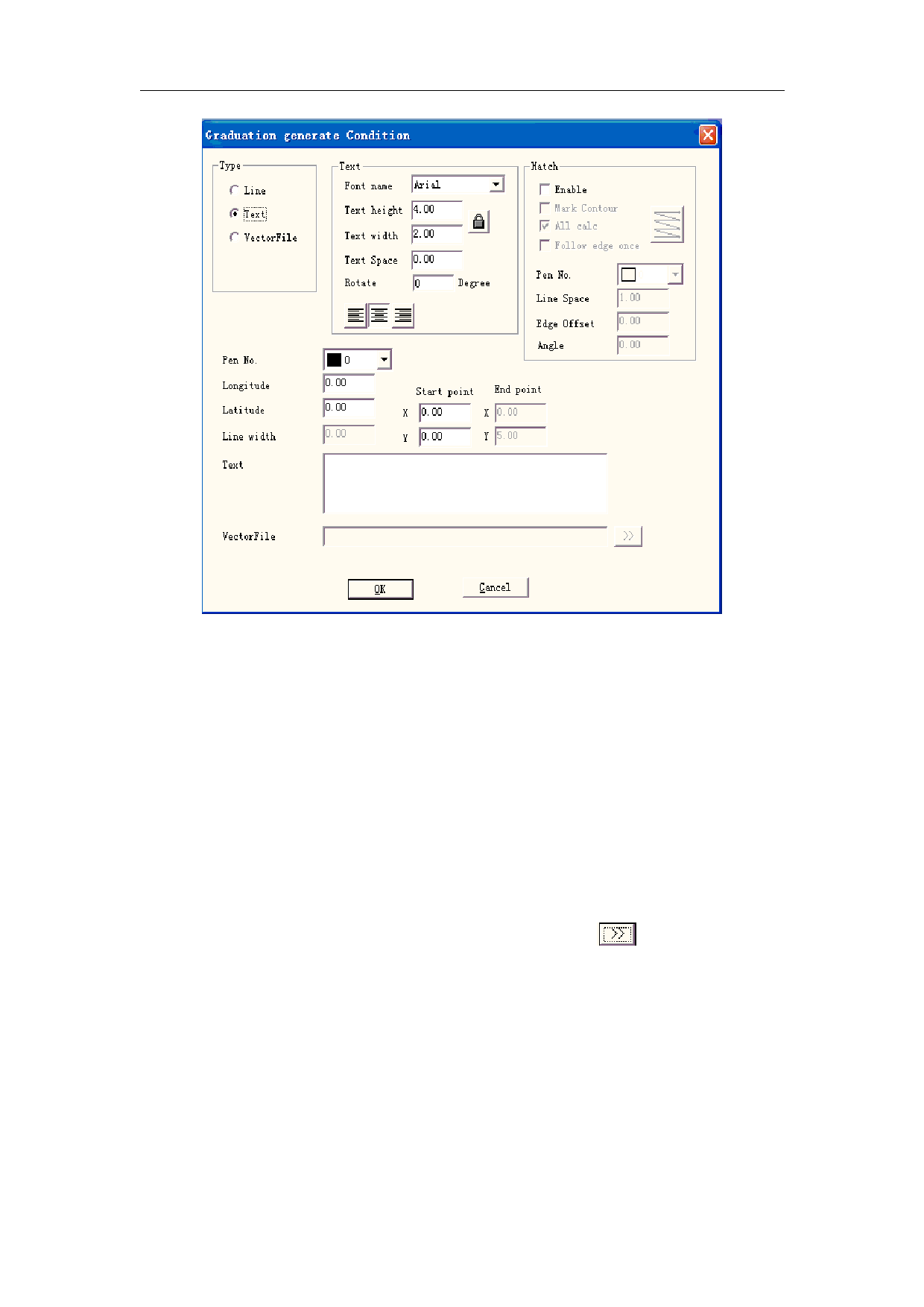

Figure 8-8
Line: The current parameter is the line parameter value
Text: The current parameter is the text parameter value
Vector File: The current parameter is the vector file parameter value
Angle: Hatch Angle stands for the angles between hatch lines and X axis
Pen No.: This item indicates that objects with selected pen’s number will be marked
Longitude: coordinates X of the text
Latitude: coordinates Y of the text
Line width: the width of the line
Start point: the start point of line’s coordinates
End point: the end point of line’s coordinates
Text: the text information show on the globe.
VectorFile: the vectorfile information show on the globe. Click “
popup shown as Figure 8-9
” then the dialog box
