Laser Engraving & Cutting Control System Manual

4.3.3 Cursor Disappear

Press ESC and the cursor will disappear instantly.

Press < > ∧ ∨ to move the laser head.

4.3.4 Laser

Press LASER to beam according to the settings of shooting;

4.3.5 Test

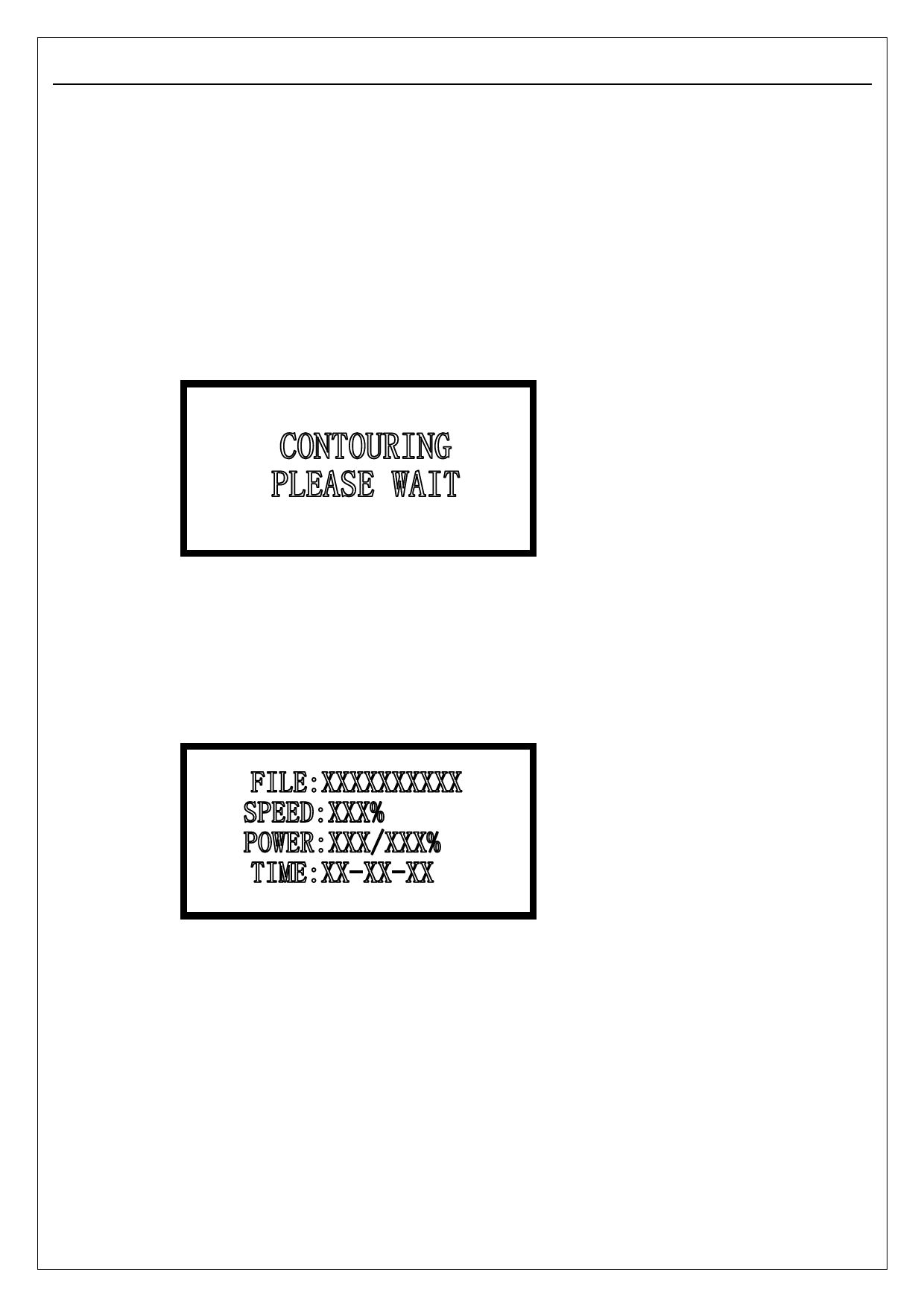

Press TEST to make contouring motion:

When contouring finished, system will return to the main interface. **IMPORTANT**: When contouring, only START

and STOP can be used.

4.4 Process

4.4.1 Process Interface

Press START to start the processing:

Parameter descriptions are as follows:

b). File: Processing the file name.

c). Speed: Percentage of the processing speed.

d). Power: Percentage of the processing power. The FIRST one is the power corresponding to LOW SPEED. The second

one is the power corresponding to HIGH SPEED.

e). Time: Processing time spent.

4.4.2 Process Control

a). During the process, only the following buttons can work: START, STOP, <, >, ∧ , ∨ :

b). These buttons: ∧ and ∨ are used to change the processing speed. Stepping=1. The value ranges from 0 to 100.

c). These buttons: < and > are used to change the power corresponding to high speed. Stepping=1. The value ranges from 0
