Chapter 8 Diagnosis Function

Ignition

Low preheat

High preheat

Low Oxygen

Medium Oxygen

High Oxygen

Torch up

Torch down

definition of output

Port

Type

Blow

THC enable

Position detect

arc starting

HoldTorch

Marker Output

Mix powder

dust preheat

Port- press PgUp/PgDn Type-press Enter

Port Type

F1 Input F2 Output F3 Axes F4 Motor F5 Option

F8 Save

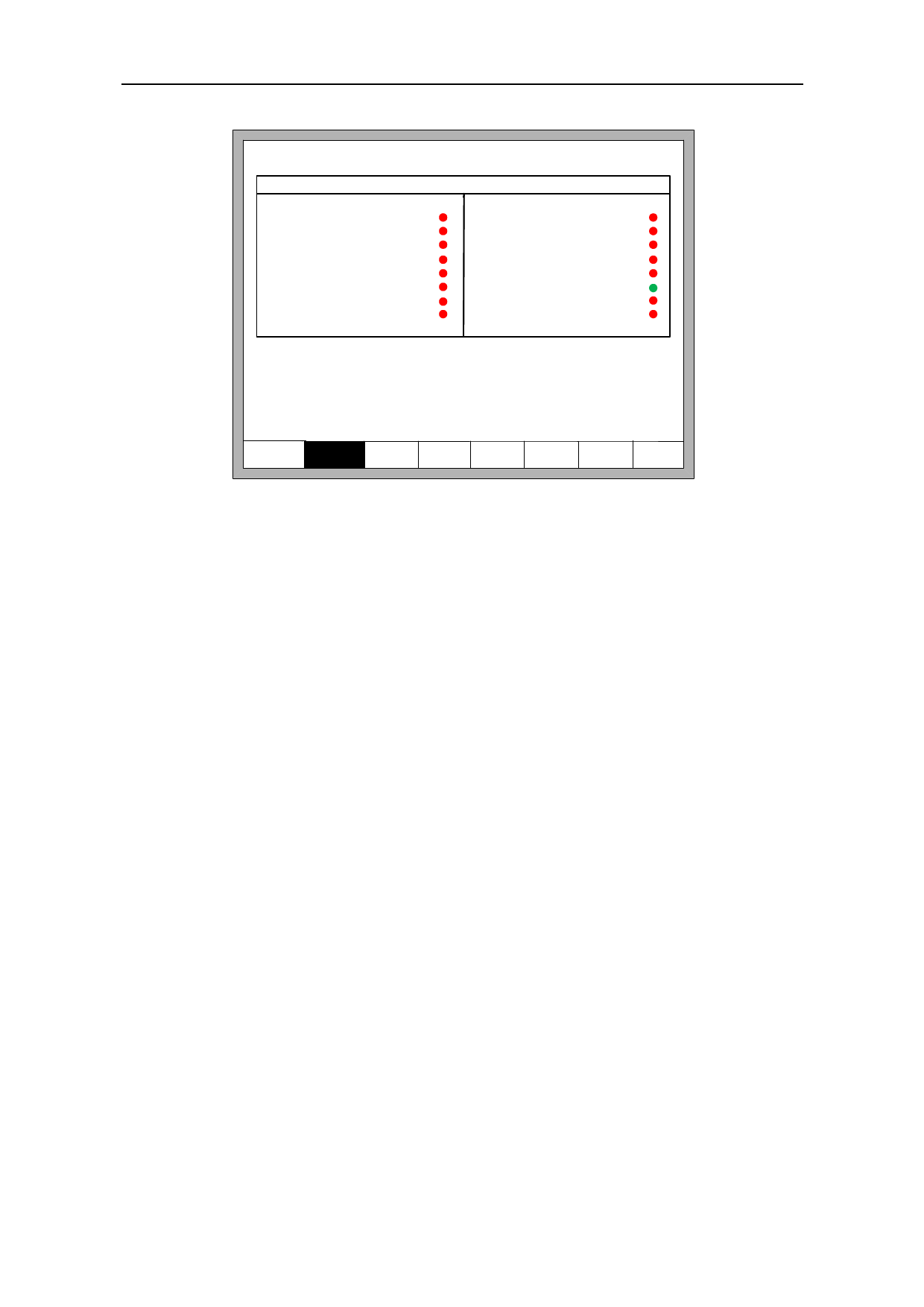

Fig 8.9 output definition

In the interface press 【↑】、【↓】、【←】、【→】, move the cursor to the position that

needs changing, press 【PgUp】or【PgDown】to change the number of the Output, press

【Enter】to change the type of the Output.

The output type is open drain transistor output type.

Type ● means that if the output signal is effective, the transistor is on. Type ●

means that is the output signal is effective, the transistor is off.

8.7.4 Coordinate Definition

The system could provide IO definition for the user. As shown in Fig 8.10
