EzCad2UNI User’s Manual

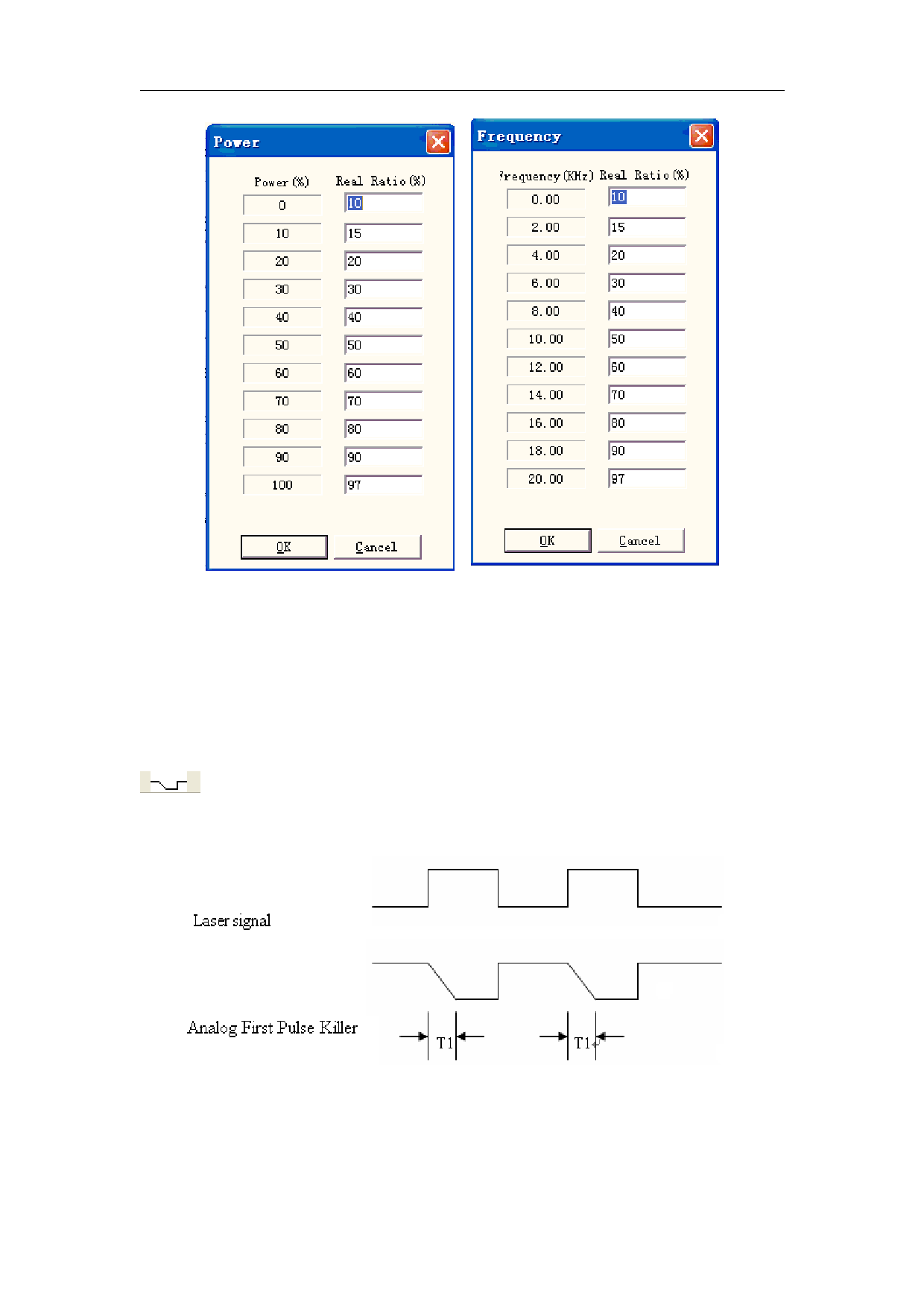

Figure 10-26 Power Map Dialog Box
Figure 10-27 Frequency Map Dialog Box
Enable Analog First Pulse Killer:
Max: Max voltage of analog FPK.
Min: Min voltage of analog FPK.
T1: Time that the FPK signal changes from Max voltage to Min voltage, or reverse.
T2: If the time gap between the laser off and laser on is less than T2, the FPK would not
output.
：The direction that the FPK changes.
About the T1 and T2 we can see figure 10-28：
Figure 10-28
