Length of Cross Point Cut length: It means the length of the Crossover line
part that we designed, as shown in Fig. 5-12. Take the following Fig. 5-13 for
example:
（a）Before Breaking Cross Point
(b)After Breaking Cross Point
（a）Before removing the intersection (b)After removal of intersections

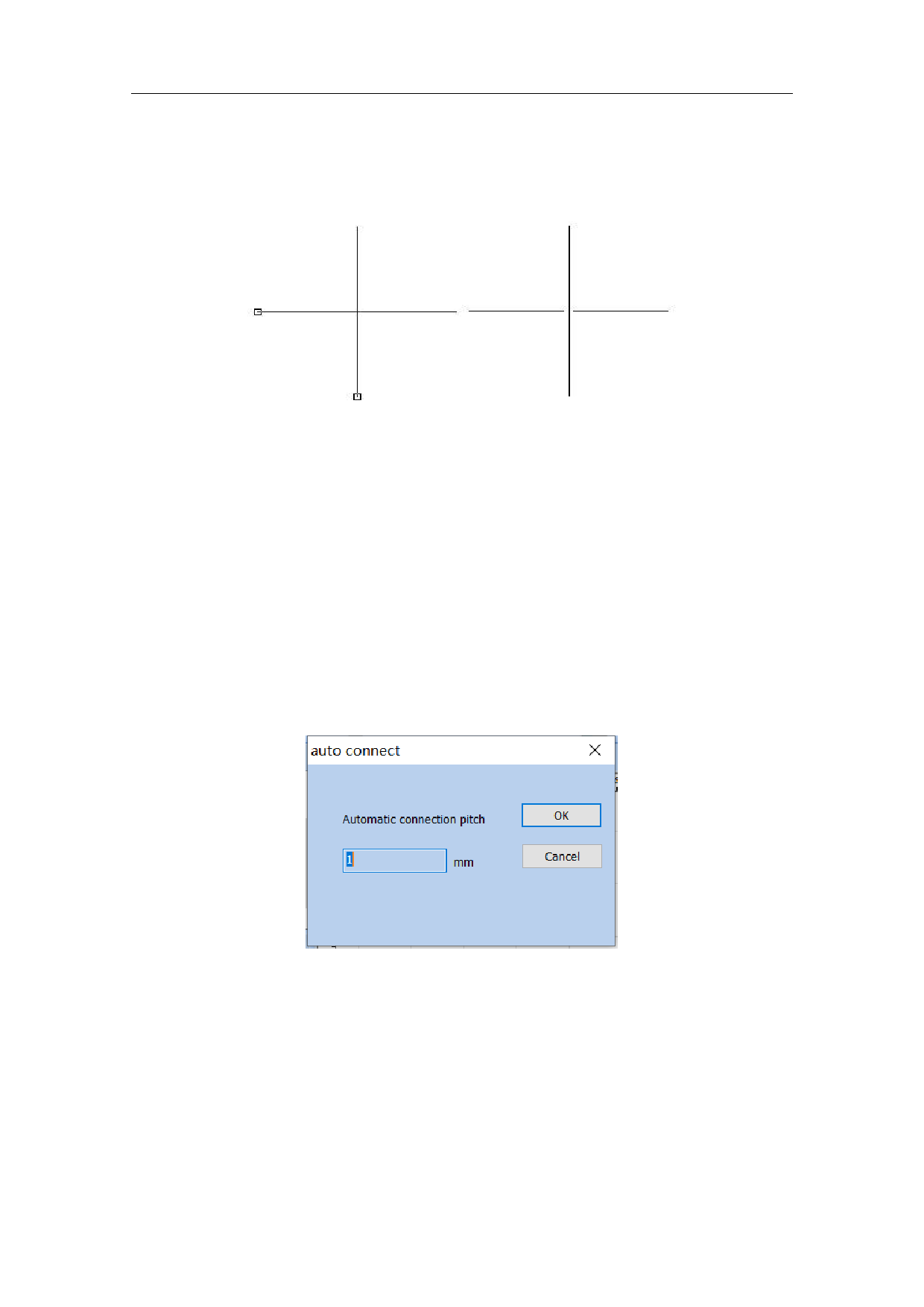

Fig. 5-13 Example of Breaking Cross Point Cut length
5.6. Auto-Connect
When selected, a dialog box will appear as shown in Fig. 5-14.
Auto-Connect Error Automatic connection pitch: If the distance between
two curves’ starting and ending points is less than the parameter set, the two
curves will be jointed into one.
Fig. 5-14 Auto-Connect Dialog Box
Automatic connection pitch
