information is carried by different widths and positions of bar and space, and
the information volume is decided by the width and the precision of barcode.
The wider the barcode is, the more bars and spaces are included, and the
more information is carried. This kind of barcode technology can store
information in only one direction through permutation and combination of bars

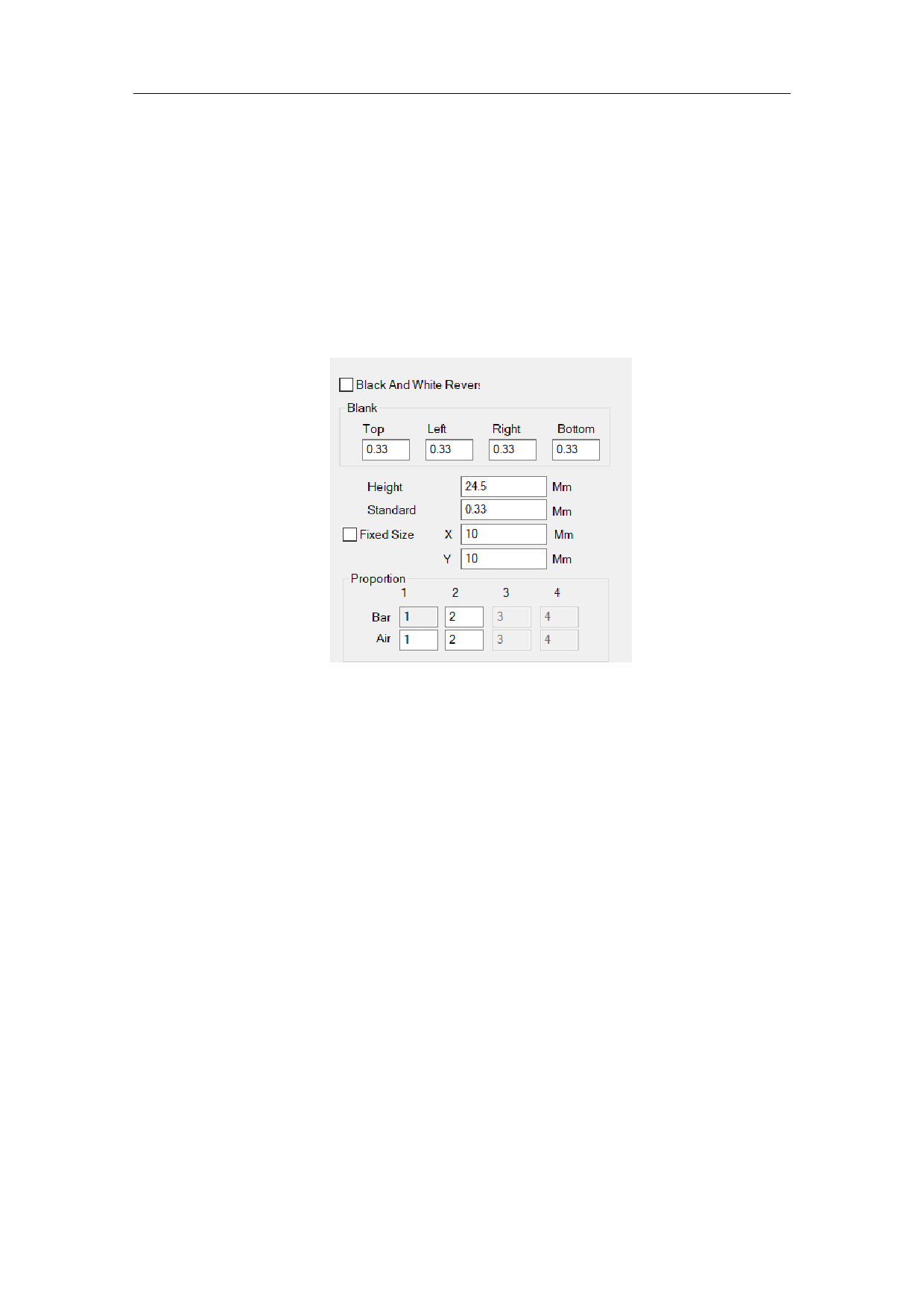

and the spaces, so it is called one-dimensional barcode. Fig. 4-20 shows the
parameter setting in the window when a one-dimensional barcode is selected.
Fig. 4-20 One-dimensional Barcode Parameters
Black and white Invert
Blank
Top
Left
Right
Bottom
16.170 Barcode Height 16.170mm
4.53883 Standard Module Width 4.53883mm
Scale
Bar
Space
Black and White Invert Reversa: determines whether to invert the marking.
This function is used for some materials which are light-colored after marking.
